Supports a 32-bit 5 V PCI Express bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 2 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)

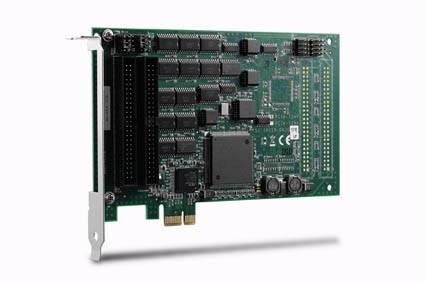

DIO48CTC-PCI-E (ADLINK"s PCIe-7248) are high-density parallel digital I/O boards with 96/48/24 I/O channels. The header connectors are fully compatible with industry Opto-22 standard. Thus, DIO48CTC-PCI-E can utilize the Opto-22 external devices. The DIO48CTC-PCI-E devices emulate mode 0 of the industry standard 8255 programmable peripheral interface (PPI) chips. The DIO48CTC-PCI-E provides 2 PPI chips respectively. Each PPI offers three 8-bit ports: Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports. The DIO48CTC-PCI-E devices have programmable timer/counters. One 16-bit counter is available for event counting, while the other 32-bit timer is available for timed interrupt generation. The DIO48CTC-PCI-E devices provide multiple programmable interrupt sources from DIO channels, as well as the output of the timer.
280 VAC 120 A solid state relæ til panelmontering
280 VAC 20 Amp halv-leder-relé
Flens-monterings
KUN for vekselspenning
Adlink DIN-50P-01
Terminalkort
Innebygd kontakt
1 x 50-pin SCSI II
103 x 85 x 43 mm (B x L x H)
Flat kabel
2 x IDC50 hun kontakt i hver ende
Grå
1,5m
16 optoisolerte inngange, felles stel (minus) og 16 optoisolerte utgange,
Støtter en 32-bits 5 V PCIe Express-buss - LAVPROFILKORT
16-CH isolerte digitale innganger
16-CH isolerte digitale utganger - Open-Collector
5000 VRMS optisk isolasjon
Senkstrøm opp til 500 mA på hver isolert utgang
PCI Express-kort med 96 TTL I/O-kanaler og 3 tellere
X1 PCI Express-grensesnitt
96-CH digitale TTL/DTL innganger/utganger
Emulerer 4/2/1 industristandard 8255 PPI (modus 0)
Direkte grensesnitt med OPTO-22-kompatible I/O-moduler
Utgangsportstatus leses tilbake
Ombord 8254 timer/tellerbrikke
Programmerbar avbruddskilde
Støtte Windows 7/8 X64/X86 og Windows 2008 R2
2-Port 10/100 / 1000T 802.3at PCI Express
PoE + (60W)
Intel I350AM2 Controller
2 x RJ45
Dimensjoner: 169 x 121 x 19 mm
Vekt 161 g
Driftstemperatur temperatur: -10 ~ 60 C
Støtter en PCI Express x1, Plug and Play (PCIe-7256)
16-CH låsende SPDT-reléutganger
Strømsparing ved relémanøvring
Utgangsstatus uendret når strømmen er slått av - LED-indikatorer for reléstatus
16-CH isolert DI
Bytte av status (COS) avbryt
Styrings ID
