RS232 PCI Express Kort

Two 16550 High performance UART (RS232) serial channels
Occupies one PCI or PCIe bus slot
Low Profile PCI Form Factor
Includes Low Profile PCI & Regular size PCI two brackets
Both USB A type and USB pin header connector on board to host connection
One RS232 DB9M and one RS232 10pin RJ45 serial ports on board
Includes one 10pin RJ45 – DB9M Bridge cable for 2nd DB9M port
5VDC Power output from each DB9M Port for POS device use application
2 Jumpers Individually enable / disable 5VDC output for each DM9M Port
On Board Molex mini 4Pin Power connector for sufficient DB9M 5V bus power from PC power supply
Supports 32bit/64bit Windows 7, Vista, XP, 2000, ME, 98SE

4 x RS232 porte på fuldlængde Mini PCI Express x1

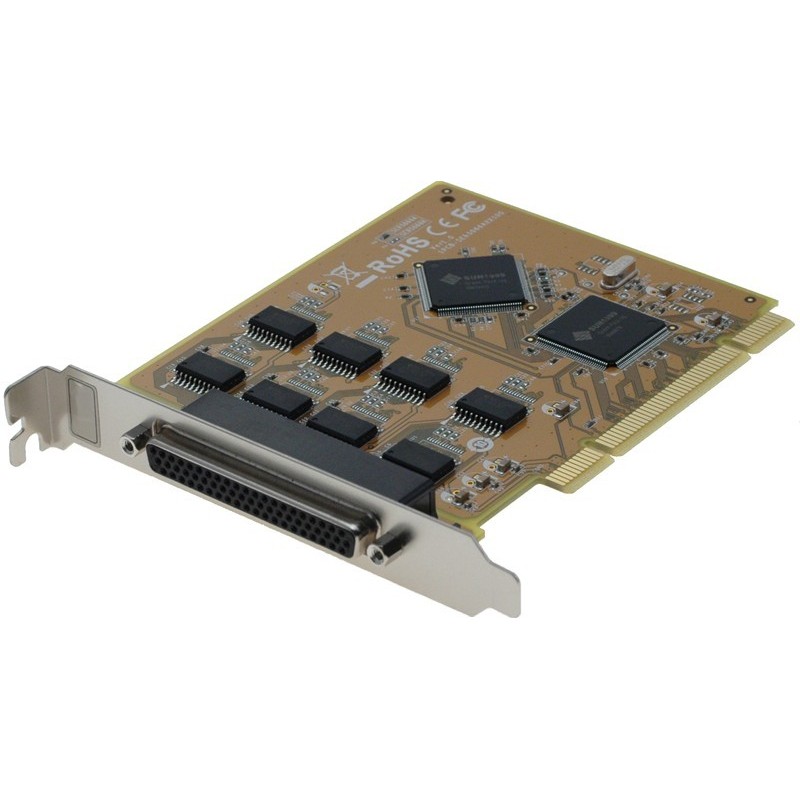

8 RS232 serielle porte, 3,3 og 5 V PCI bus

• PCI Express x 1, 2x RS232, RS422/485
• RS485 ART (Automatic Receive Transmit control), RS485 in 3 operation modes
• optical isolation, surge protection (also in RS232), Compact board size (half-size)
• Built-in termination resistors
