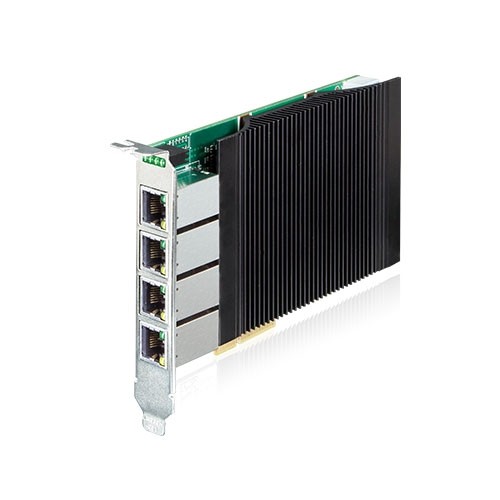

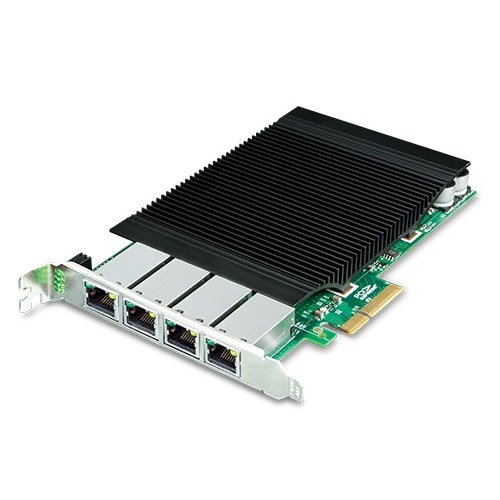

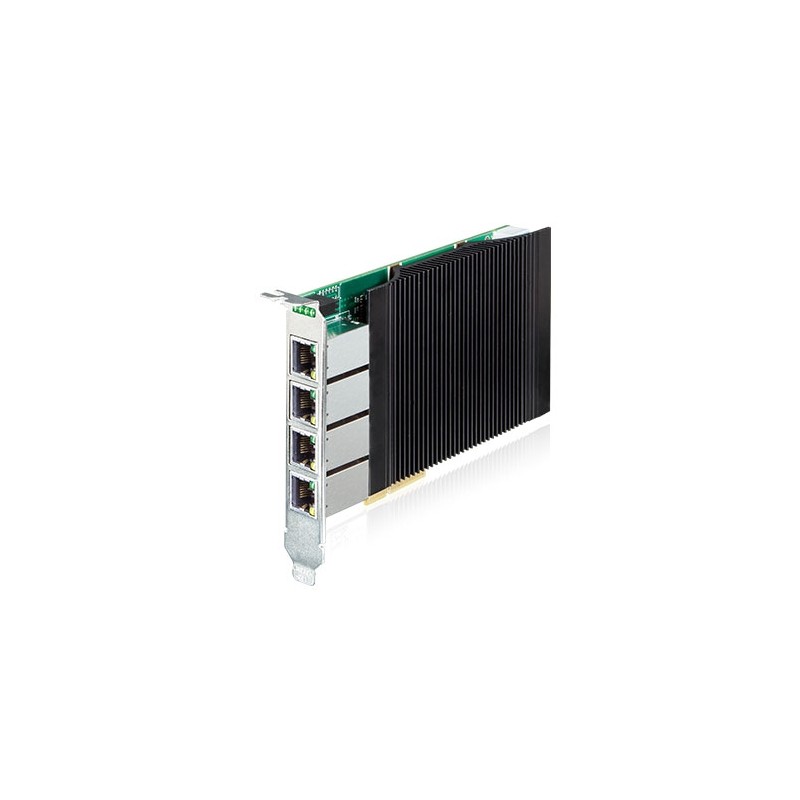

4-Port 10/100 / 1000T 802.3at PCI Express
PoE + (120 W)
Intel I350 Controller til 4 x RJ45
Dimensjoner: 169 x 121 x 18 mm | Vekt 251 g
Driftstemperatur temperatur~~POS=HEADCOMP: -10 ~ 60 C
Moxa NP21103
DB25(M) Termininal Block Kit for RS-422/485
100KHz 16Ch Analog Input A/D Card - High Gain.
16 Single-Ended or 8 Differential Analog Input Channels
Bipolar or Unipolar Input Signals
Programmable High-Gain x0.5, x1, x5, x10, x50, x100, x500, x1000
12-Bit Successive Approximation A/D Converter (AD774 or equivalent)
On Chip Sample & Hold
Two 12-Bit Analog Output Channels
16 Digital Inputs and 16 Digital Outputs
Integral DC-to-DC Converter for Stable Input Operation
37-Pin D-Sub Connector
Compact Size - only half-size PCB
Isolationen beskytter både computer og måleresultaterne mod fejl, grundet forskelle i stelpotentialer.
Supports a 32-bit 5 V PCI bus
12-bit A/D resolution
Up to 100 kS/s sampling rate
32-CH single-ended or 16-CH differential inputs
On-board 1 k-sample A/D FIFO
Bipolar or unipolar analog input ranges
Programmable gains of x1, x10, x100
Automatic analog inputs scanning
8-CH timers/counters
2-CH cascaded 32-bit timer with 1 MHz base clock
On-board multiple base clocks ranging from 100 kHz to 2 MHz
External gate control and clock inputs for each counter
Inverted gate signals for 4-CH synchronized frequency measurement
Multiple interrupt sources from counter outputs, timer outputs and external interrupt inputs
