Seriel konverter RS422/485 isoleret

Seriel konverter RS422/485 isoleret
  • Seriel konverter RS422/485 isoleret

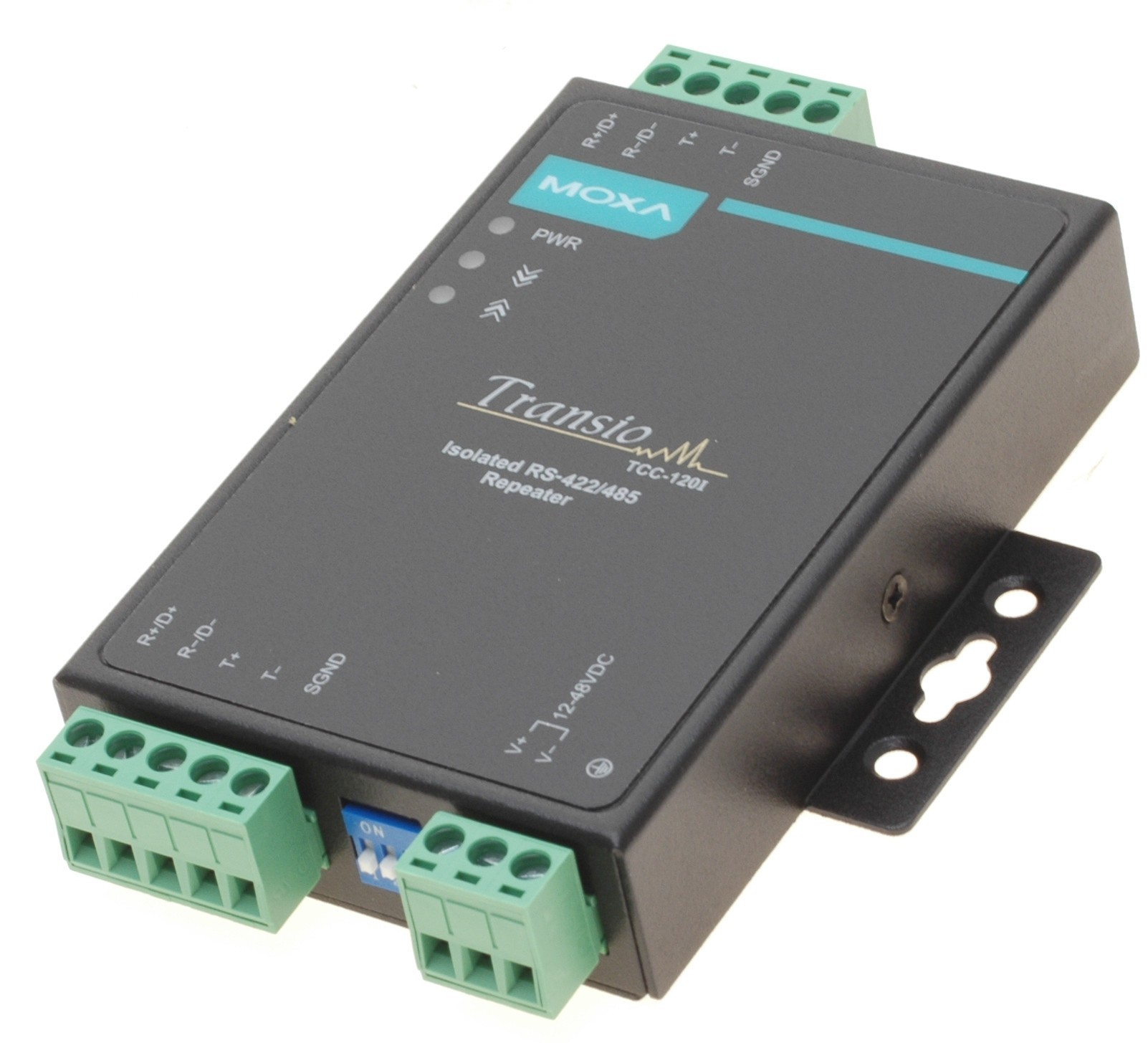

Industrial RS422/RS485 Serial Converter/Repeater with 2 KV Isolation, MOXA TCC-120i

Boost serial signal to extend transmission distance
Boost RS422 or RS485 signal, or convert RS422 to RS485
2 KV optical isolation protection
15 KV serial ESD protection

Wall or DIN-rail mounting

Terminal block for easy wiring

Power input from terminal block
DIP switch setting for built-in terminator (120 ohms)

CNV422I485M+
3 975  NOK
Eksklusive MVA
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Serial Communication
Connectors: Terminal Block on both ends
Baudrate: 50 bps to 921.6 kbps
Signals: RS-422/485-4w: TxD+, TxD-, RxD+, RxDRS-485-2w:
Data+, DataRS-485
Data Direction Control: ADDC® (automatic data direction control)
ESD Protection: 15 kV for all signals
Optical Isolation: 2 kV (TCC-120I only)

Physical Characteristics
Housing: Metal
Dimensions: 67 x 100.4 x 22 mm
Weight: 148g

Environmental Limits
Operating Temperature: -20 to 60°C
Storage Temperature: -20 to 75°C
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements
Source of Power Input: Power input jack
Input Voltage: 12 to 48 VDC
Power Consumption: 180 mA @ 12 V

Voltage Reversal Protection: Protects against V+/V- reversal
Over Current Protection: Protects against two signals shorted together
