Omformer fra RS232-RS422/485. Industriel RS232 til RS-422/485 konverter

Optoisoleret RS232 adapter, maks. 115,2 kbps, automatisk flow control, DB9 stik

Optoisolerede RS232 til RS422/485 konverter
3000Vdc isolation
24Vdc, 1.2W
RS-232 (DB9)
RS485 (2-Wire) eller RS422 (4-Wire)
Speed (bps): 1.200, 2.400, 4.800, 9.600,
19.2 k, 38.4 k, 57.6 k, 115.2 k
RTS control and RS-422 (switchable)

RS232-RS422/RS485 konverter
Op til 115,2 kbit/s
Afstand: Op til 1,2km på RS422/485. op til 15 m på RS232
Forsyning: 9 VDC, 100mA, strømforsyning medfølger
Stik: RS232:DB25F,
RS485: Skrueterminal og RJ11

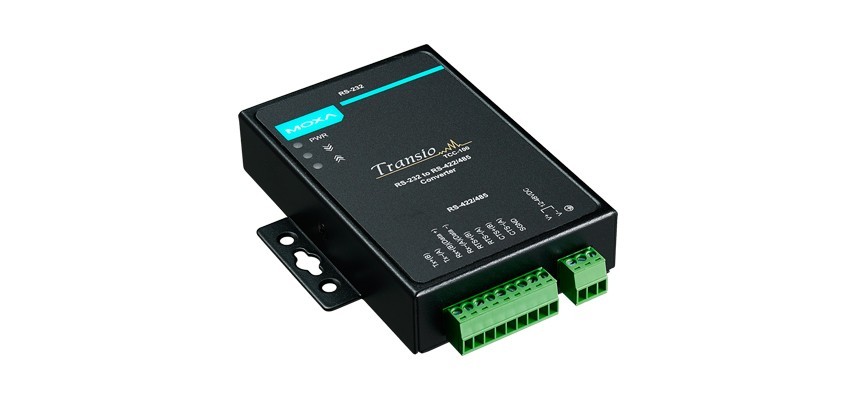

Industrial RS232 to 422/RS485 Serial Converter/ Repeater with 2 KV Isolation, MOXA TCC-100i

RS-232 to RS-422 conversion with RTS/CTS support
RS-232 to 2-wire or 4-wire RS-485 conversion
2 KV isolation protection (TCC-100I/TCC-100I-T)
Wall and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
-20 to 60°C operating temperature
