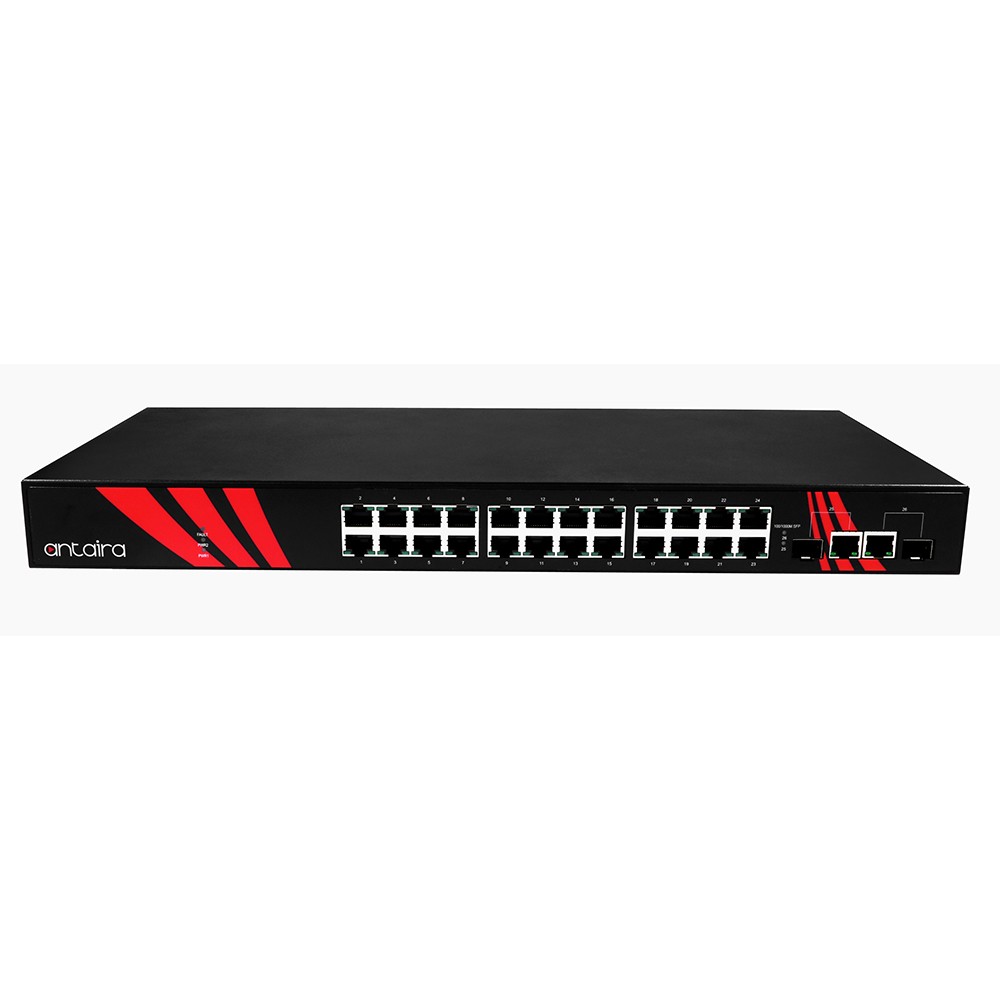

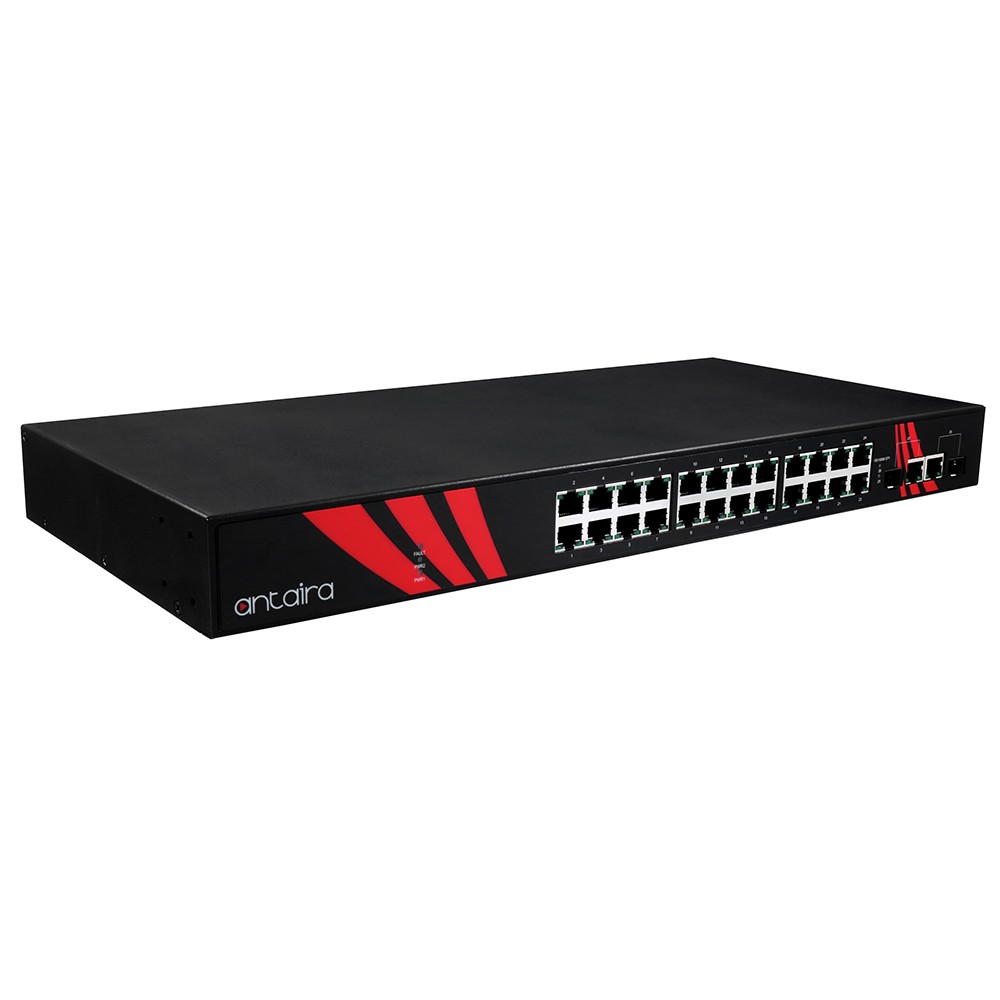

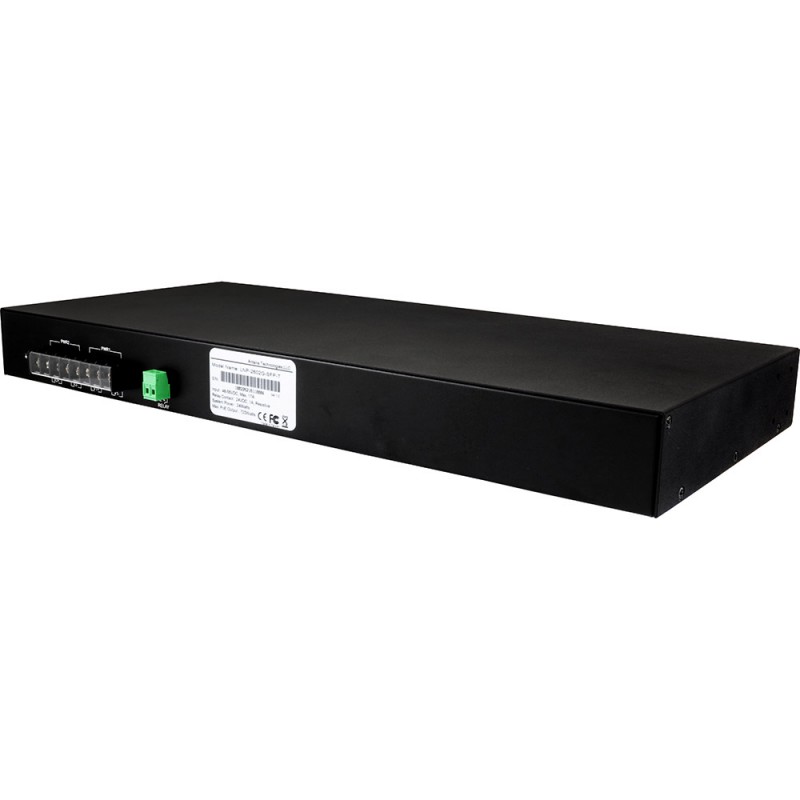

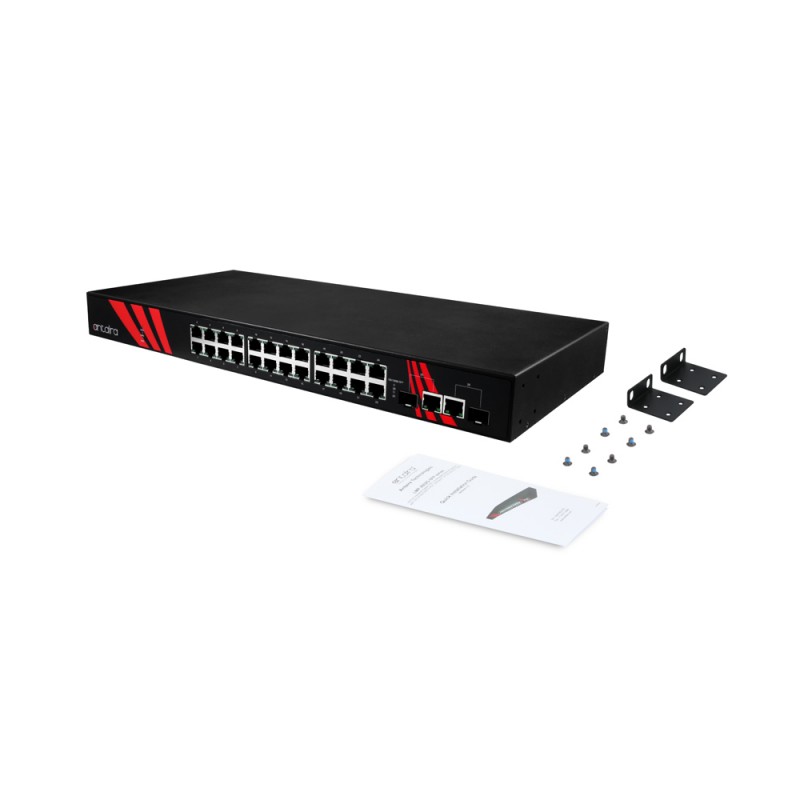

26-Port Industrial 1U 19 "Rackmontert PoE + Gigabit Ustyrt bryter, Utvidet temperatur 40 ° til 75 ° C

24 x 10/100 / 1000Tx RJ45 (30W / port) IEEE 802.3at PoE + 2 x Gigabit-kombinasjon (2 x RJ45, 2 x FTP)
Auto MDI / MDI-X Funksjon
butikk -and-Forward Switching Architecture - 8K MAC-adressetabell
9.6Kbytes Jumbo-ramme
Overspenningsvern: 2000 VDC
ESD-beskyttelse: 6000 VDC
Strømforsyning: 48 ~ 55VDC
Innebygd reléutgang for strømbrudd
1U 19 "Rackmonteringsdesign
Driftstemperatur STD: 40 ° til 75 ° C

ANR-LNP-2602G-SFP-T
25 332  NOK
Eksklusive MVA
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Approval
EMI: FCC Part 15 Subpart B Class A, CE EN 55022 Class A, EMS: IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
Buffer
4Mbits
Chok/Vibration
IEC60068-2-32, IEC60068-2-27
Dimensioner
440 x 44 x 200mm
Driftstemperatur
EOT: -40° to 75° C
Ethernet
24*10/100/1000Tx RJ45 (w/24*PSE: 30W/Port)
Fiber
Combo porte: 2*RJ45 Ports w/10/100/1000Tx Ethernet and 2*100/1000 SFP Slot
Luftfugtighed
5% to 95%, (non-condensing)
Montering
1U 19” Rackmount
Netværk
10BaseTx: UTP/STP Cat. 3,5 100BaseTx: UTP/STP Cat. 5 1000BaseTx: UTP/STP Cat.5/5e/6
PoE
30 Watts max. per PoE port
Protokol
CSMA/CD
Relæ
24 VDC, 1A resistive
Standarder
IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3af/at Power over Ethernet
Strømforbrug
24 Watts for System
Strømforsyning
48-55VDC
