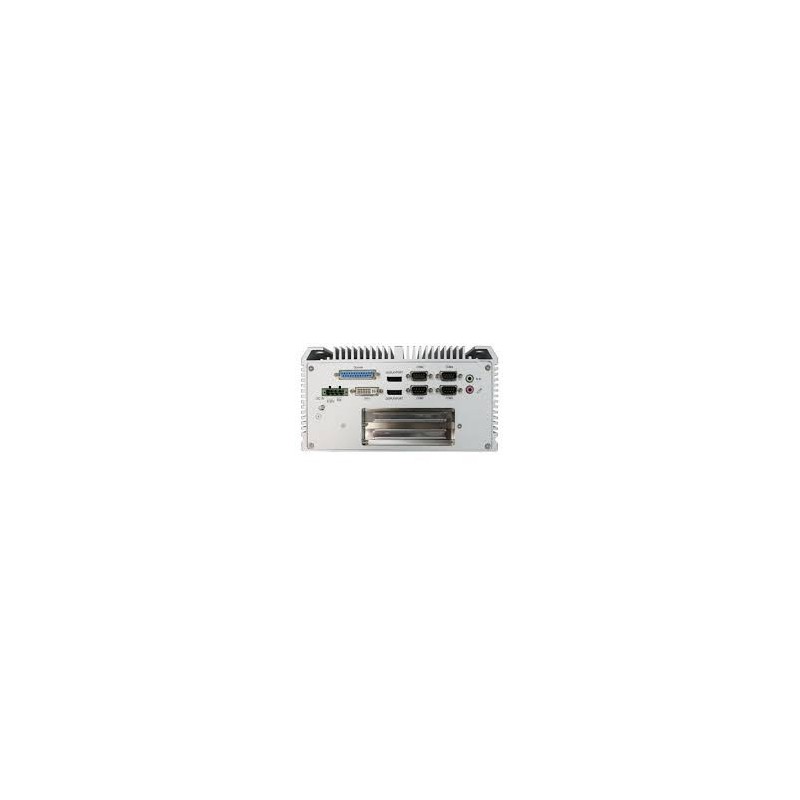

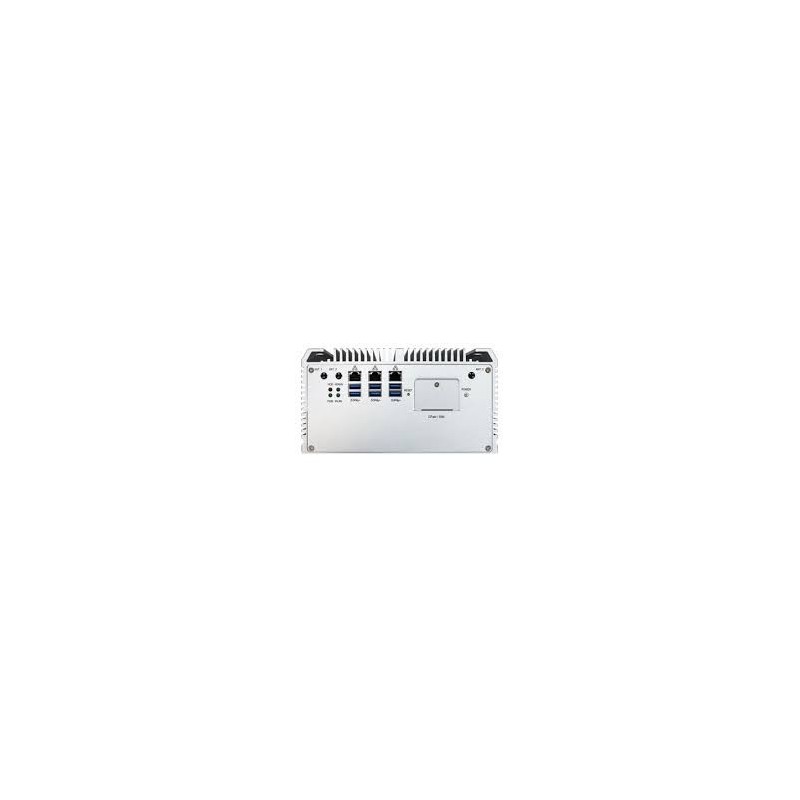

Industriel BOX PC med 2 x PCIex udvidelse. Intel i7/i5/i3 Haswell

Fanless Design
Wide Range DC Power Input (9~36V)
iAMT supported
Triple Independent Displays (DVI-I + DisplayPort*2) supported
Optional WiFi or HSUPA Wireless Connectivity supported
Rugged Design for Shock / Vibration Protection Memory Support up to 16GB (DDR3)
RAID 0,1 Supported

IPC-I5-2PCIEX
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

"Build To Order" leveres med ønsket CPu,RAM og Harddisk. Kontakt salgsafdelingen vedr. levering.
Andre modeller og løsninger kan tilbydes.

CPU
4th Generation Intel® Core™ i7/i5/i3 or Haswell Processor in LGA1150 socket
Chipset
Intel® Q87
Chok/Vibration
Vibration 3 Grms/5~500Hz/random operation w/ SSD Shock Operating 40G (11ms), Non-operating 60G with SSD
Dimensioner
225 x 267 x 120 mm
Driftstemperatur
-20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow
Forsyning
DC 9~36V input w/ 4-pin terminal block
Grafik
Integrated Intel® HD 4600 2 x DisplayPort female connector for Digital Video output 1 x DVI-I female connector for Digital/Analog Video output
Hukommelse
2 x 204-pin DDR3 SO-DIMM sockets, supporting 1600MHz SDRAM up to 16GB
I/O
1 x DB25 connector for 1 x DIO (8 in/8 out) port or 1 x LPT port (either one) DIO by default, can be changed to LPT
Ledige Slots
1 x PCIe x 16 slot1 x PCIe x8 slot (via x 4 lanes)
Luftfugtighed
10 ~ 95% @ 55°C (non-condensing)
Materiale
Aluminum alloy
Montering
Wall-mount
Netværk
3 x RJ45, 1 x Intel® i217LM GbE PHY w/ iAMT 2 x Intel® i210IT GbE
OS SUPPORT
W7 Pro / WS7E / WE8 STD
Porte
COM1/ COM2 RS-232/422/485 Selectable COM3/COM4 RS-232
SATA
2 x Serial ATA ports with RAID 0/1 support
Strømforbrug
Max.75W( w/o I/O Card)
USB
6 x USB 3.0/ 2.0 ports Internal USB dongle ( Optional)
Vekt
7 kg (15.43 lb)
Watchdog
1~255 levels reset
