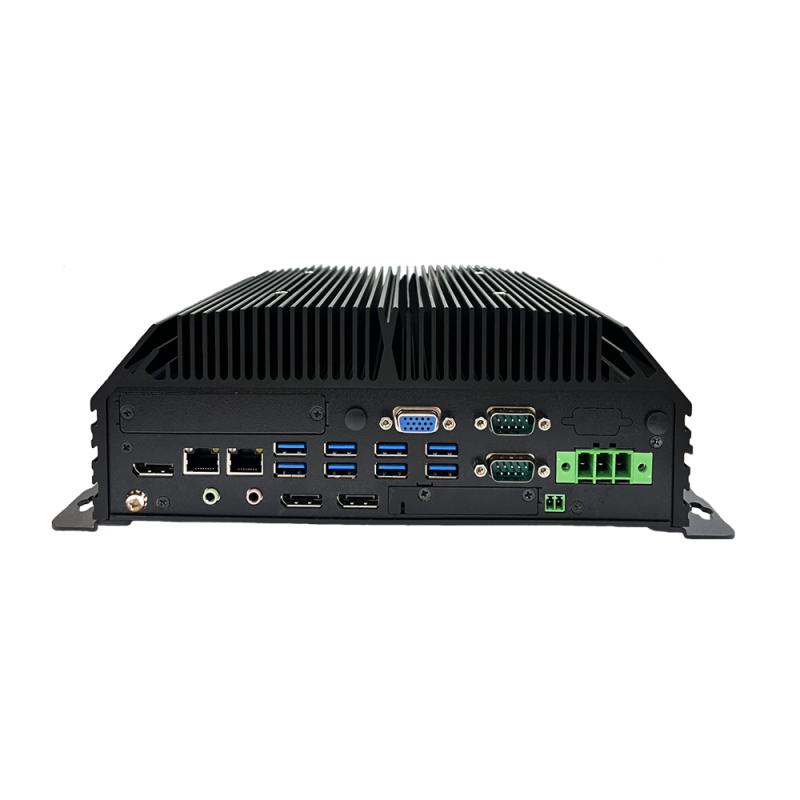

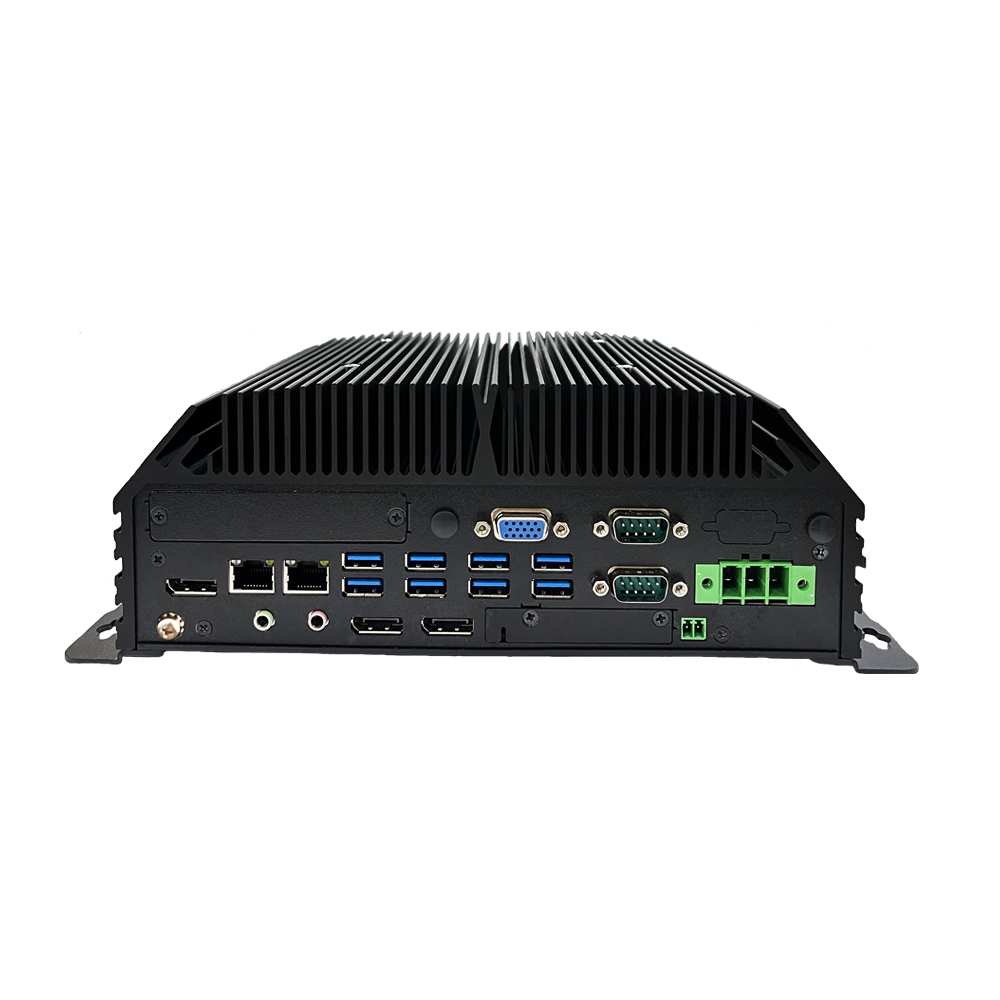

Vifteløs innebygd PC Gen. 13/12 LGA1700, 2x2,5 Gbe, 3xDP, 1xVGA, 9~48V DC, -40°C ~ 70°C, 9xUSB3.2, 6xRS232/422/485 RAID

Intel Gen. 13/12 LGA 1700 35W prosessorkjerne/Pentium/Celeron
Intel R680E
TPM 2.0
Maks. 64 GB RAM
Quad-skjerm: 1xVGA (1920x1200), 3xDP 4096x2160), (3xHDMI 4096x2160 ved spesiell forespørsel)
9 x USB3.2 (Gen.2)
6 x RS232/422/485
2 x 2,5 GbE Intel i226-IT
4 x GbE Intel i350-AM4 eller 4 x GbE POE+ (utvidelsesmodul på forespørsel)
Lydlinje inn/ut
8 x isolert DI og 8 isolert DO (2 x 9-pins rekkeklemme)
2x 2,5" Sata III
2 x M.2
2 x SIM-uttak
-40°C ~ 70°C
240x200x88mm
9-48V DC-inngang med tenningskontroll
CE/FCC klasse A
OS-støtte: Windows 10 IoT, Windows 11 (IoT/Professional), Linux

EPC-GEN13-9U6S2E3DP
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
13th/12th Gen Intel® Core™/Pentium®/Celeron® 35W LGA 1700 Processors,
Chipset
Intel® R680E
Annen
with Ignition Control,
BIOS
AMI 256 Mbit SPI Flash
Antenne
4x Antenna Hole
Chok/Vibration
Vibration 5Grms, 5-500Hz, 0.5hr/axis Shock 50G, Half-sine 11ms
Digital I/O
8 x Isolated DI and 8 x Isolated DO, 2 x 9-pin Terminal Block
Driftstemperatur
AT
Ethernet
2 x 2.5GbE Intel® i226-IT, RJ45, (4 x GbE Intel® i350-AM4 or 4 x PoE+ Intel® i350-AM4 optional IO)
Grafik
3 x DP, 1 x VGA (3xHDMI optional contact sales)
Indgangsspænding
9-48V DC Input with Ignition Control,
Luftfugtighed
10% ~ 90% (non-condensing)
Lyd
1x Line-out, 1x Mic-in
Montering
Wall Mount (Additional Mounting Kit)
OS SUPPORT
Windows 10 IoT, Windows 11 (IoT/Professional), Linux
RAID niveau
RAID 0/1/5/10
SIM kort
2 x Mini-SIM Holder
USB
9 x USB 3.2 (Gen2)
Vekt
3.9 kg
Protection
Over Voltage Protection (OVP) up to 52V Over Current Protection (OCP) up to 20A Reverser Voltage Protection (RVP) up to -48V

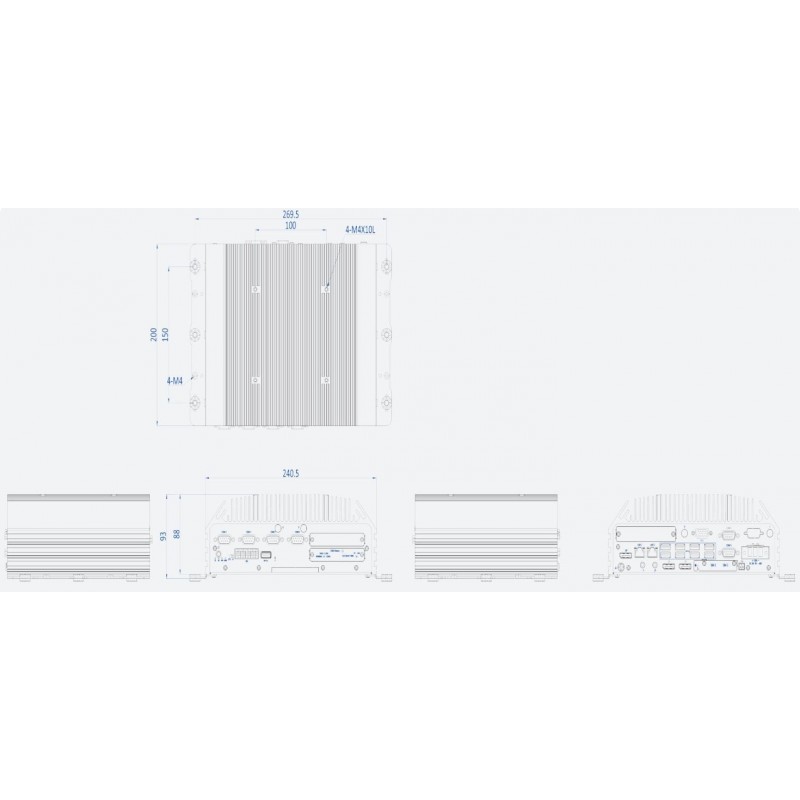

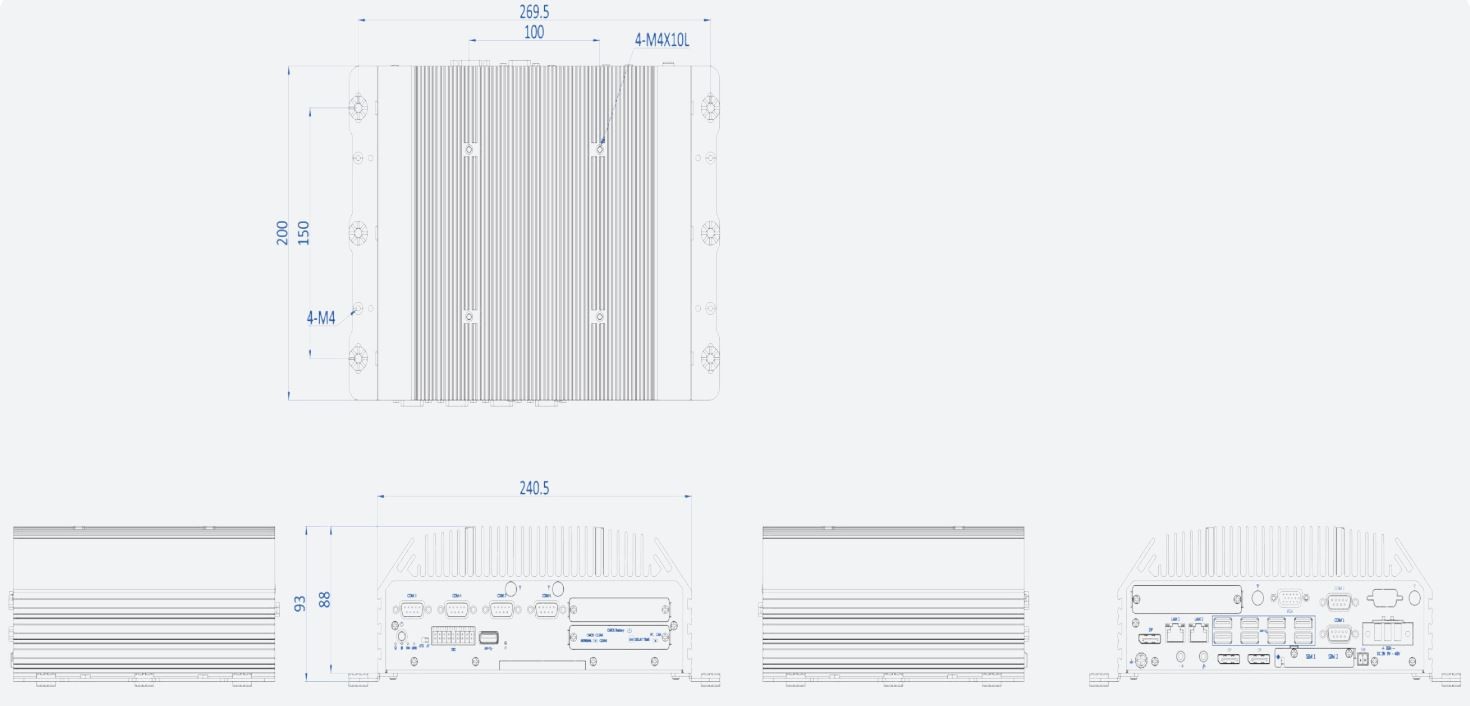

Dimension
240 x 200 x 88mm, (
Certification
CE/FCC Class A
Material
Aluminum & SECC
Serial Porte
6 x RS232/422/485
RAM
2 x 262-PIN SO-DIMM Dual Channel DDR5 4800/5600 (ECC and Unbuffered) Max. 64GB
Display
Multi Display 4, VGA, 3xDP
Expansion
M.2
