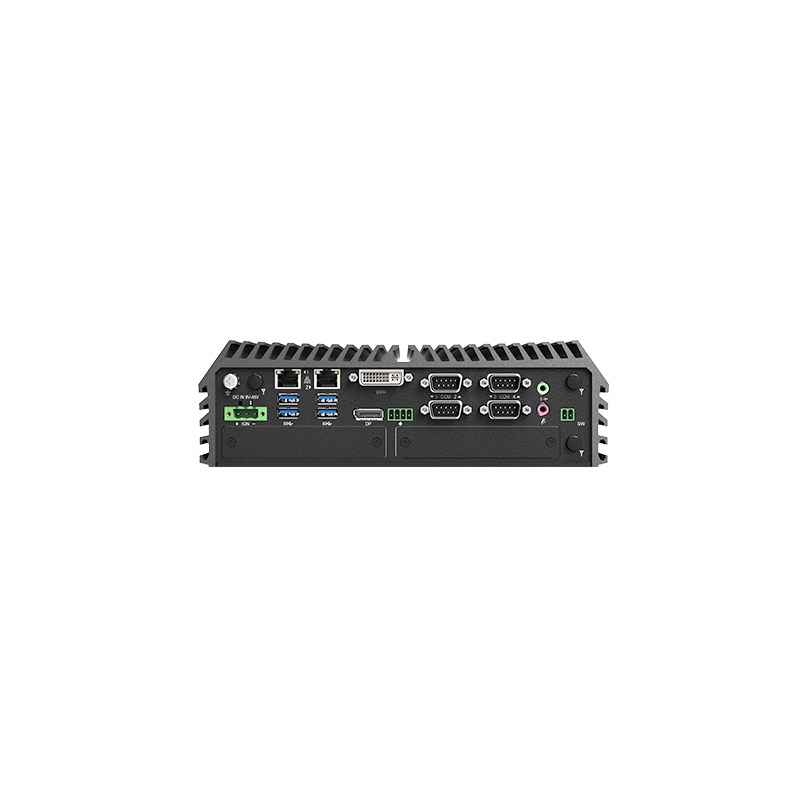

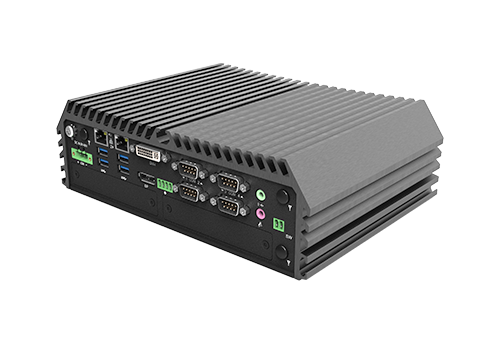

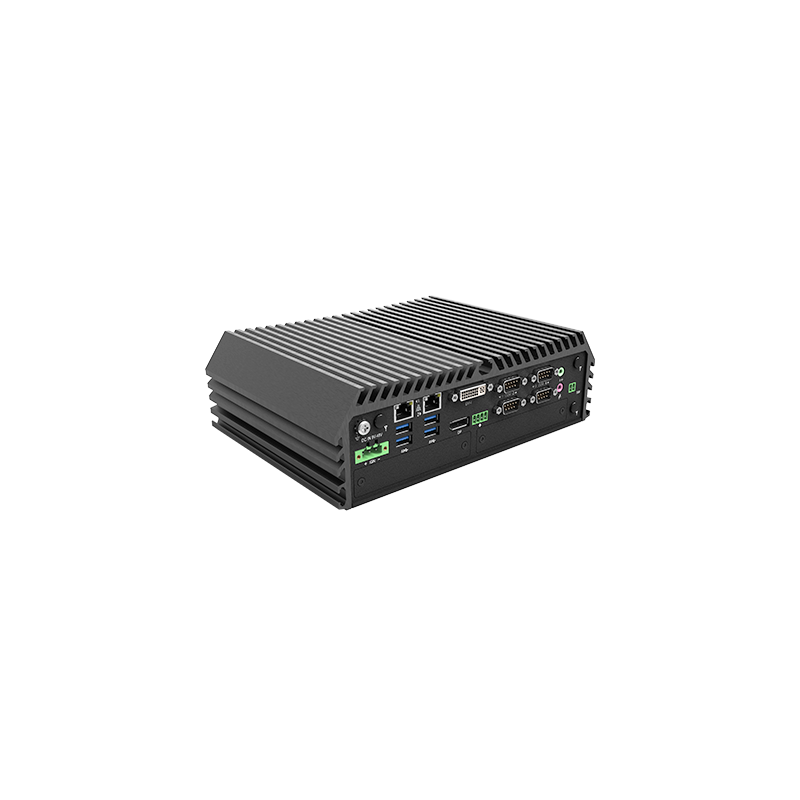

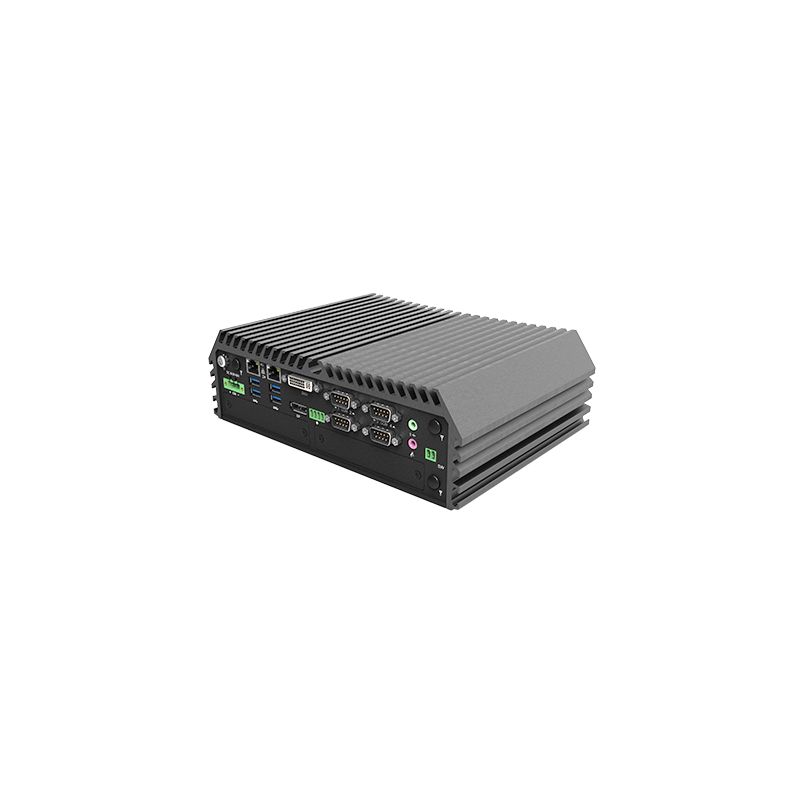

Kraftig og kompakt embedded PC for 12. generasjons Intel® CPU (MAX 65W TDP)

Intel® 12. generasjons Alder Lake-S Core™ i9/i7/i5/i3-prosessorer (maks. 65 W TDP)
2 x DDR5 SO-DIMM Opptil 64 GB RAM
HDMI / DP / DVI-I
2x 1GbE LAN
4x RS-232/422/485
2x 2,5" SATA HDD/SSD-brønn
1x M.2 Key E Type 2230 Sokkel for Intel CNVi / trådløs modul
Alternativ: I/O-modulutvidelse
Alternativ: Power Ignition Sensing & PoE-funksjon
DC-inngang 9 - 48VDC, 3-pinners terminalblokk
Bred driftstemperatur -40°C til 70°C
Jernbanegodkjent
Sertifisering: CB, IEC, EN 50155 (kun EN 50121-3-2)

EPC-GEN12-WT
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
Chok/Vibration
MIL-STD-810G
Dimensioner
242 x 173 x 75 mm
Driftstemperatur
• 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
Forsyning
9 - 48VDC, 3-pin Terminal Block
LAN
2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE)
Montering
Wall / DIN-RAIL / VESA / Side Mount
Msata
2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
RAID niveau
Support RAID 0/1/5/10
USB
4x 10Gbps USB 3.2 Gen2, Type A, 4x 5Gbps USB 3.2 Gen1, Type A
Vekt
3.05 kg
Serial Porte
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
RAM
2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
