Intel® 12th / 13th Gen CoreTM Fanless Edge AI-datamaskin som støtter Nvidia® RTX-A2000 m/2x10G POEer

Vifteløs design (innebygd varmerør kjøleløsning)
12./13. generasjons CoreTM i9/i7/i5/i3-prosessor (Alder Lake-S/Raptor Lake-S)
Opptil 60W GPU MXM-modulutvidelse
802.3af (15.4W)/802.3at (25.5W) Gigabit PoE-porter
DP x2 + HDMI x 1 og DVI x 1 (støtter 4 uavhengige skjermer)
Strøm på/av forsinkelseskontroll / konfigurerbar tenningsstrømkontroll
Støtter TPM 2.0 og Time-Sensitive Networking (TSN)
To-mPCIe for valgfri WiFi/3G/4G/GPS eller I/O-utvidelse støttes

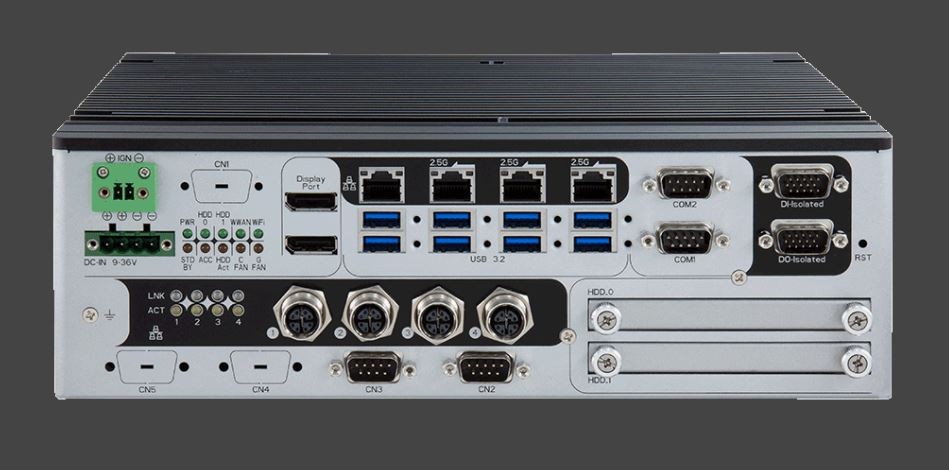

Fronttilgjengelig I/O
1 x M.2 B for lagring eller 5G / LTE +1 x M.2 E-nøkkel for WiFi / BT
1 x M.2 M for NVMe SSD
285x230x 90 mm (9,84" x11,50" x 3,54"), vifteløs 285x230x110 mm (9,84" x11,50" x 4,33"), m/ FAN
DC 9~36V inngang
CE, FCC klasse A, E-merke

EPC-IXG13-2D1HD4G10G
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
i9/i7/i5/i3
Intel® 12th/13th Gen Core™ i9/i7/i5/i3 processor in LGA1700 socket ( Max 35W CPU)
Chipset
R680E
Intel® R680E
Annen
1
2-pin teminal block : IGN, GND
Approval
CE, FCC Class A, E mark
CE, FCC Class A, E mark
Chok/Vibration
IEC 60068-2-64, IEC60068-2-27
Vibration 5~500Hz 3G rms X,Y,Z axis w/SSD, according to IEC 60068-2-64 Shock 50 Grms, Half-sine 11 m sec.
Digital I/O
8
1 x DB15 conn.for 8 x digital input ( Dry/ Wet contact ) with 2KV isolation. 1 x DB15 conn.for 8 x digital output with 2KV isolation.
Driftstemperatur
-20 ~ 50°C (-4 ~122°F), ambient w/ air flow -20 ~ 60°C (-4 ~140°F), ambient w/ air flow ( w / External SMART FAN kit )
-20 ~ 50°C (-4 ~122°F), ambient w/ air flow -20 ~ 60°C (-4 ~140°F), ambient w/ air flow ( w / External SMART FAN kit ) *A2000 GPU 100% loading without throttling
DVI
1
1 x DVI-I female conn. for digital / analog video output
Ethernet
8
1 x Intel® WGI219LM GbE controller w/ iAMT 16.0 3 x Intel® I226 2.5GbE controllers 2 x Intel® I226 2.5GbE controllers for PoE 2 x Marvell® 10GbE controllers for PoE
Forsyning
DC 9~36V
DC 9~36V input ( w/ 4-pin DC input terminal block,( V+ ,V+, V-, V-
Grafik
Integrated Intel® HD Graphics 770
Luftfugtighed
10 ~ 95% @ 60°C
10 ~ 95% @ 60°C (non-condensing)
Lyd
1
Mic-in/Line-out
Materiale
Amininum
Montering
Wall-mount
OS SUPPORT
Windows 10 IOT Enterprise 64-bit; Linux ( Ubuntu 20.04 )
PoE
8
4 x RJ-45 connectors for GbE 4 x M12 X-coded connectors by 2 x Intel® I226(2.5GbE) + 2 x Marvell® 10GbE, max 60W supports 802.3at POE+ (forM12 model) 4 x RJ45 connectors by 2 x Intel® I226(2.5GbE) + 2 x Marvell® 10GbE, max 60W supports 802.3at POE+ (RJ45 version)2P4) this this is including Ethernet ports!
SATA
2
2 x Serial ATA ports with 600MB/s HDD transfer rate
Strømforbrug
Max. 180W
Power Consumption Max. 180W
USB
8
8 x USB 3.2/ 2.0 ports
Vekt
5.83Kg
Watchdog
1
1~255 levels reset

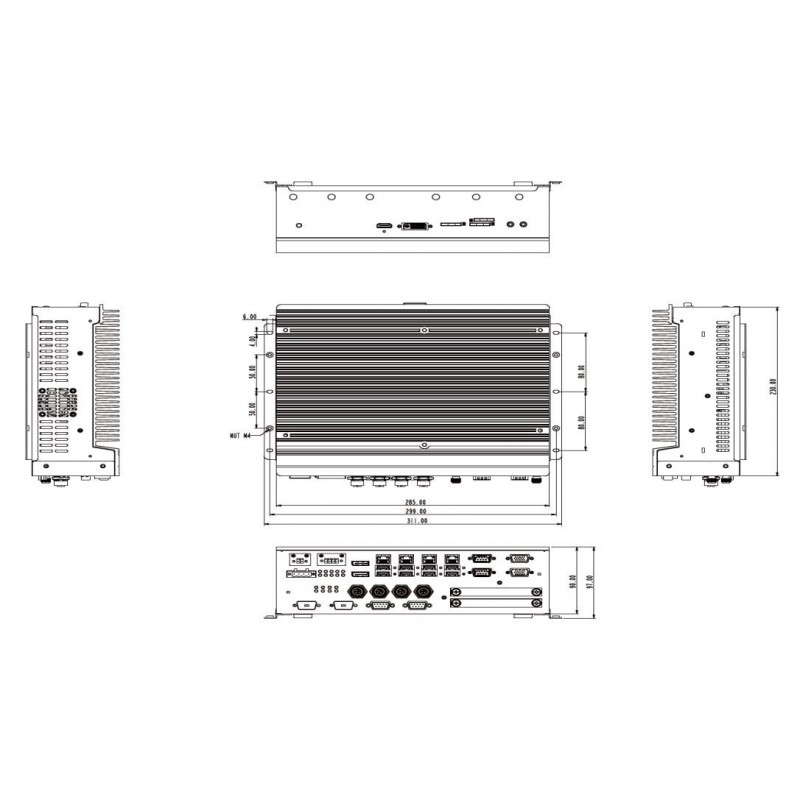

Dimension
(W x D x H) 285x230x 90mm (9.84” x11.50” x 3.54”),Fanless 285x230x110mm (9.84” x11.50” x 4.33”),w/ FAN
(W x D x H) 285x230x 90mm (9.84” x11.50” x 3.54”),Fanless 285x230x110mm (9.84” x11.50” x 4.33”),w/ FAN
Serial Porte
4
2 x RS-232/422/485 configurable ports via DB-9 connectors (Default RS232,Switch via BIOS ) 2 x RS-232 via DB-9 connectors
RAM
64gb
2 x 262-pin DDR5 SO-DIMM sockets, supporting 4800 MHz SDRAM up to 64GB (ECC/ Non-ECC)
