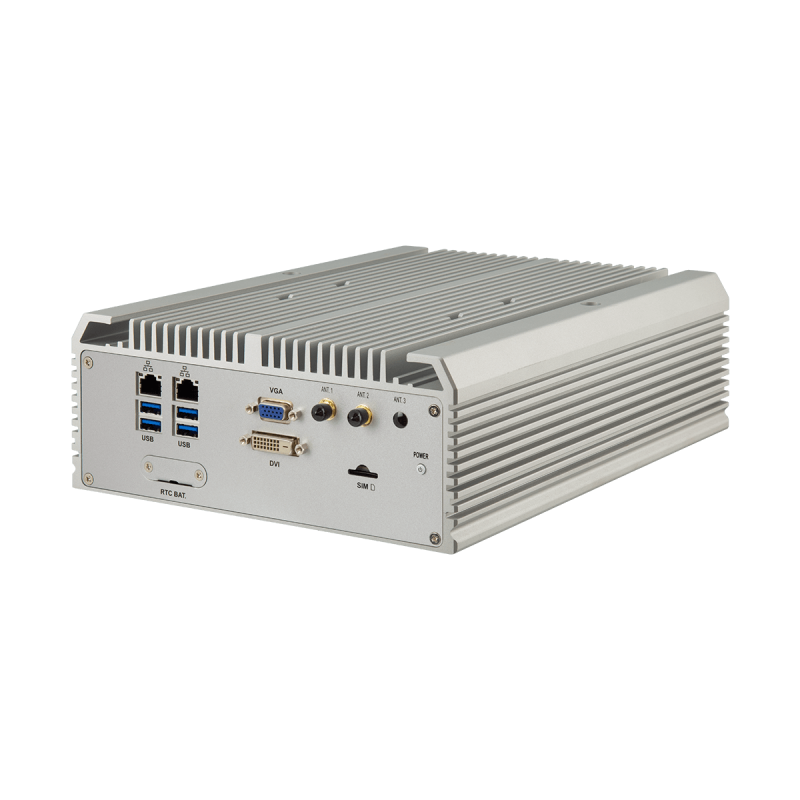

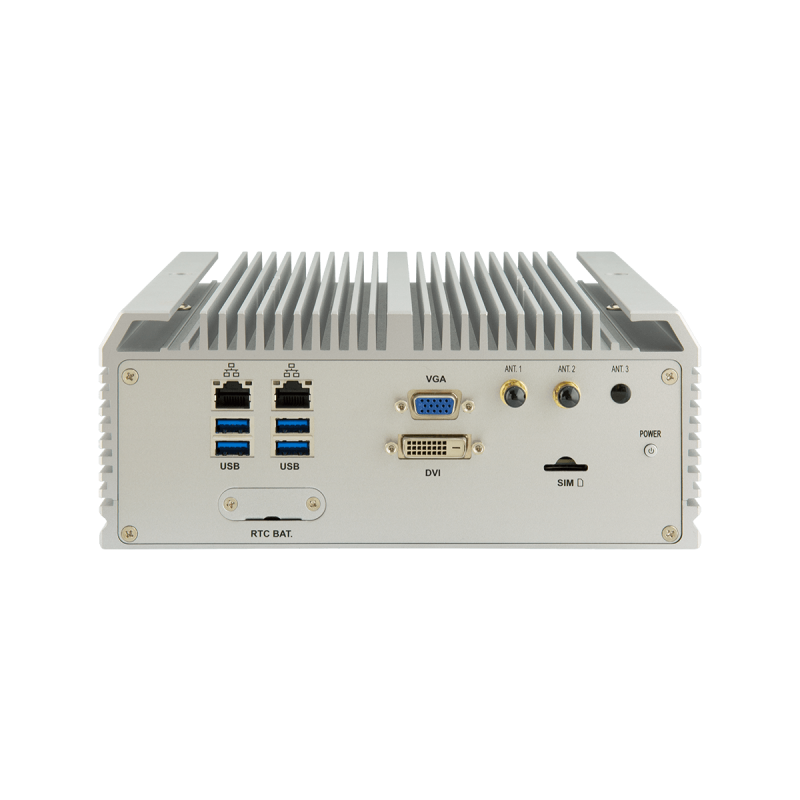

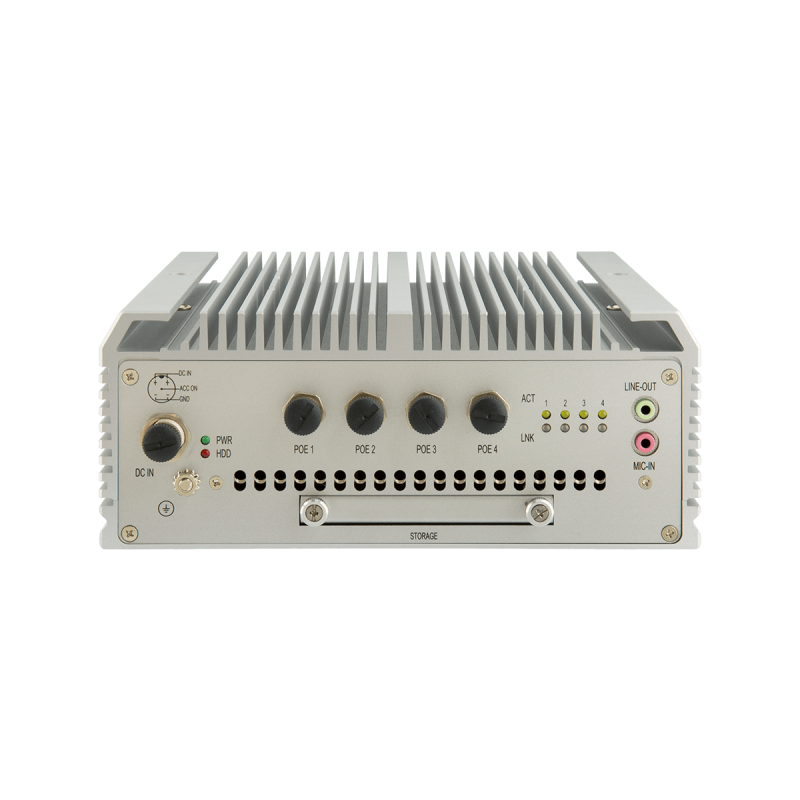

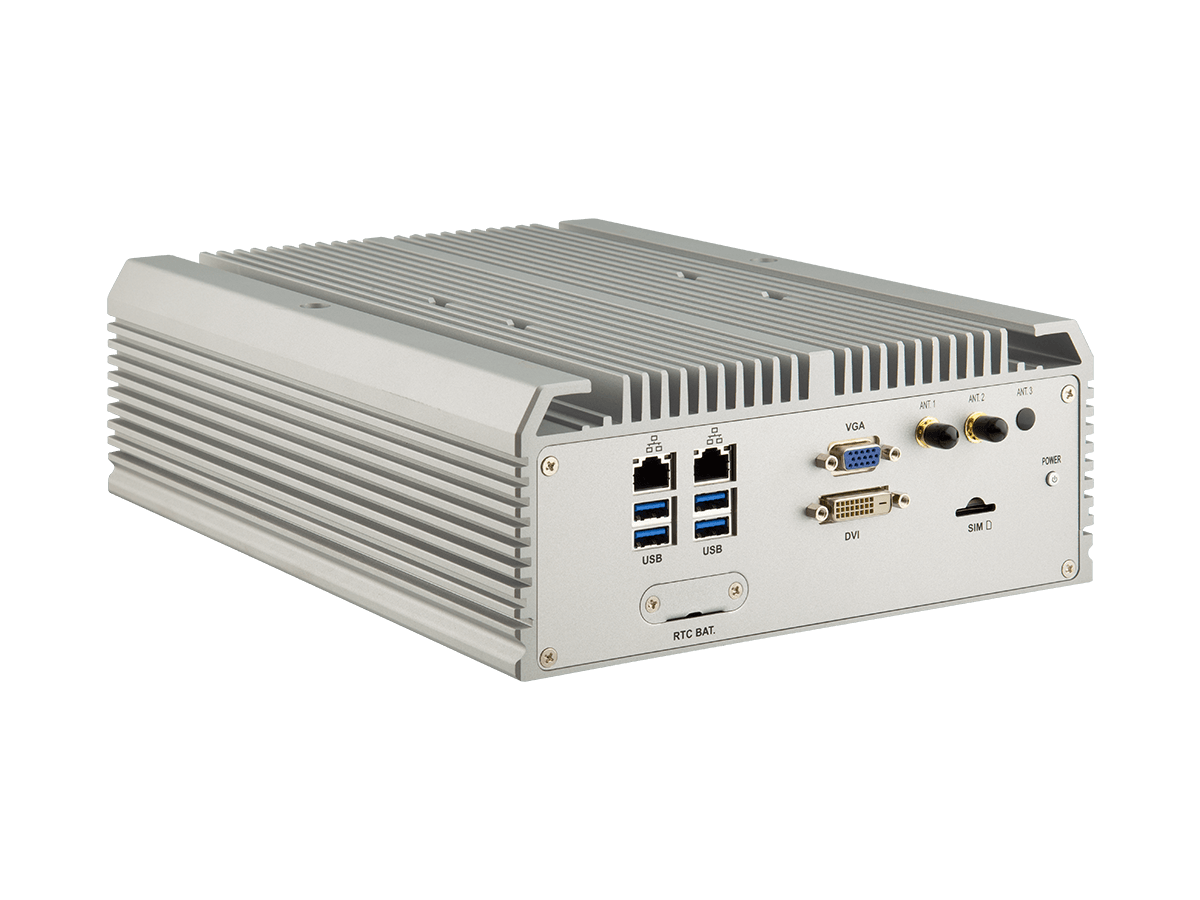

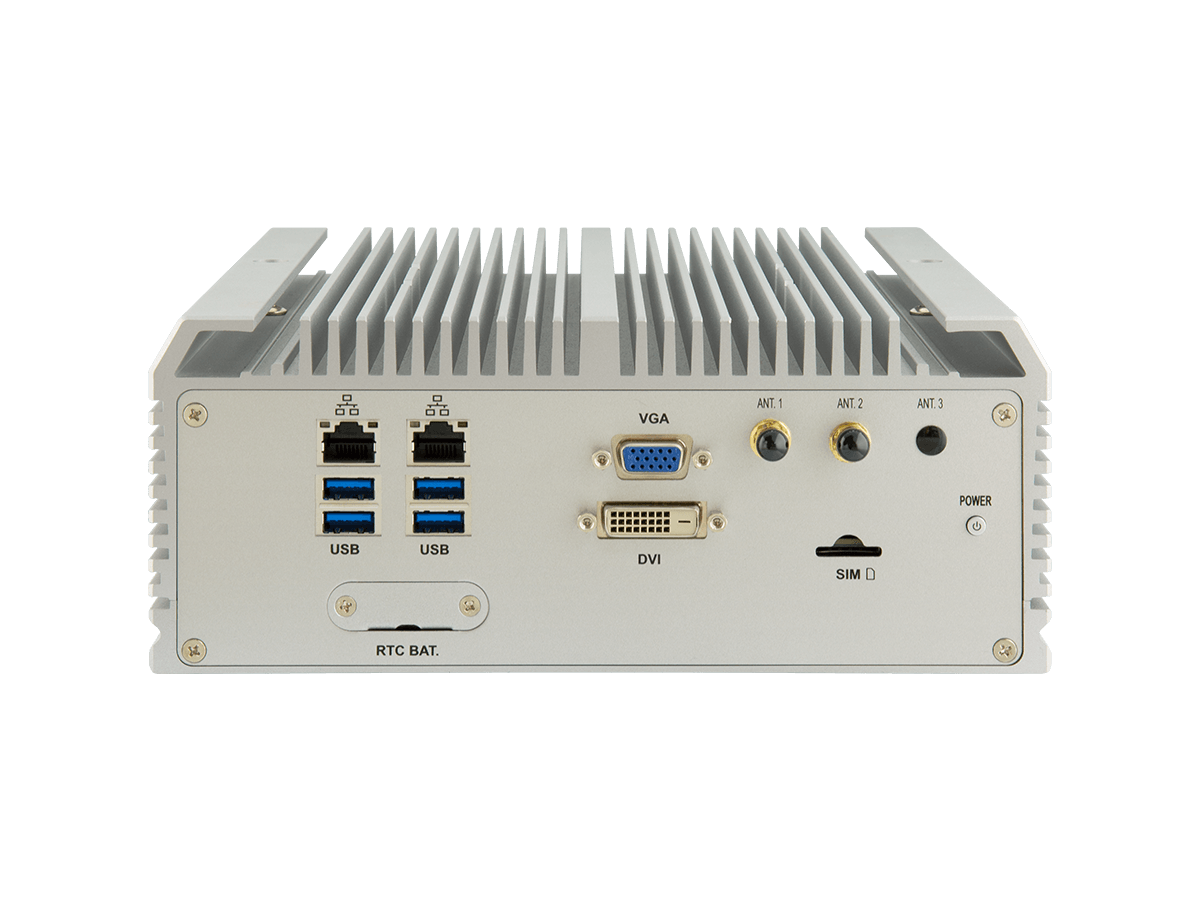

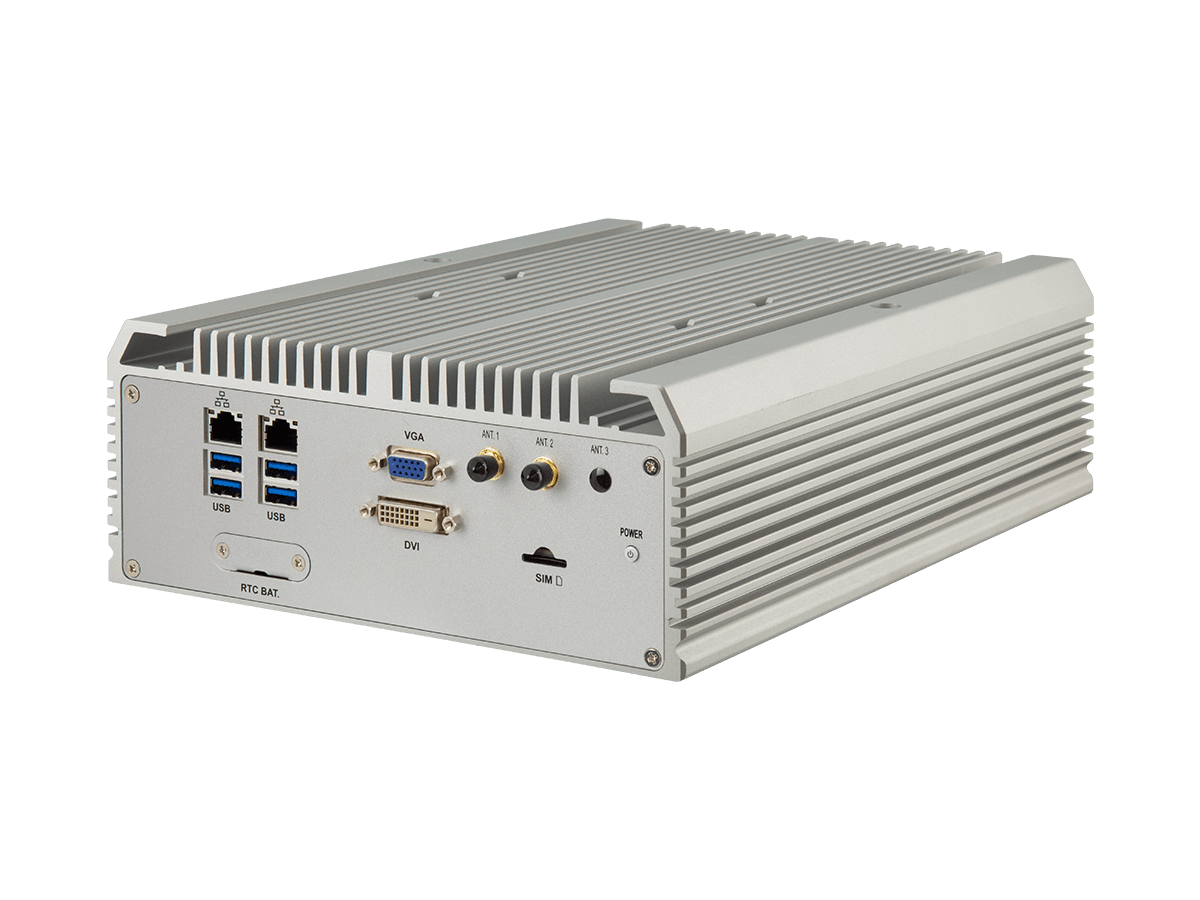

Embedded PC EN-50155 sertifisert for jernbanebruk, Xeon, I3,I5,I7 CPU-sypport, 6xEthernet, 4x USB, VGA, DVI-D

CPU-støtte gen.6/7 Intel® Xeon® E3/ 6. og 7. generasjon Core™ i7/ i5/ i3-prosessor i LGA1151-sokkel
Vifteløs design
4 x 802.3af Gigabit PoE-porter med M12-kontakter
Støtte RTC batteriservicevindu
2 x mPCIe-spor for valgfrie Wi-Fi/ BT/ 3G/ 4G/ GPS-moduler
1 x M.2 (NGFF) M-Key(2242)-kontakt for lagringsmodul
1 x SIM-kortkontakter
Dimensjoner (B x D x H) 225 x 292 x 90 mm
Bredt temperaturområde fra -40°C til 70°C
DC-strøminngang (9~36V)
EN-50155 sertifisert

EPT-IX-EN-50155
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
i3; i5; i7; Xeon
Intel® Xeon® E3/6th&7th generation Core™i7/i5/i3 processor in LGA1151 socket
Chipset
Intel® C236
Approval
EN-50155 certified.
Chok/Vibration
IEC61373; IEC61373
Vibration IEC61373 Category 1 Class B / Shock IEC61373 Category 1 Class B
Dimensioner
225 x 292 x 90 mm
Dimensions (W x D x H)
DVI
1
1 x DVI-D female connector for digital video output, Max. resolution : 1920 x 1080 @ 60Hz
Ethernet
6
1 x Intel® i219LM GbE controller w/ iAMT 11.0 (except i3) 1 x Intel® WGI211AT GbE controller 4 x Intel® WGI211AT GbE controllers for PoE
Luftfugtighed
10 ~ 95%
10 ~ 95% @ 70°C (non-condensing)
OS SUPPORT
Windows 10 IoT; Windows 7; Windows 8.1; Linux
WIN 10 IOT for Gen 6/7 for Gen. 6 only Win 7, 8.1, Linux (kernal 4.x)
SATA
3
3 x Serial ATA ports with 600MB/s HDD transfer rate
SIM kort
2
1 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi/ BT/ 3G/ LTE/ GPS
USB
4
4 x USB 3.0 ports, front side
VGA
1
1 x DB-15 female connector for Analog RGB, Max. resolution : 1920 x 1080 @ 60Hz
