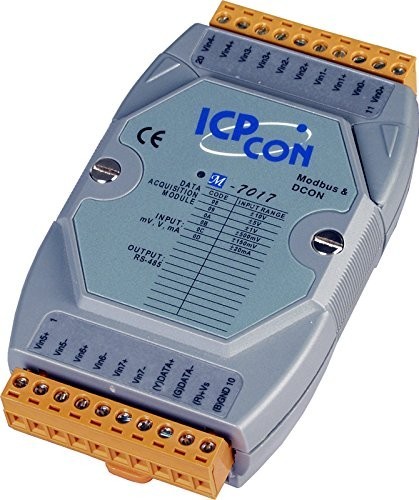

RS485 modul til MODBUS 8 x Analoge Input

ANALOGT INPUT MODUL TIL MODBUS

MOD485-IO8AI
3 595  NOK
Eksklusive MVA
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Modbus 8 Channel Data Aquisition Module

Features:

  • Easily communicates with most SCADA/HMI software.
  • Small form factor saves space.
  • 240Vrms over voltage protection.

Applications:

  • Industrial networking
  • Serial device control
  • Power plants
Annen
+/-35 VDC Overvoltage Protection
Baudrate
1200 ~ 115200 bps
Driftstemperatur
-25C to 75C
Indgangsimpedans
20 MΩ
Input
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA 0 ~ 20 mA, 4 ~ 20 mA (requires optional external 125 Ω resistor)
Installation
DIN-Rail or Wall Mounting
Interface
RS-485
Isolation
3000 VDC
Luftfugtighed
10 ~ 95% RH, Non-condensing
Opløsning
16-bit
Output
10 ~ 30 VDC
Protokol
Modbus RTU, DCON
