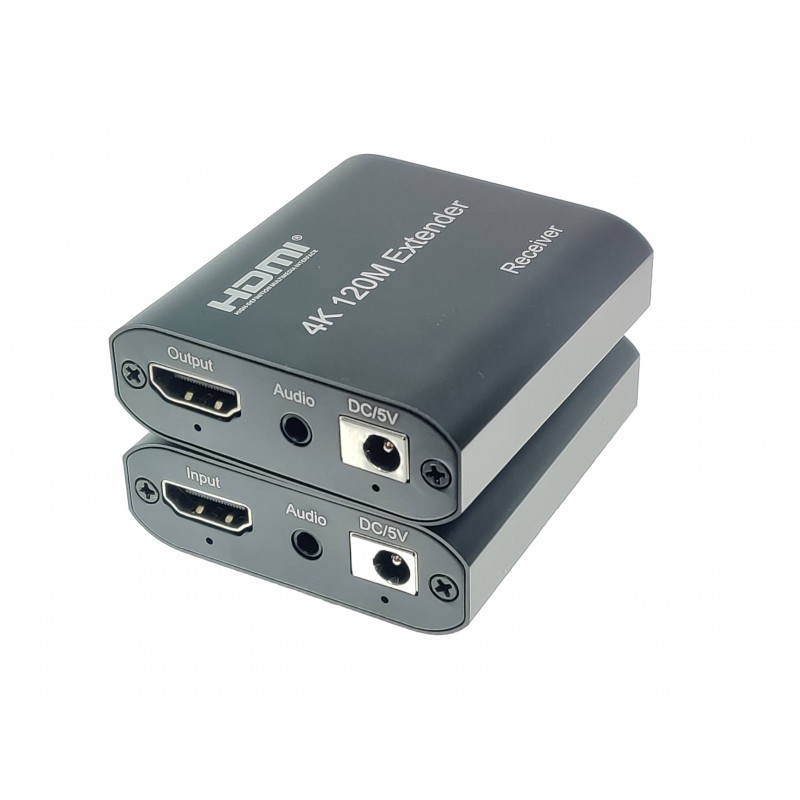

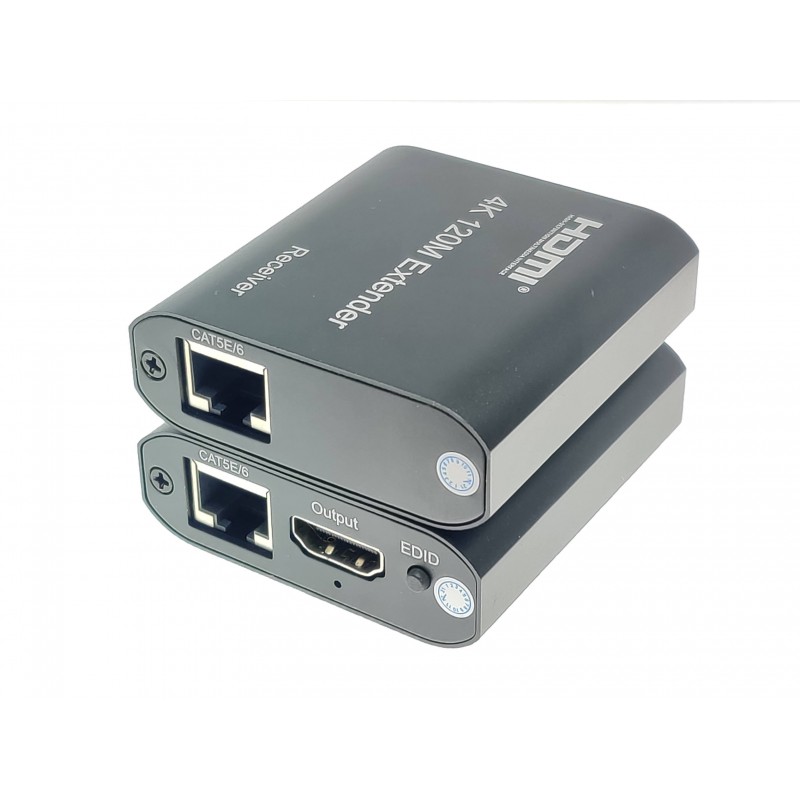

HDMI Extender 4K @ 30Hz over Cat 5e / 6. Opp til 120 meter, 5VDC, sløyfe ut

Overfører HDMI-video og -lyd og USB opptil 150 meter over nettverkskabel
Overfører HDMI-video og -lyd og USB over lokalt TCP/IP-nettverk
USB er kun for tastatur og mus
Sett med sender og mottaker
1920 x 1080 ved 60 Hz
En sender til flere mottakere over ikke-administrert bryter.
Støtter KUN tastatur og mus
Støtter TCP/IP og lokal EDID
HDMI 1.3 / HDCP 1.2
Sender: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Mottaker: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
innebygd autojusteringssystem
Innebygd ESD-beskyttelsessystem
Strømforsyning: DC 5V/1A (medfølger)
Mål: 92 x 70 x 25 mm

HDBaseT Repeater med HDBase ind / ud
Maks. afstand 100 meter
Egnet til Mid-range Repeater.
Input og output for HDMI
Kan fjernbetjenes med RS232
Med EDID
Forsyningsspænding: 12VDC
Mål: 190 x 125 x 34 mm

Simple way to transfer HDMI signal using CAT 6/6e cable.
Features:
Long range transmission:up to 50m/165ft over a single CAT6 cable;
Video resolution:Up to1920x1080P@60Hz,3D;
Audio sampling rate:32kHz, 44.1kHz and 48kHz ;
Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
Uncompressed mode:ZERO Delay,No loss
Male to male:one TX to one RX applicataion;
Copy EDID:It is extended display identification data , Press the button 3seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again;
Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;
Built-in automatic adjustment system:make the image smooth, clear and stable;
Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
Simple to install, plug and play

Specifications:
HDMI Version: HDMI 1.3
HDCP Version: HDCP 1.2
Resolution: 1920x1080P@60Hz resolution, compatible with 3D

Connection instructions:
HDMI cable: HDMI 1.3 cable within 10 ft.(at 1080P@60Hz)
Ethernet cable: Cat6/7 within 50m/165ft, Cat5e within 40m/130ft.
Ethernet cable RJ45 wiring sequence: T568B (white orange, orange, white green, blue, white blue, green, white brown, brown)

Remind:
1）Directly connect your signal source and monitor before connecting HDMI Extender, and check the signal status.
2）Power the TX to run the devices by connecting your computer, laptop, USB adapter with the included USB power cable (no adapter).

4K HDMI Extender over patch-kabelen
PoC (Power Over Cable) - Strømforsyning til å være på TX eller RX
2.0b HDMI / HDCP 2.2 / 1.4
opp til 120 meter
4096 x 2160 ved 60 Hz (120m), 1920 x 1080 ved 60 Hz (150m)
4K@50/60Hz 4:4:4
1080p @ 120 Hz
Fjern-IR i begge retninger hoteller, TX: HDMI i, HDMI ut, IR-inngang + ut (3,5 mm jack), DC i, RJ45, RS232
RX: HDMI ut, lyd ut, IR-inngang + ut (3,5 mm jack), RJ45, RS232
Plug and Play
Strømforsyning: 24V 1A (1 stk inkludert)
Dimensjoner: 157 x 90 x 20 mm | Vekt: 333 g
Driftstemperatur: 0 - + 40 ° C
Fuktighet: 20-90% RH (ingen kondens)
