Isolert USB til RS485-omformer, -25 ° C ~ +75 ° C

USB til RS485-omformer, isolert
1 x RS485 7-polet terminalblokk
1 x USB-B
Hastighet: 300 ~ 115200 bps
For USB 1.1 / 2.0 (High Speed)

2500 VDC isolasjon på RS485
Til DIN-skinne montering
Ingen ekstern strømforsyning nødvendig
Input +5 VDC fra USB-port
OS-støtte WIN 98 / ME / 2000 / XP (32 / 64- bit) / Vista (32/64-bit) / 7 (32/64-bit) / 8 (32/64-bit) / 10 / Linux
Driftstemperatur. -25 ° C ~ +75 ° C
USB-kabel (1.8m) inkludert

M485-USB-ISO
1 289  NOK
Eksklusive MVA
Antall
Fysisk på lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

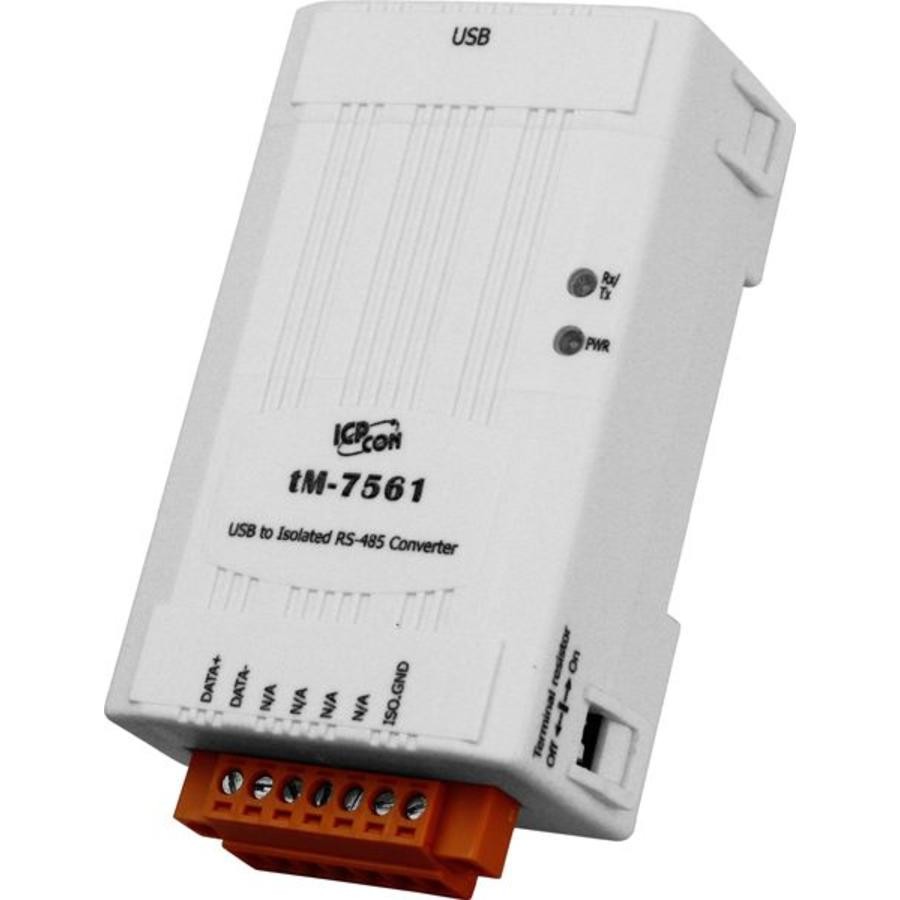

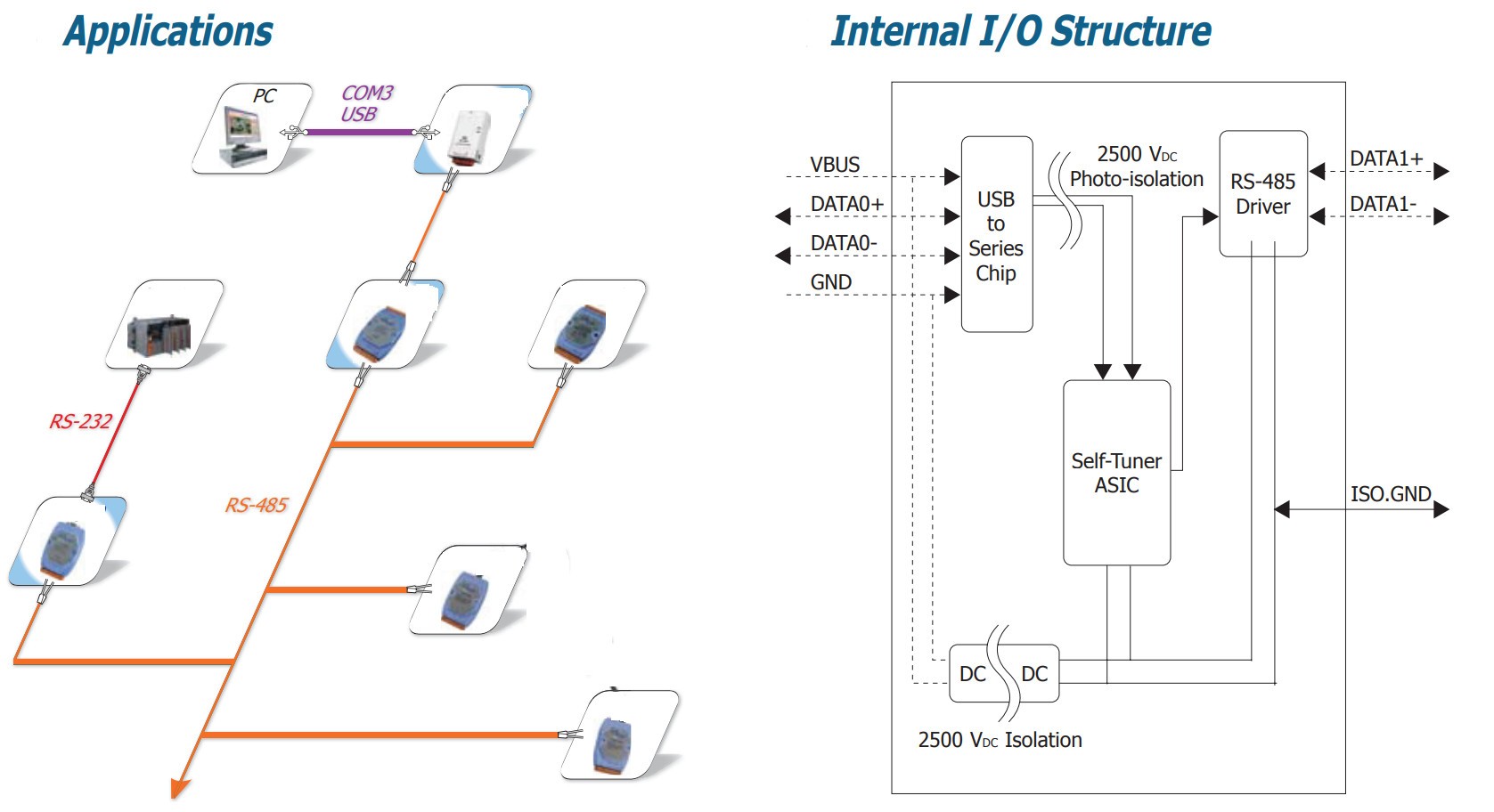

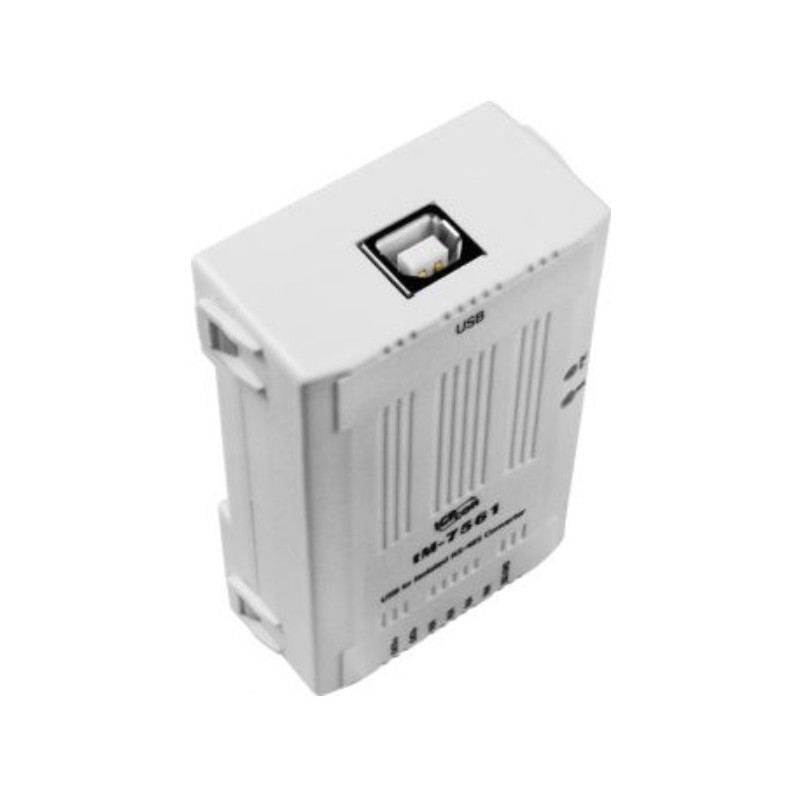

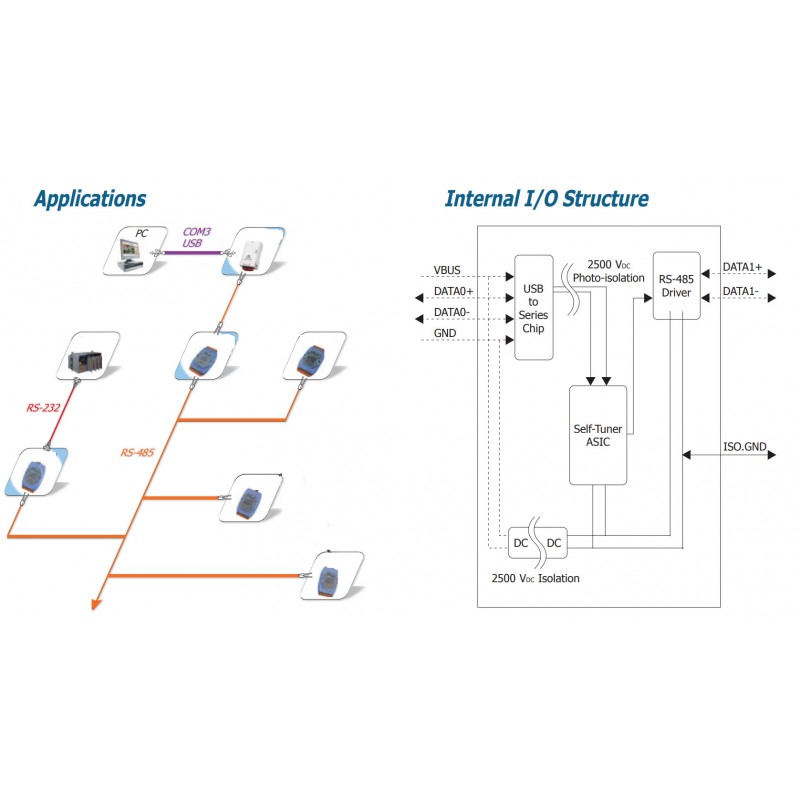

The tM-7561 is a cost-effective USB to RS-485 converter. Connecting the tM-7561 to a PC, you get one RS-485 port that allows you to access RS-485 devices through the USB interface. Like the I-7520, the tM-7561 contains "Self-Tuner" chip auto-tunes the baud rate and data format to the RS-485 network. The tM-7561 module derives its power from the USB port and doesn't need external power adapter.

Annen
Power and data flow indicator for troubleshooting
Dimensioner
(W x H x D) 52 mm x 87 mm x 27 mm
Driftstemperatur
-25 °C ~ +75 °C
Forsyning
No External Power Supply required
Hastighed
300 ~ 115200 bps
Isolation
2500 VDC Isolation Protection on the RS-485 side
Montering
Tiny packaging fits on your DIN-Rail
OS SUPPORT
Driver Supports Windows 98/ME/2000/XP (32/64-bit)/Vista (32/64-bit)/ 7 (32/64-bit)/8 (32/64-bit)/10/Linux
Stik

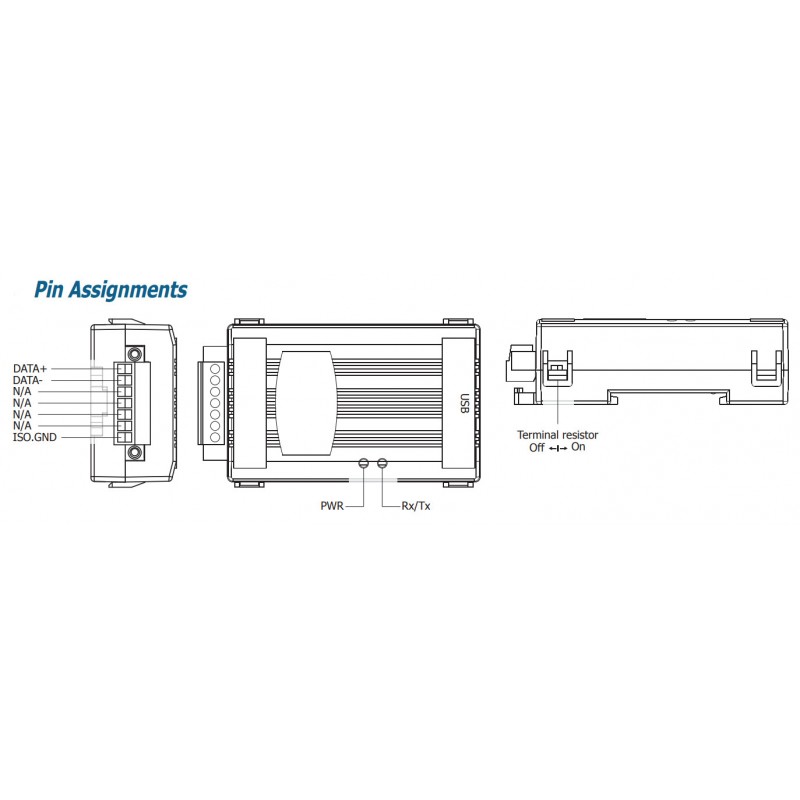

RS-485: Removable 7-Pin Terminal Block USB: Type B
USB
Fully Compliant with the USB 1.1/2.0 (High Speed)
