Restordre: PC/104 modul, 386SX med ethernet

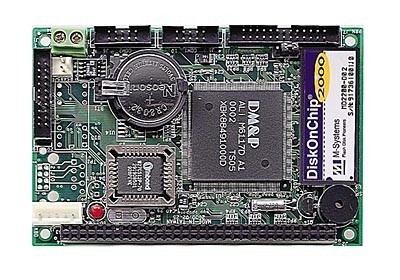

386SX modul med sokkel til DiskOnChip, ICOP-6012

PC104SX386ETH
2 440  NOK
Eksklusive MVA
Antall
Fysisk på lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
  • Chipset: DM&P (ALi) M6117D ( Embedde CPU, 386SX-40 compatible)
    Data Bus: 16-bit
    Bus Speeds: 8 MHz, programmable up to 16MHz
    Watchdog Timer: from 30.5us to 512 seconds real Time Clock
  • BIOS: AMI BIOS
  • RAM memory: 4 MB of EDO DRAM
  • I/O: One RS-232 port, one RS 232/RS-485 port
    Bi-directional Parallel Port
    16-bit GPIO
    Power LED
    Active LED
    Buzzer
  • Bus interface: ISA bus signal interface
  • Connectors:
    20-pin box header for 16-bit GPIO
    10-pin box header for RS-232 port x 2
    25-pin (2.0mm) hearder for parallel port
    5-pin header for AT-keyboard
    2-pin header for RS-485 port
    2-pin MOLEX power connector
    One socket for Flash Disk/DiskOnChip
    RJ-45 connector for 10BASE-T (ICOP-6012)
  • LAN:Realtek 8019AS single chip (For ICOP-6012 only)
    Full-duplex transfer mode, doubles effective bandwidth
    NE2000 compatible with built in 16 KB RAM buffer
  • Throughput: 10Mbps
  • Power Requirements: single voltage +5 V @ 400 mA
  • Dimensions: 100 (L) x 66 (W) mm.
  • Weight: 80g
  • Operating Temperature: -20~+60°C
