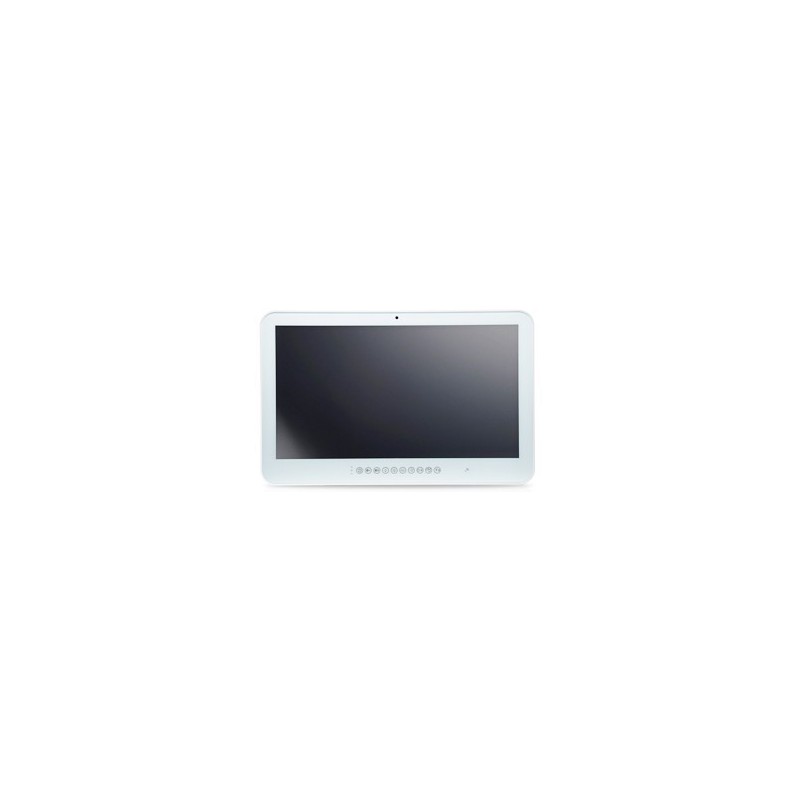

24" Medical approved panel PC med batteri backup

24" Fanless Medical Panel PC
1920x1080 MVA LED panel
Intel 4th gen. Haswell Core i7/i5/i3 CPU
P-CAP multi-touch 10 fingers
Medical UL60601-1 3rd edition certification
Anti-bacteria (MRSA)
Seamless in front & ultra slim 65mm only
Easy wipe surface with no internal corner
IP65 at front side

IPP24MEDIC
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Medico godkendt panel PC med 24" LED panel, og P-CAP touch.
Kan kundespecificeres med PCI/PCIe udvidelse. Kan leveres med I/O beskyttelse på LAN/COM/USB udgangene optil 4KV.
Batteri pack option til brug uden fast forsyning.

Kontakt salgaafdelingen med muligheder til specielle opgaver.

Approval
UL/cUL 60601-1 version 3, FCC/VCCI class B / EN 60601-1 /EN60601-1-2:2007 / ISO 14971 / Energy star 6.1 compliance /IEC62133
Dimensioner
606 (H) x 398 (B) x 65.6 (D) (mm x mm x mm)
Ethernet
2 x RJ45 Gbit
Forsyning
DC-In x 1,6V~32V
Grafik
DVI-D (Video-in) x 1, ‧DVI-D (Video-in) x 1
Hukommelse
2 x 1600 MHz DDR3/DDR3L SODIMM socket support dual Channel, non-ECC, MAX. 16GB
Porte
COM x 2 (RS232 x 1, RS232/RS422/RS485 x 1;RS-485 auto flow support)
Skærm
Full HD 1920 x 1080
Skærm
24” Full HD 1920 x 1080/ 250 nits
Touch
Projective capacitive touch panel
Udvidelser
PCI-E x 16 expansion slot x 1 or PCI 2.2 x 1 ‧Mini PCIe x 2 (52 pin card-edge type)
USB
USB 3.0 x 4 , USB 2.0 x 2 (Default)
Vekt
9 kg(w/o power adapter)
