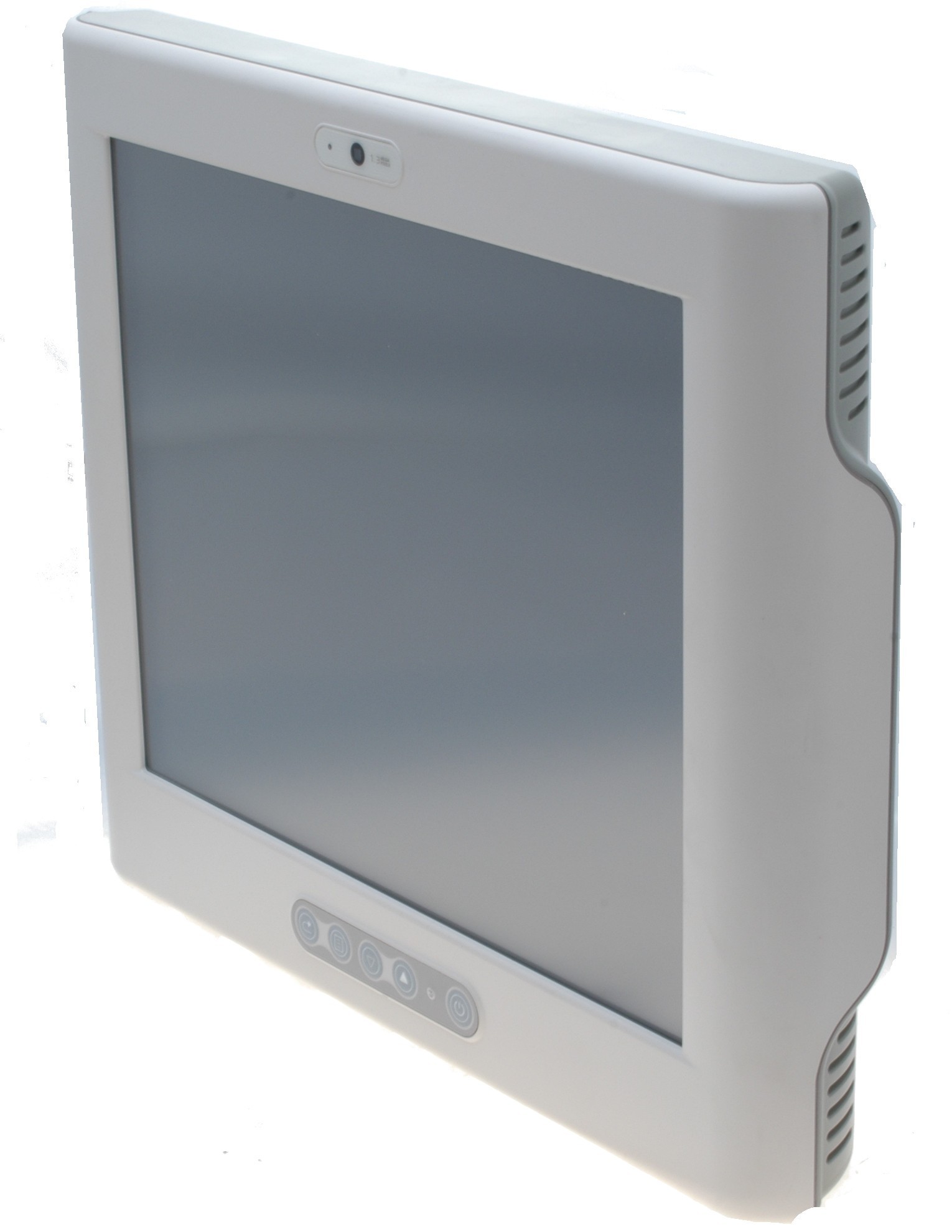

Medico skjerm 17 "LCD TFT med berøring, DVD-stasjon og webkamera. Axiomtek 17" TFT 380 passer SXGA LCD, 5: 4 format EOL

Features:

­ 17" TFT 380 nits SXGA LCD

­ Spill and dust resistant design (front panel: IP65, whole enclasure: IPx1)

­ Built-in internal microphone/2W stereo speakers

­ Optional Bluetooth/1.3 mega pixels camera/ combo/RFID

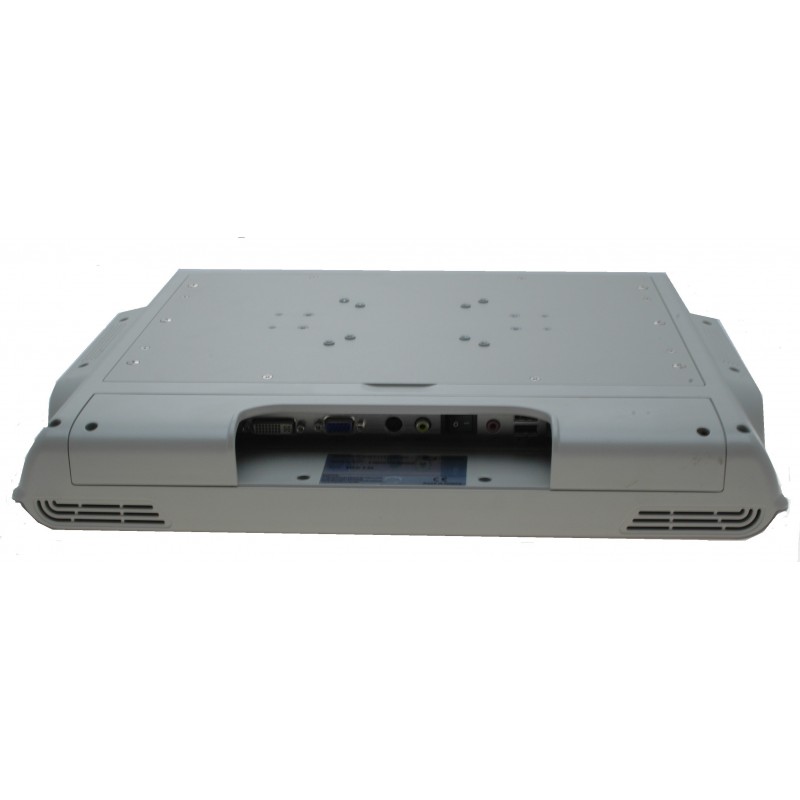

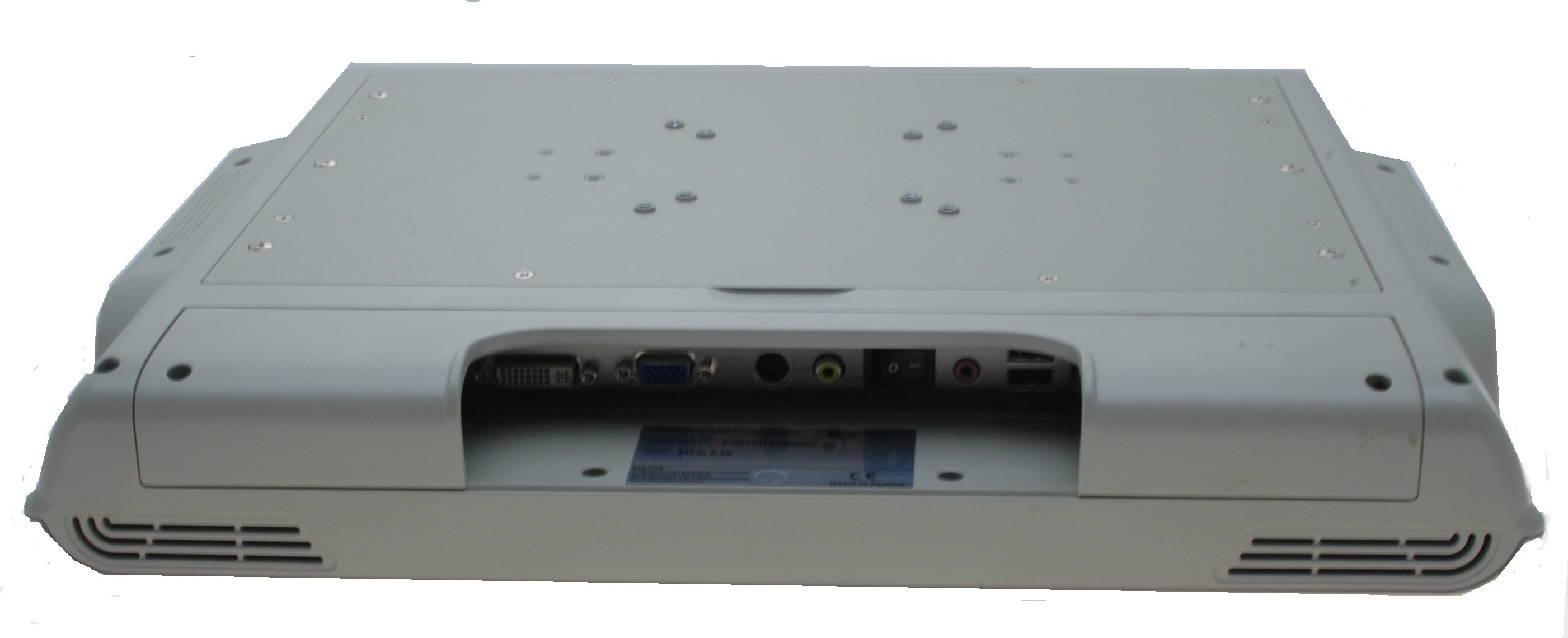

­ Supports multi-signal inputs: VGA, S-video, video, DVI, Audio-in, 3 USB ports (1 slave, 2 host)

­ Supports wall mount, desktop stand and VESA FPMPMI

­ UL60601-1, EN60601-1, CE, FCC class B certified

­ Supports NTSC, PAL

Specifications:

Front Bezel: Plastic ABS

Mounting: Desktop stand, wall mounting or VESA FPMPMI mounting (video electronics standards association Flat Panel monitor physical mounting interface)

LCD Panel: Display Type 17" TFT LCD

Max. Resolution 1280 x 1024

Max. Colors 16.7M

Active Area (mm) 337.92 x 270.33

Pixel Pitch (mm) 0.264 x 0.264

Response Time 5ms

Backlight CCFL

Backlight MTBF 50,000 hrs

Viewing Angle (H/V) 160°/160°

Contrast Ratio 800 (TYP.)

Brightness (cd/m2) 300 nits

Display Control: OSD (on screen display)Display Mode: VGA 640 x 480 (60/72Hz), VGA 640 x 350 (70Hz), VGA 720 x 400 (70Hz), XGA 1024 x 768 (60/70/75Hz), SVGA 800 x 600 (60/72Hz) SXGA 1280 x 1024 (60/70/75Hz) Input Signal: VGA Video: R.G.B Analog 0.7v Peak-to-Peak

Video

S-Video

DVI

Touchscreen: USB 2.0

Audio-in

3 USB (1 slave, 2 host)
