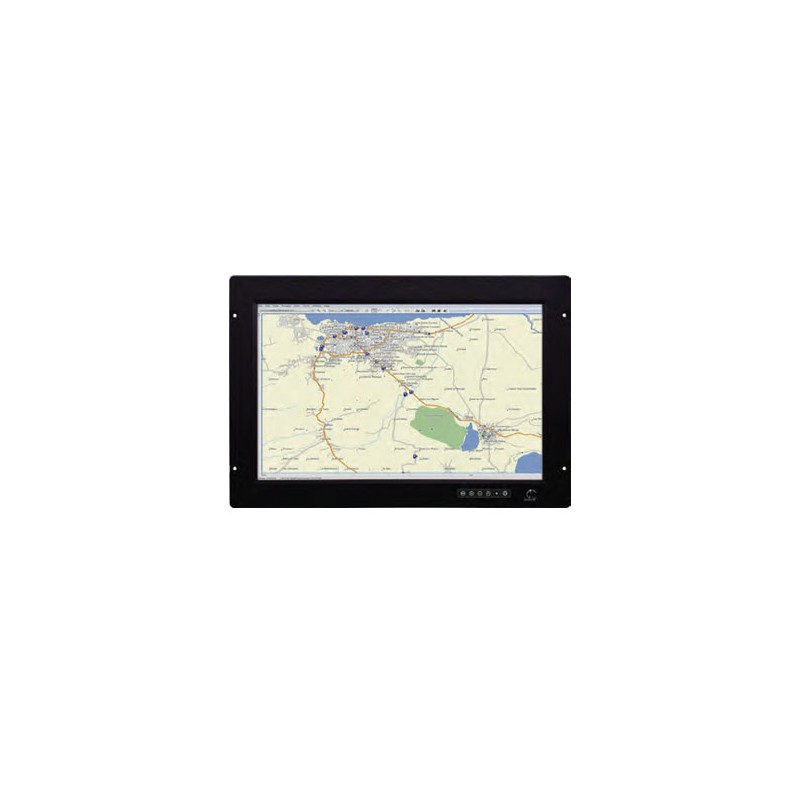

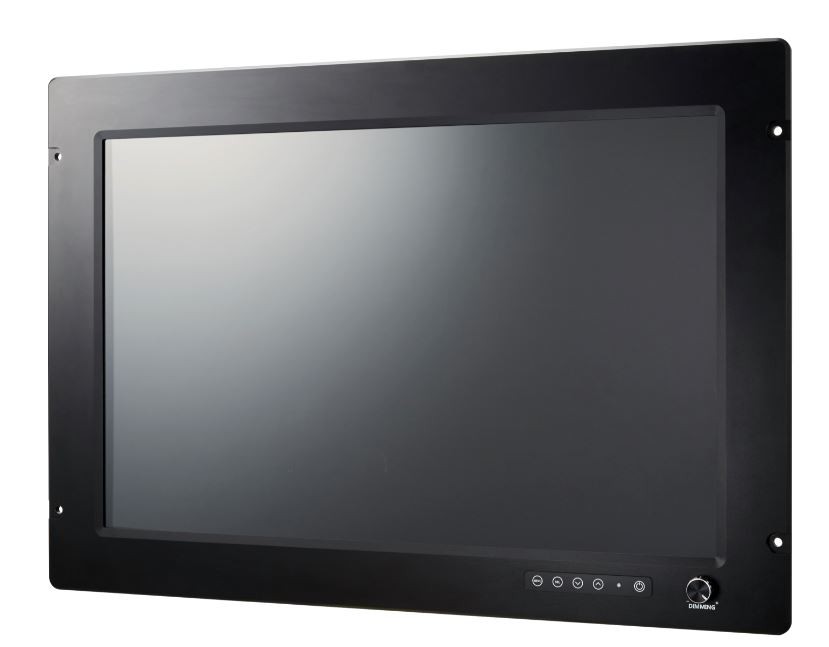

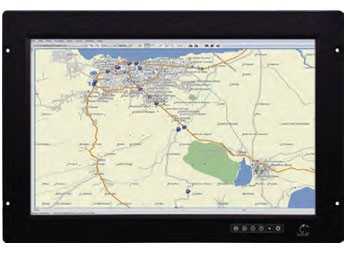

27" TFT-skjerm Marine godkjent DNV, IEC60945 4th, IACS E-10, IEC60529

27" 16:9 bred TFT LCD
1920 X 1080 @ 60 Hz
Lysstyrke: 300CD / ㎡
Alternativ: dimming: 3 ~ 100 %
1 x DVI-D
1 x RGB-inngang
1 x HDMI
Monteringsbrakett, stativ (skrivebord)
Aluminiumsdimensjon
Drift: 0 ℃ Til + 50 ℃
690(B) x 70(D) x 460(H) mm
(710 (B) X 79 (D) X 446 (H) mm)
DNV, IEC60945 4., IACS E-10, IEC60529

MON27-DNV
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Farve
16.7M Colors
Annen
Option Dimming : 0~100%
Approval
Test Approval IACS E-10 Certification ABS, BV, DNV, KR, LR, RS
Betragtningsvinkel
178 RL x 178 UD
Dimensioner
710 (W) x 79 (D) x 446 (H) mm
Driftstemperatur
0℃ to +50℃
Forsyning
Power Specification 110VAC~230VAC 50/60Hz (IEC Standard AC Inlet) Power Consumption 35W (MAX)
IP-Tæthed
IP65 front
Kontrast
3000:1
Skærm
27" Diagonal, LED backlight, 16:9, 300cd/㎡, Respons 12ms, 16.7M colors
Skærm
Detectable resolution 640 x 350, 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080
Stik
1 x VGA (D-SUB 15p female) 1 x DVI-D (DVI 24p female) 1 x RS232 (D-SUB 9p female)
Strømforbrug
35W (MAX)
Synsfelt
Active Area 597.6 (H) x 311.25 (V) mm Pixel Pitch 0.31125 (H) x 0.31125 (V) mm Viewable Angle 178°RL / 178°UD
Vekt
15.95Kg
