7 digitale innganger og 8 digitale utganger, display. RS485 buss. 10 - 30VDC.

RS485 Modul med digital I / O
7 Digital Input
8 Digital Output, 30Volt / 30mA
RS485 Interface
Baudrate 1200 ~ 115200 bps
Dual Watchdog
10 - 30 VDC, 1 W Via Terminal Block
-25- + 75 °
DIN Rail Montering

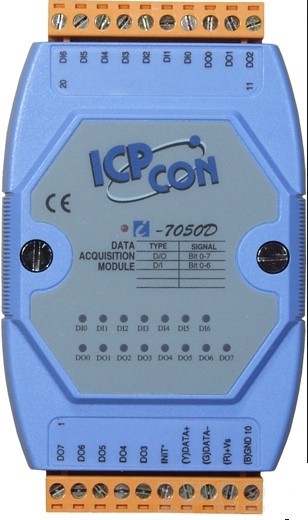

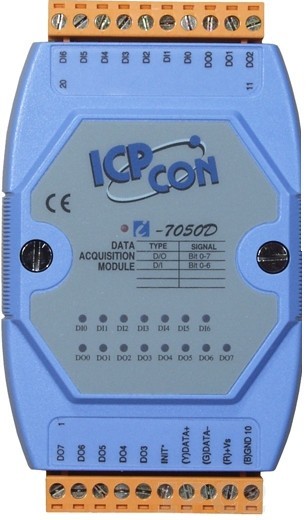

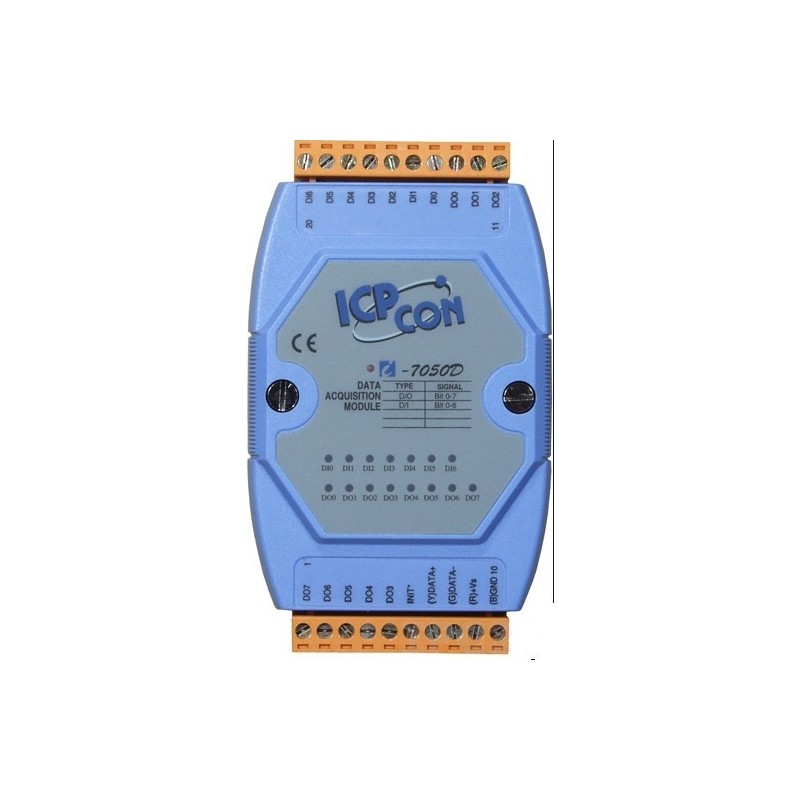

M485-DIO7D-I
1 659  NOK
Eksklusive MVA
Antall
Fysisk på lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Baudrate
1200 ~ 115200 bps
Driftstemperatur
25 ~ +75°C
Indgang
7 stk. med fælles minus. Indbyggede Pull-up”: 10 kΩ til 5 VDC Logisk 0: 0 – 1 V Logisk 1: 4 – 30 V
Interface
RS-485
LED
Yes, 1 LED as Power/Communication Indicator
Montering
DIN-Rail or Wall Mounting
Protokol
DCON (For I-7050 series) Modbus RTU, DCON (For M-7050 series)
Udgange
8 stk. “Open collector”: 30 V/30 mA, maks. effekt: 300 mW
Watchdog
Dual Watchdog. Module (1.6 Seconds), Communication (Programmable)
