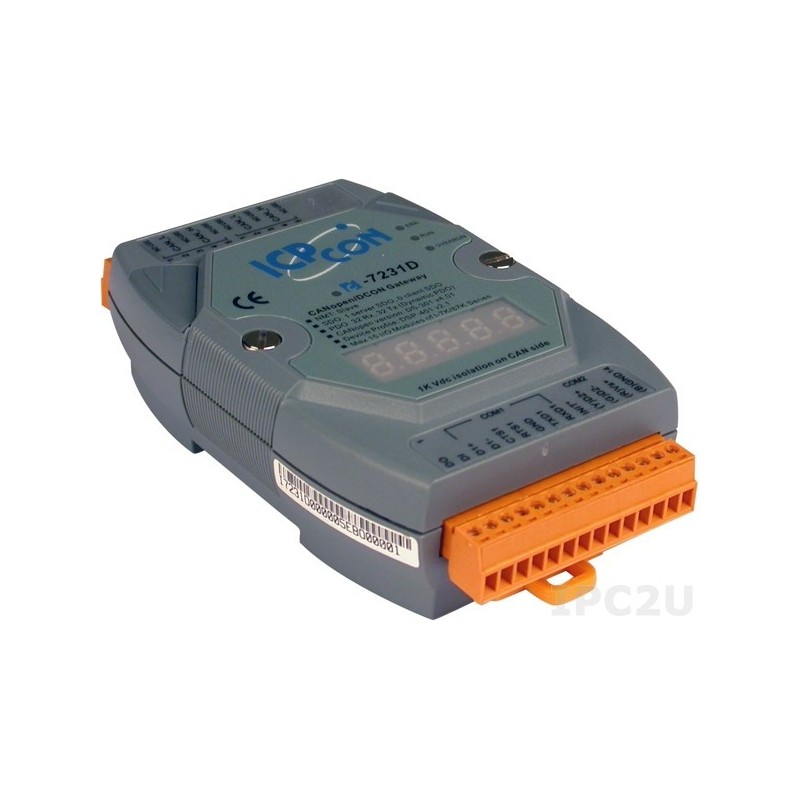

RS232 / 485 for CAN Converter, Canopen. ICP DAS I-7231-D

Hardware
Watchdog: Watchdog IC

CAN Interface:
Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Connector : 5-pin screwed terminal block (CAN_L, CAN_H, N/A for others)
Isolation : 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor : Jumper for 120 Ω terminator resistor
Protocol : CANopen DS-301 ver4.02, DS-401 ver2.1

UART Interface:
COM 1: RS-232 (For configuration)
COM 2: RS-485 (Self-turner inside)
Transmission Distance (m): Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Baud Rate (bps):1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol: DCON

LED:
Round LED: MS LED, NS LED, IO LED
5-digit 7 Segment : Yes

Power:
Power supply: Unregulated +10 ~ +30 VDC
Protection : Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 3W

Mechanism:
Dimensions: 72mm x 122mm x 33mm (W x L x H)

Environment:
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
