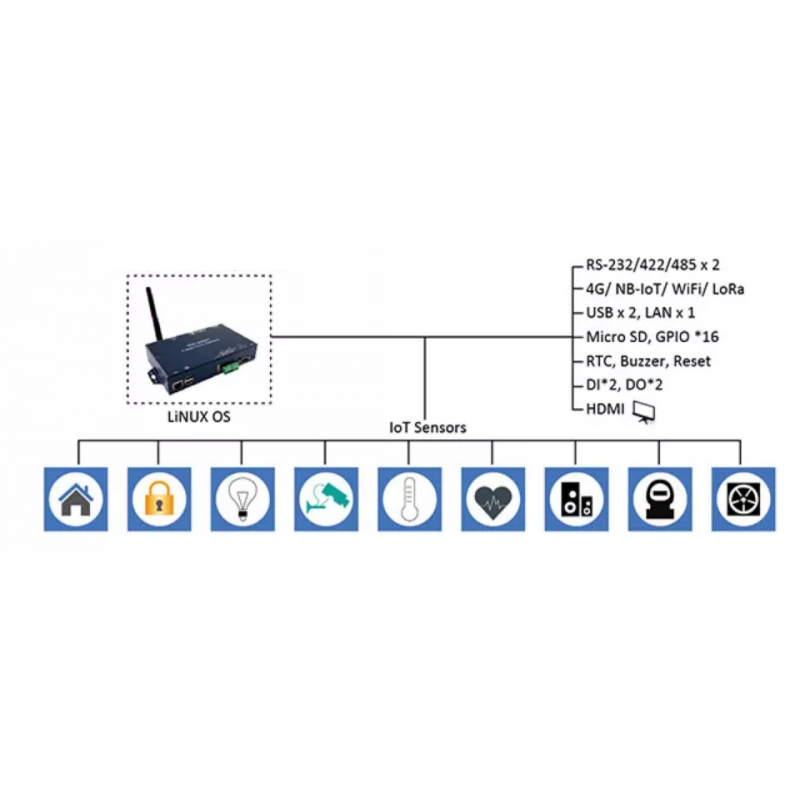

Programmerbar industriell IoT-kontroller med 1 digital inngang og 1 digital utgang, 2 COM-porter

CPU QuadCore Cortex A72 (ARM v8) 64 bits SoC 1,5 GHz
RAM 4 GB
LPDDR4 standard (1/2/8 option)
32 GB EMMC Flash-minne
1x
Micro HDMI
2x USB 3.0, 2x COM (1x RS-232/422/485, 1x RS-232/485 )
RTC : Sanntidsklokke
1x D
igital inngang Dry(open/close)/Wet(0-3V/10-30V) kontakt
1x digital utgang (
120VAC @0,5A, 240VAC @0,25A, 30VDC @1A)
DC 9~32V inngang DC Jack eller terminalinngang

RPI-CM4-IOT
8 968  NOK
Eksklusive MVA
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Wireless Bluetooth 5.0 BLE (optional)
5G M.2 key B USB 3.0 / PCI-E for 5G (optional)
4G Mini-PCIe : USB 2.0 for 4G / NB-IoT / LoRa (optional)
M.2 key M for PCIe SSD (optional)
Fan - DC 12V (optional)
Wifi 802.11b / g / n / ac (2.4/5GHz) (optional)




CPU
Broadcom BCM2711 QuadCore Cortex A72 (ARM v8) 64 bits SoC @ 1.5G
Digital I/O
Digital Input * 1 Pin (Active High / Active Low Selectable); Digital Output * 1 Pin (Active High / Active Low Selectable)
Dimensioner
170 * 110 * 30 mm
Driftstemperatur
-20℃〜75℃
Netværk
10/100/1000 Mbps Giga Lan * 1 (RJ45); 10/100Mbps * 1 (RJ45)
OS SUPPORT
Linux OS
Strømforsyning
DC 9~32V, 1000mA@12V (DC Jack or Terminal Input)
USB
USB 3.0 * 2
Serial Porte
Port 1: RS-232/422/485 * 1; Port 2: RS-232/485 * 1
RAM
4GB LPDDR4 Standard
