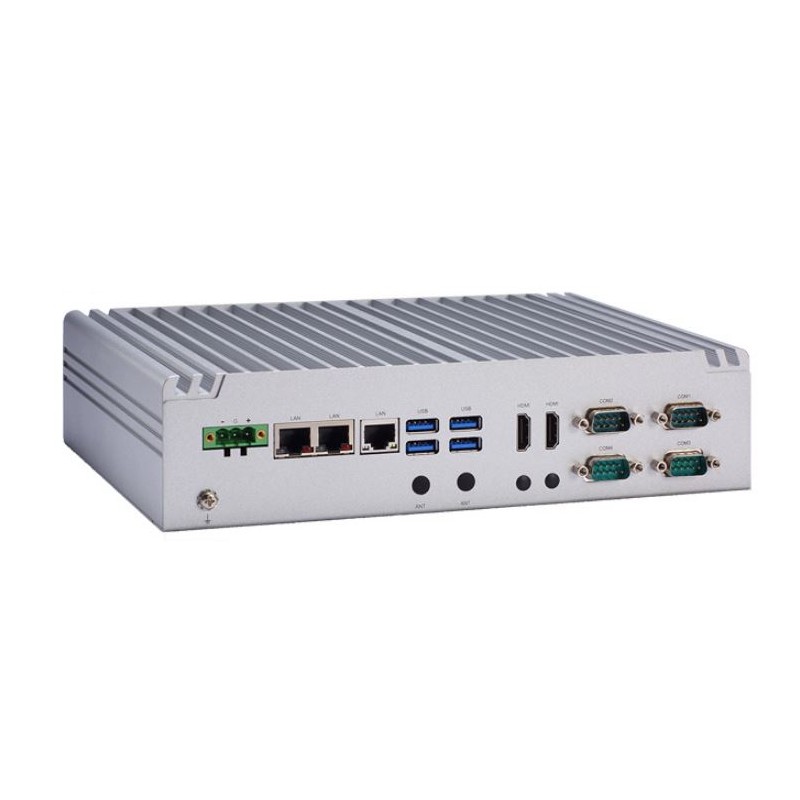

Fanless Embedded PC 8th Gen Intel® Core ™ I7 / I5 / I3 & Celeron® ult, 2 HDMI, 1 VGA, 3 GBE LAN, 6 USB 9~36 VDC, -40°C to +70°C

8th Gen Intel® Core ™ I7 / I5 / I3 Celeron® ULT-prosessor (Whisky Lake-u)
Dual-Channel DDR4 2400 SO-DIMM Opptil 64 GB Minne
2x HDMI, 1X VGA
3x GBE LAN
4x COM
6x USB
FANLESS -40°C til + 70°C * Driftstemperatur
9 til 36 VDC Wide Range DC Strøminngang
Option: WALL, DIN-Mount

EPC-IX-2H1V6U3E
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industriel Embedded PC, Kan leveres med Celeron, i3, i5 eller i 7 processor. Udvidet temepratur område! Bemærk standart er allr tilbud med standard ram og SSD. Hvis der ønskes udviddet temepratur område skal det specificeres.

CPU
Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE & Celeron® 4305UE (TDP up to 15W)
Chipset
soc
BIOS
AMI
Antenne
4 x SMA-type antenna opening
Approval
CE, FCC Class A
Chok/Vibration
Shock IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) Vibration IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Digital I/O
8-CH TTL DIO via DB9 female
Dimensioner
((W x D x H) 250 x 170 x 60 mm (9.84” x 6.69” 2.36”)W x D x H) 250 x 170 x 60 mm (9.84” x 6.69” 2.36”)
Driftstemperatur
-40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)
Ethernet
3 x 10/100/100 Mbps Ethernet (Intel® i219LM, Intel® i211AT)
Forsyning
9 to 36Vdc Phoenix VDC power input connector
Hukommelse
2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB
IP-Tæthed
IP40
Lyd
1 x Audio (Mic-in/Line-out)
Montering
option need to be ordered Wall mount kit DIN-rail kit
Msata
1 x mSATA (enabled in BIOS setting)
OS SUPPORT
EOS Support Win 10 IoT, Linux
Porte
2 x RS-232/422/485 2 x RS-232
SIM kort
1 x Front-access SIM slot
Udgange
2 x HDMI (lockable) 1 x VGA
USB
2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 2 x USB 2.0
Vekt
1.38kg (no ram no ssd)
Watchdog
255 levels, 1 to 255 sec.
