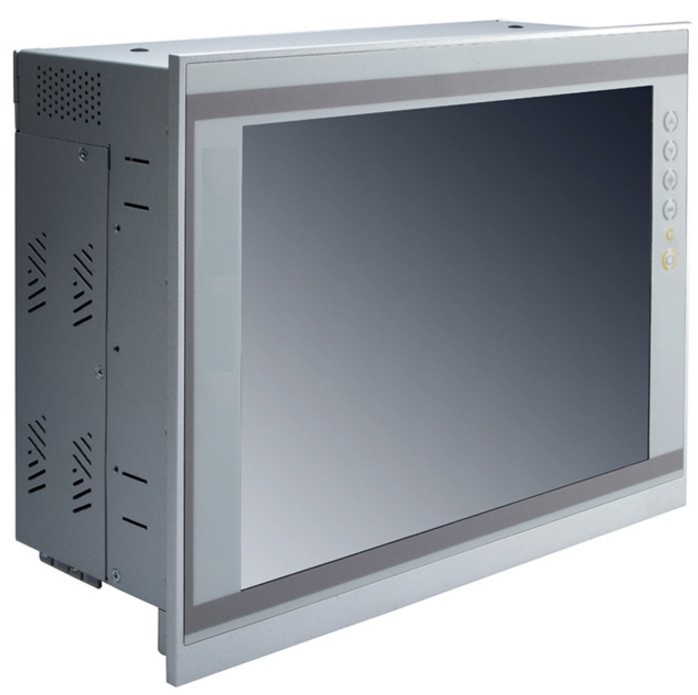

12.1" Panel PC med PCIex udvidelse, i7/i5/i3, Celeron, Pentiom & Xeon support

12.1"
Touch
Barbone
LGA 1155 3 62 Gen. CPU
Max. 16GB RAM
3 x COM
6 x USB
2 x PCIe x8


IPP12I-PCIEX
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Build To Order

Kan levere komplet med CPU, RAM, SSD/HDD og OS. Kontakt vores salgsafdeling vedr priser.

CPU
LGA1155 socket 3rd & 2nd Generation Intel® Core™ i7/ i5/ i3, Celeron®, Pentium® & Xeon® processors
Chipset
Intel® C216
Annen
Built-in speakers
Approval
CE EOS
Chok/Vibration
1.0G, 5-500Hz, random
Dimensioner
(W x D x H) 311.5 x 111.85 x 250 mm (12.26" x 4.4" x 9.84")
Ethernet
2 x 10/100/1000Mbps
Forsyning
100 ~ 240VAC
Hukommelse
2 x 204-pin SO-DIMM DDR3 up to 16 GB
IP-Tæthed
Aluminum w/ IP65/NEMA 4 rugged protection
Luftfugtighed
10 ~ 95% @ 40°C, non-considering
Lyd
Mic-in/Line-out
Montering
VESA mount Wall mount Rack mount
OS SUPPORT
0°C ~ +45°C (+32°F ~ +113°F)
OS SUPPORT
Windows® XP/XPe, Windows® 7/8.1, Windows® Embedded 7/8

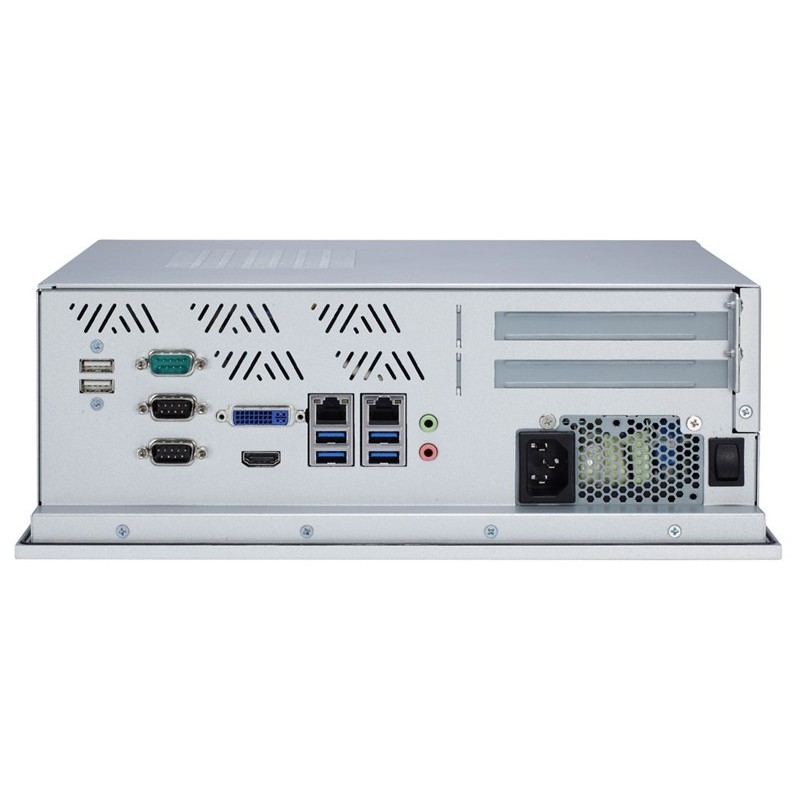

Porte
1 x RS-232 1 x RS-232/422/485 with 5V & 12V 1 x RS-232 with 5V & 12V
Skærm
12.1" XGA TFT LCD 500 nits 1024 x 768 pixels
Strømforbrug
160W
Touch
5-wire resistive type
Udgange
1 x DVI-I 1 x HDMI
Udvidelser
2 x PCIe x8
USB
4 x USB 3.0 2 x USB 2.0
Vekt
5 kg (11.02 lb)/7.1 kg (15.65 lb)
