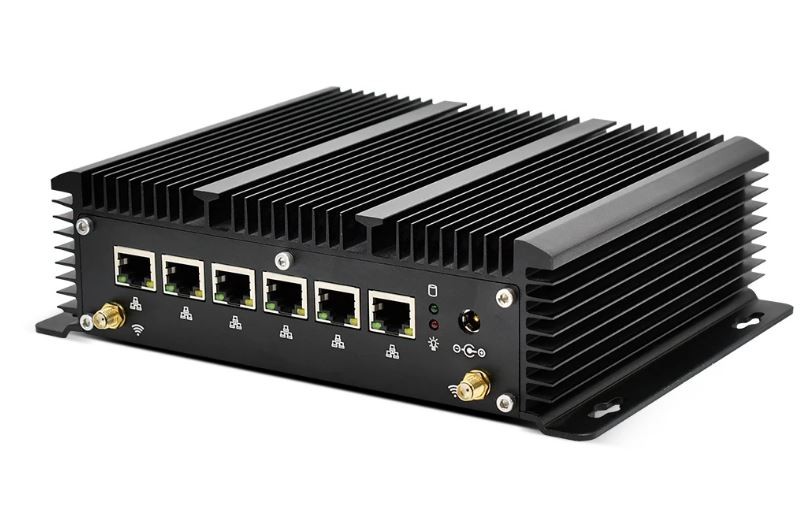

Fanless Mini PC for firewall, VPN eller andre nettverksoppgaver, 6xRJ45, Option: SIM

Fanless System
Kontinuerlig drift
Celeron 3860U, Option: I3, I7
6x Intel I201 / I211 Gigabit RJ45 LANS
2X RS232 COM PORTS
1X MSATA SSD + 1 * 2.5 ' 'SSD / HDD
Option: 1x SIM slot, 3G/4G/WiFi
Brukes i Firewall, Network Server, Network Security, VPN Router osv.
Full Aluminium Alloy
Slim Design 209x150x57mm.
Support Watchdog, Awal, RTC, WOL, PXE, Reset Funksjoner.
OS Støtte: Windows® 7/8/10, PfSense, WES 7/10, Linux

EPC-3865U-6ETH
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industriel embedded løsning velegnet til Firewall, VPN Router, Netværksserver,Netværks sikkerhed.

CPU
Celeron 3865U Option: i3, i7
Dimensioner
209x150x57mm
Driftstemperatur
-20C° to +60C°
Forsyning
12V DC
Hukommelse
1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB DDR4-2133, 2400, 2666
Msata
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
Netværk
6x Intel(R) i210/i211-AT
OS SUPPORT
Pfsense, Windows®10, WES 10, LINUX etc
Porte
1 x DB9 RS232 COM, 1 x RJ45 RS232 COM
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
USB
4 x USB3.0
