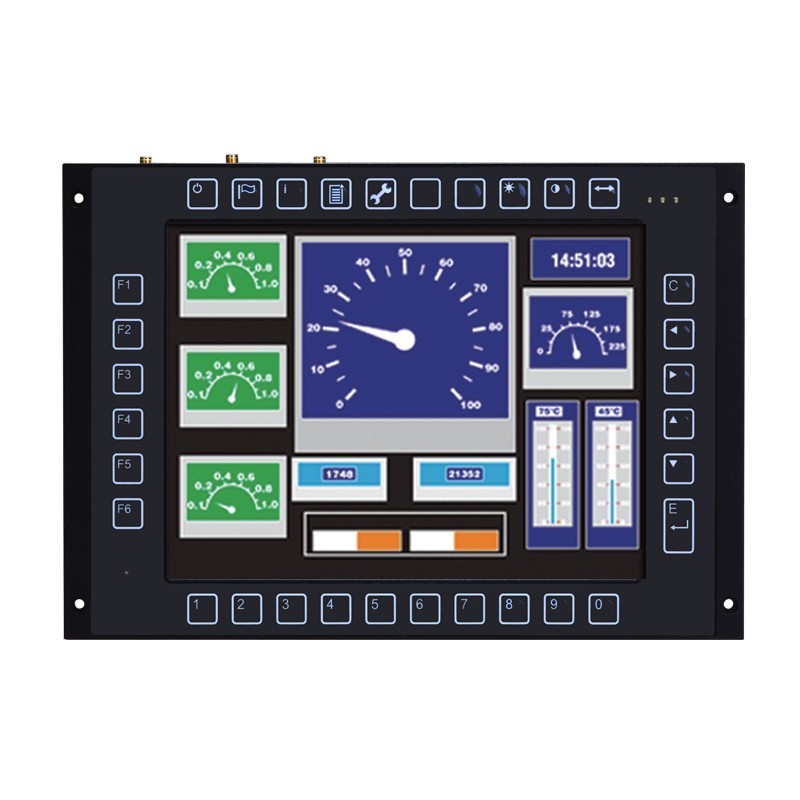

10.4" Panel PC godkendt til Tog brug, (EN 50155 for railway)

Sunlight readable 10.4"
1000 Nits
Auto-dimming
-25°C to +70°C
EN 50155 certified for railway

IPP10.4EN50155
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Panel PC specielt udviklet til brug i tog.

Har certificering EN50155.

Vi har mulighed for at tilbyde andre størrelser og løsninger der kræver speciel godkendelser.

Chipset
SoC Integrated
Annen
1 x isolated CAN bus 1 x isolated DIO (6-IN/2OUT) (phoenix type) 1 x isolated DC for power input (M12, A-coded)
Approval
EN 50155, EN 50121-3-2 EMC, EN 61373 (Shock/Vibration), EN 45545 (fire) certified Compliance with UIC 612-01 (keypad)
Dimensioner
310 x 65.05 x 216 mm (12.20" x 2.56" x 8.50")
Driftstemperatur
-25°C ~ +70°C (-13°F ~ +158°F)
Ethernet
2 x isolated 10/100/1000Mbps (M12, X-coded)
Forsyning
16.8V to 30V DC or 77V to 137.5 VDC 10ms hold up time (S2) Power Comsumpt
Hukommelse
DDR3 4 GB (default) or 8 GB memory onboard
IP-Tæthed
Front Bezel IP65, NEMA 4 rugged protection, aluminum front bezel
Lyd
Line out/Line in/speaker out
Montering
Suspension mount VESA mount
Msata
1 x mSATA
OS SUPPORT
Windows® 10, Windows® 8/8.1, WES 8, Windows® 7, WES 7
Porte
2 x isolated RS-232/422/485 (M12, A-coded)
Skærm
10.4" SVGA TFT LCD 1000 nits 800 x 600 pixels
Touch
5-wire resistive touch panel
Udvidelser
2 x PCI Express Mini Card
USB
2 x USB 2.0 (M12, A-coded)
Vekt
2.4 kg (5.29 lb) / 5 kg (11.02 lb)
Watchdog
255 levels, 1 ~ 255 sec.
