Innebygd PC BT 4x RS232 / 485, 2 GB RAM, Bred Temperatur -20 ° C ~ 70 ° C Option (3 / 4G, Wifi, GPS, BT)

Integrert Intel® Bay Trail-I E3825 CPU 1,91GHz
Innebygd 2GB DDR3L 1022MHz
VGA
Audio
4 x COM
2 x Intel GbE LAN
4 x USB 2.0 (2 interne, 2 eksterne)
2 x Mini PCIe + 9V ~ + 36V

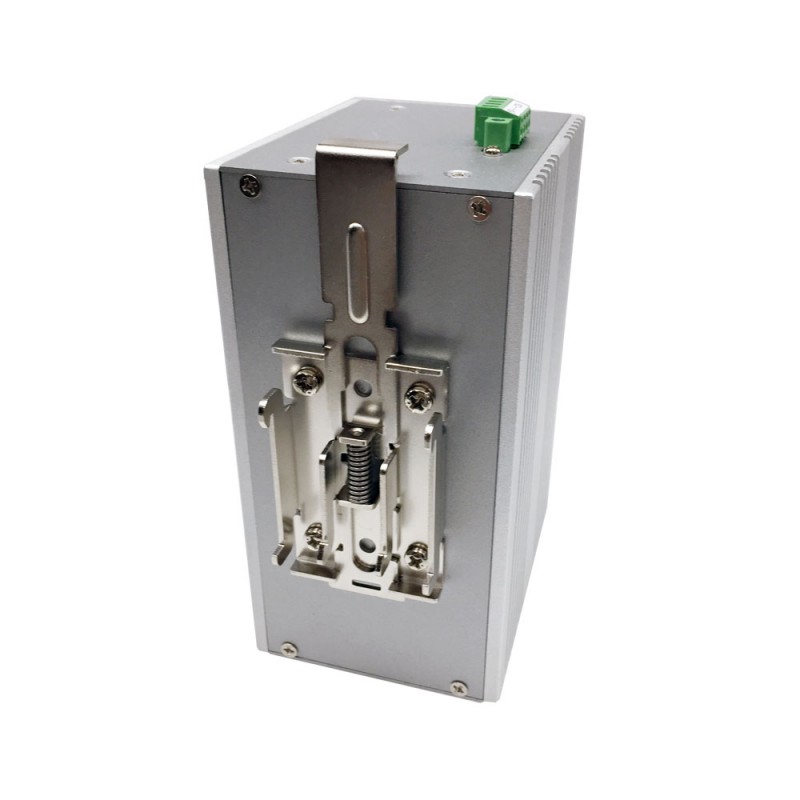

DIN-skinnefeste
OS-støtte: WIN 7 (32bit / 64bit) / 8.1 (32 / 64bit) / 10 (64bit)
Linus-støtte: Ubuntu 14.04, Fedora 19, Fedora 20, Rad hat enterprise linux 7

EPC-BT-DIN
Ring 67 104 460 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Embedded Baitrail PC, kan levere med OS, SSD / HDD installert klar til bruk.
Andre modeller med mindre eller kraftigere CPU er tilgjengelig. Kontakt salg vedrørende modell rog løsninger.

CPU
Intel Bay Trail-I E3825 1.91 GHz (DUAL Core)
Chipset
Intel BAY Trail-I E3825
BIOS
Insyde UEFI BIOS
Dimensioner

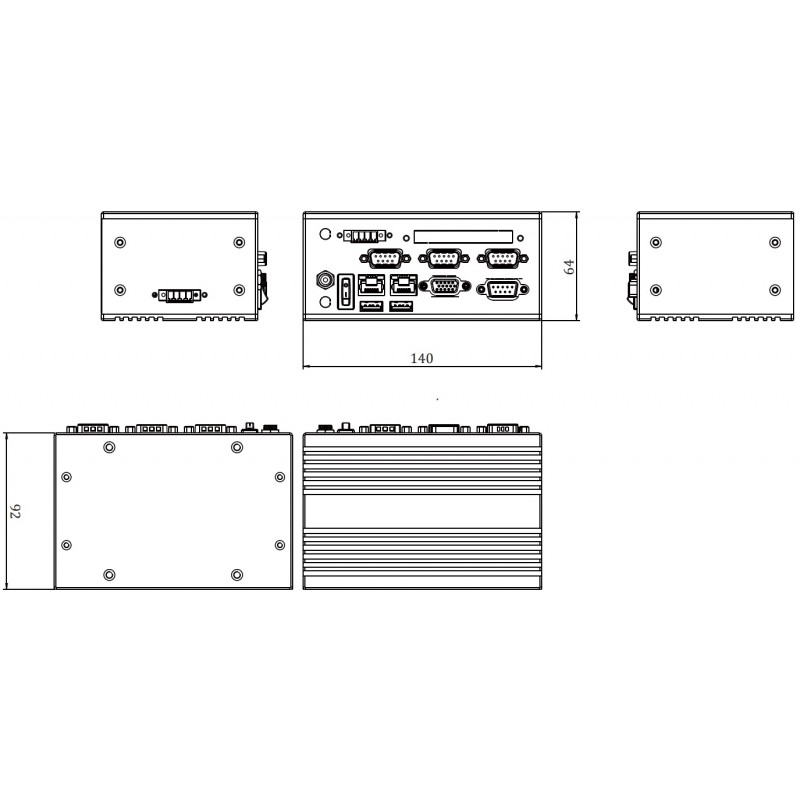

64H x 140W x 92D mm
Driftstemperatur
-20°C ~ 70°C, mSATA 70°C / 2.5" HDD 60°C
Ethernet
2 x Intel 10 / 100 / 1000 Mbps
Grafik
Intel's 7th generation (Gen 7) graphics and media encode / decode engine, Supports DX*11, OpenGL 3.0 (OGL 3.0), OpenCL 1.2 (OCL 1.2), OpenGLES 2.0
Hukommelse
2GB Onboard 1066MHz
Lyd
High Definition Audio Specification, Support Line-out / Mic-in. Amplifier Is option
OS SUPPORT
WIn 7 (32/64bit) Win 8.1 (32/64bit), win10 (64 bit),Ubuntu 14.04, Fedora 19, Fedora 20, Rad hat enterprise linux 7
Porte
4 X RS232/485 (1 have option for RS232/422/485)
SATA
1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s) (Share with Full Size mSATA) 2 x mini card socket for mSATA
Udgange
VGA DB15HDM Female
USB
4 x USB 2.0 (2 x external + 2 x internal)
Vekt
0.75kg
Watchdog
Hardware Watch Dog Timer, 0~255 sec programmable
