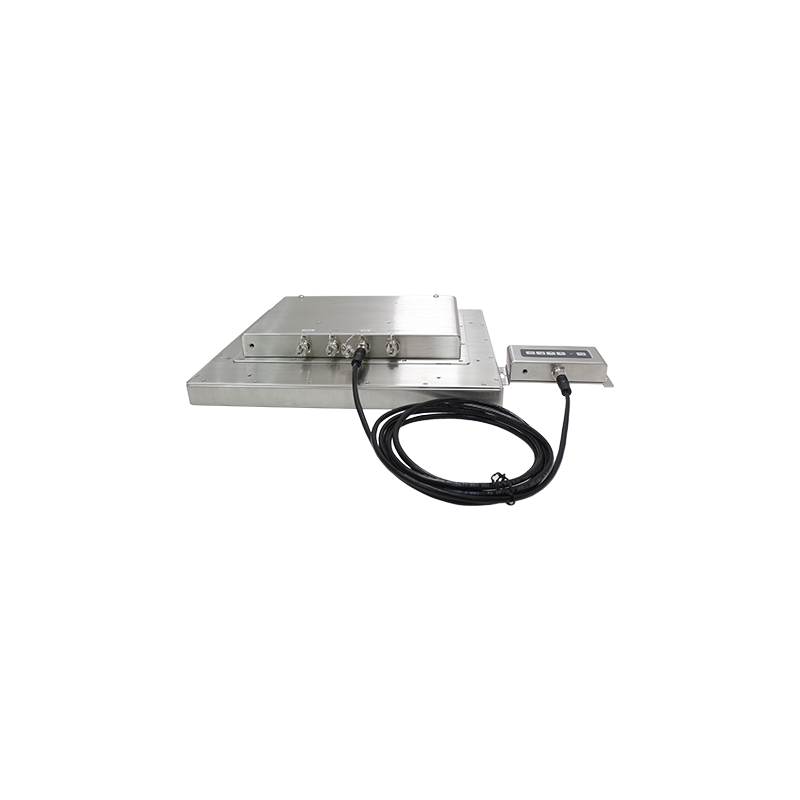

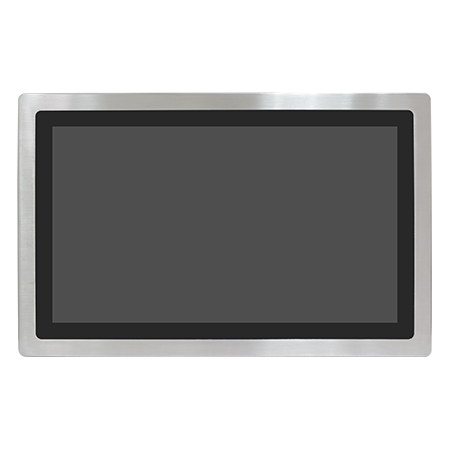

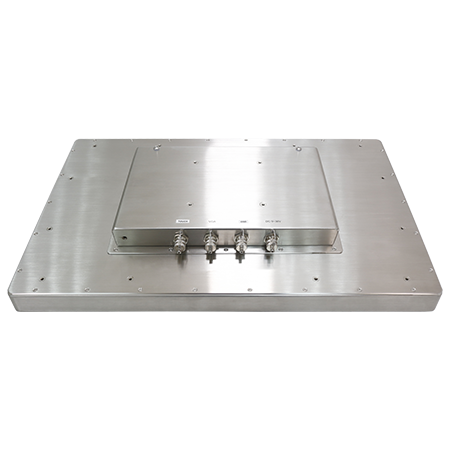

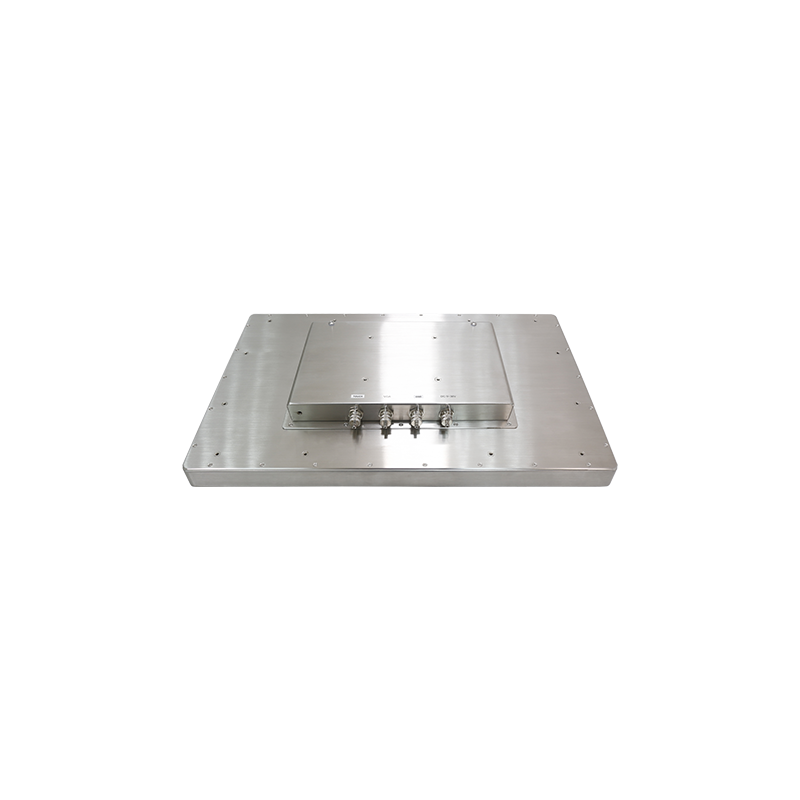

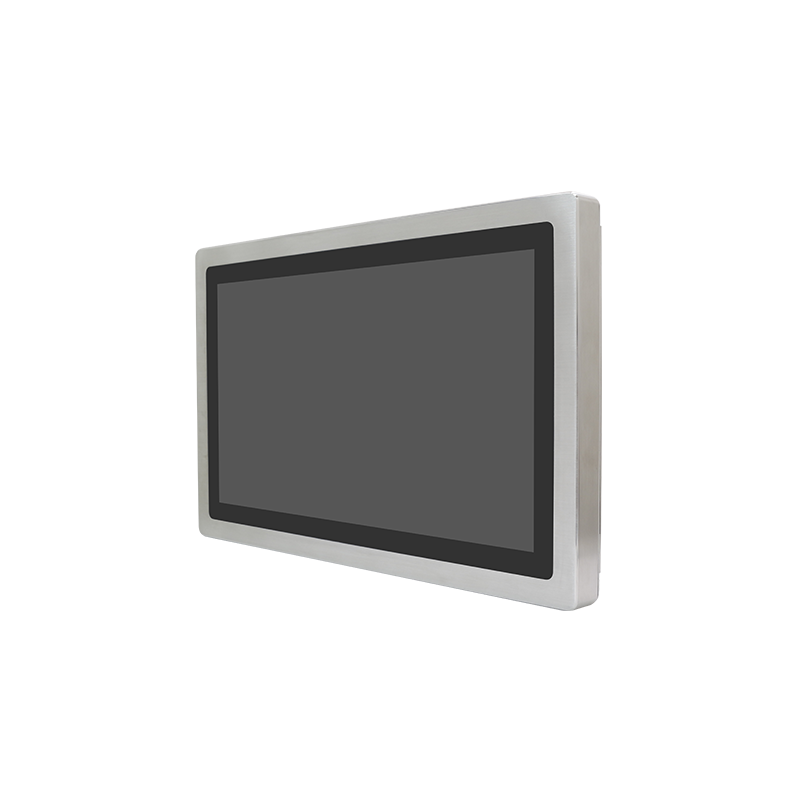

21,5" skjerm, ATEx Zone2/22 godkjent, Projected Capacitive Touch, VGA, USB
21,5" TFT-LCD
1920 x 1080 oppløsning
Projisert kapasitiv touch via USB
VGA-videoutgang
Total IP66 klasse med M12 vanntett kontakt
Strøminngang 9-36VDC
Panelfeste og VESA-feste
316 Stainless Steel
ATEX/IECEx Zone2, Zone22 og C1D2/C2D2/C3-sertifisert
Ring 67 104 460 for pris
Antall
På vei inn
close
Specifications
| USB | 1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain |
|---|---|
| Driftstemperatur | -20~60°C |
| Forsyning | DC 9~36V, 1 x M12 3-pin for DC power connector with waterproof cover and chain |
| Lysstyrke | ca. 300 cd/m² |
| Opløsning | 1920 x 1080 |

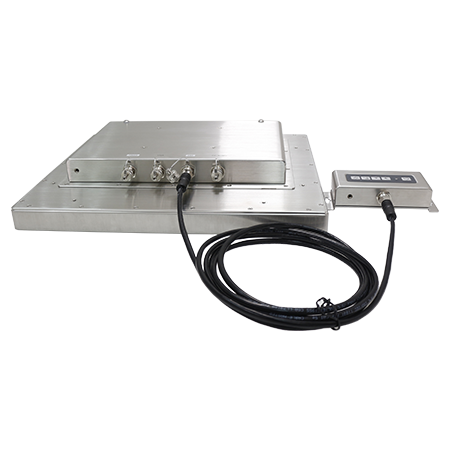

| OSD | 1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain |
| Touch | Projected capacitive touch |
| Vekt | 12.3 kg |
| Dimensioner | 571 x 362 x 75.1 mm |
| Certification | ATEx / IECEx Zone2 / Zone22 |
Certification:
CE / FCC Class A
ATEx / IECEx Zone2 Ex ec ic IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987
