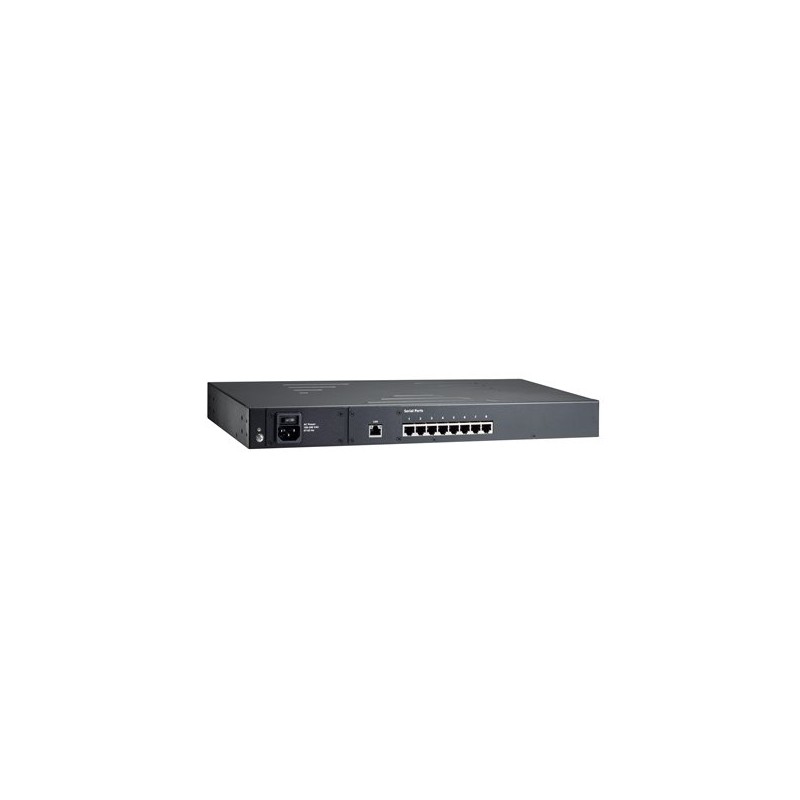

8 Ports serial port server, RS485 / RS422, Moxa Nport NP5630-8 Serial Device Server
8 Ports serial port server, RS485 / RS422, Moxa Nport NP5630-8 Serial Device Server

8 Ports serial port server, RS485 / RS422, 230VAC Moxa Nport 5630-8

8 pcs. External COM ports via Ethernet and Internet

Virtual-Com Port, Pair-Mode - Back to Back
Socket Modes: TCP Server / TCP Client / UDP
easy to configure
cables Not included (RJ45 for DB9)
Supports Win10 and earlier us, Linux

7,460.31 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number ETH8SER485
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Har man f.eks. en TDC ADSL linie med fast IP-adresse, kan serveren tilgås fra en PC på Internettet.
ETH8SER485 er indbygget i et kabinet med LED-indikatorer for
hver port på fronten og 8 RS232 eller RS422/485 serieporte på bagsiden.
Det går produktet velegnet til montering i 19" rackskab. Lysindikatorerne (angiver Tx og Rx)
viser hvilke porte, der er forbundet og aktive. Efter installation af COM/tty driverne (medfølger),
vil serieportene blive genkendt af Windows som 'ægte serieporte', eller af Linux som 'ægte TTY-porte'.

Netværk: 10/100 Mbit Ethernet med RJ45 stik, 1,5 KV galvanisk isolation
Serieporte: RS232/422/485 med 8-pin RJ45 stik
Signaler: RS232: TxD, RxD, RTS, CTS, DTR og DSR
RS485 2-tråds: Data- og Data+
RS422/485 4-tråds: TxD-, TxD+, RxD- og RxD+
Konfigureres med:
Indbygget display med 4 trykknapper eller medfølgende konfigureringsprogram
eller WEB/Telnet-konsol
Diverse: Indbygget beeper til alarmering, indbygget realtidsur, indbygget Watch Dog timer
Andet: Forsynes med 100 - 240 VAC, 47 - 63 Hz, eller 48 VDC (-48 modellerne)
Vinkler til montering i 19" rackskab medfølger
Driftstemperatur: 0 - 55o C, 5 - 95 % RH. Mål: 440 x 44,5 x 190 m.m. (B x H x D), 1U højde
