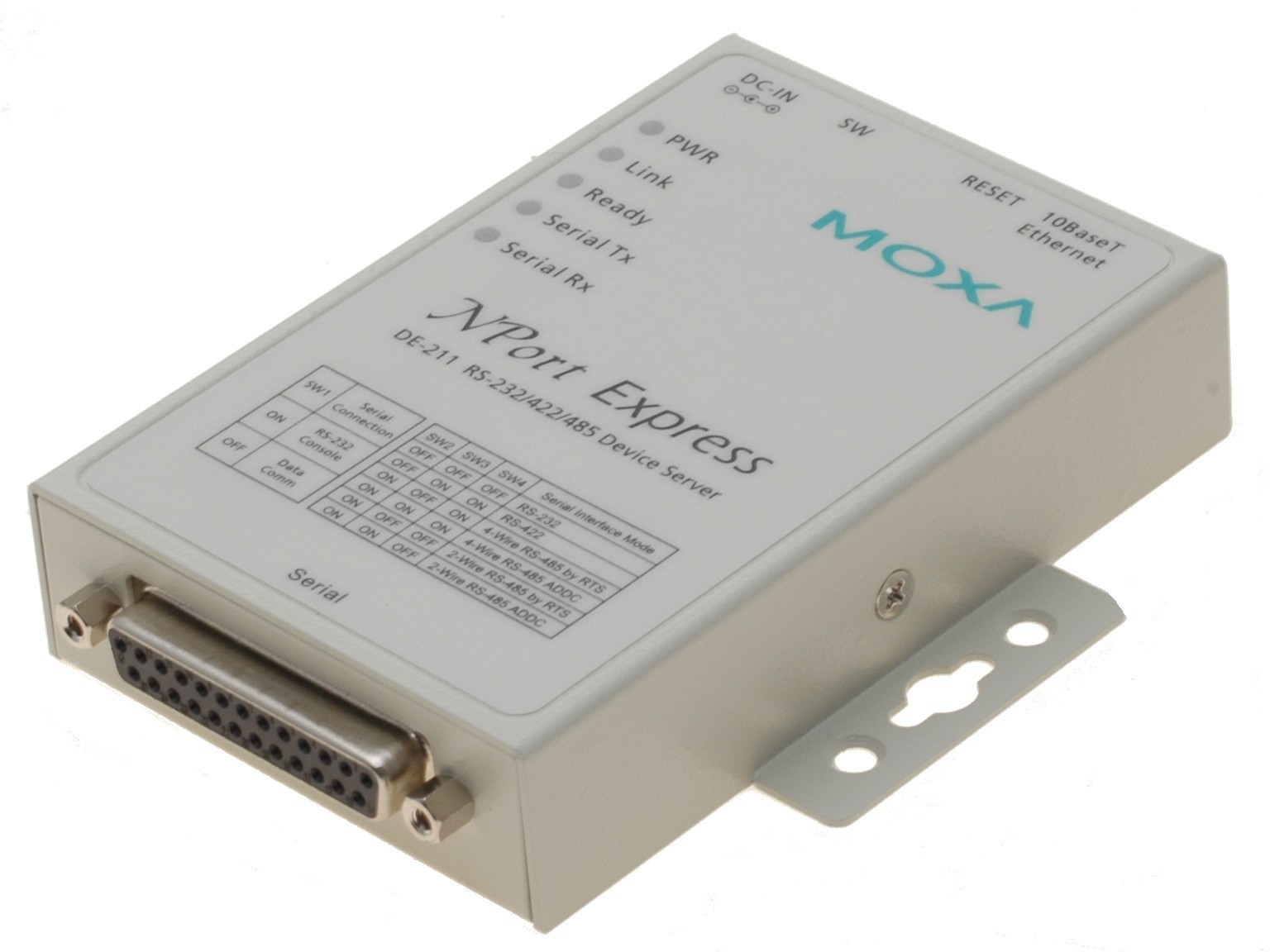

1 Port serial port server RS232 / 422/485, MOXA DE-211, RS232 / 422/485 over Ethernet DB25

1 serielportserver port RS232 / 422/485, DE-MOXA 211 Serial Device Server

External COM ports via Ethernet and Internet
3-in-1 Serial Port: RS-232, RS-422, OR RS-485
Modes: TCP Server, TCP Client, UDP
Ethernet Modem
Pair Connection
Real Com / Tty Drivers for Windows and Linux
2-wire RS-485 with Patented Automatic Data Direction Control (Addc®)
Built-in 15 kV ESD Protection for All Serial Signal

2,150.79 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number ETH1SER+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Serieportserveren gør det muligt at integrere enheder med serielt interface (RS232/422/485)
i TCP/IP-netværker for på denne måde at overføre de serielle data via et lokalt netværk eller via
internettet uden afstandsmæssige begrænsninger. Serielle enheder, som feks. måleinstrumenter, stregkodelæsere,
etiketprintere osv., kan således styres og evalueres centralt fra en valgfri placering.

Ethernet Interface
Number of Ports: 1
Speed: 10 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface
Number of Ports: 1
Serial Standards: RS-232/422/485 (selectable by DIP Switch)
Connector: DB25 female
Serial Line Protection: 15 kV ESD protection for all signals
RS-485 Data Direction Control: ADDC® (automatic data direction control)

Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity:    None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 150 bps to 230.4 kbps

Serial Signals
RS-232    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422    Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w    Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w    Data+, Data-, GND

Software
Network Protocols: DHCP, BOOTP, Telnet, TCP, UDP, IPv4, ICMP, ARP
Configuration Options: Serial Console, Telnet Console, Windows Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Physical Characteristics
Housing    Metal
Weight    480 g
Dimensions: 67 x 100.4 x 22 mm

Environmental Limits
Operating Temperature: 0 to 55°C
Storage Temperature: -40 to 75°C
Ambient Relative Humidity: 5 to 95% (non-condensing)

Input Voltage: 12 to 30 VDC
Power Consumption: 180 mA @ 12 V, 100 mA @ 24 V

Andre produkter i samme kategori:

Moxa NWP2250 is a 2 port wireless serial port server, wireless 2 x RS232 / 422/485,
MOXA NportW2150-EU trådløs serielportserver 2 x RS232/422/485

MOXA NportW2150-EU

4,920.63 NOK
Item Number: ETH2SER-RL
Physically in stock
ADD TO CART
Quick view
RS232 / RS485 / RS422 serial port server 4-port Ethernet 2 x SFP Industrial EMC protected. DIN
4 Ports serial port server, RS232 / RS422 / RS485 Serial Device Server for fiber network, 2 x SFP ports

Monitor, manage and manage industrial devices
2 x SFP slot for fiber transceiver (SM or MM)
Industrial EMC protection, temperature operation wide, -40 ° C ~ 85 ° C
fast- Ethernet 2 x 100/1000 SFP slots with RSTP Redundans
4 software Select RS232 / RS485 / RS422 serial ports, up to 921Kbps
TCP Server / Client, UDP, Virtual com and tunneling modes are supported
Embedded security with PPTP, IPSec or OpenVPN Client / Server
Redundant 12 ~ 48 VDC Power entries
Configuration via Web Browser / Serial Console / Telnet / Windows Utility
Robust metal cabinet with wall or DIN rail mounting

9,071.42 NOK
Item Number: ETH4SER-A
ADD TO CART
Quick view
MOXA NPORT 5650-16 16 Ports RS232/422/485 Serial Device Server
16 ports Moxa NPort 5650-16, serielportserver

16 ports RS232/422/485  Serial Device Server
10/100Mbit
MOXA NPort 5650-16
19" Rack mount
Seriel Port Server

18,928.55 NOK
Item Number: ETH16UNI-P
ADD TO CART
Quick view

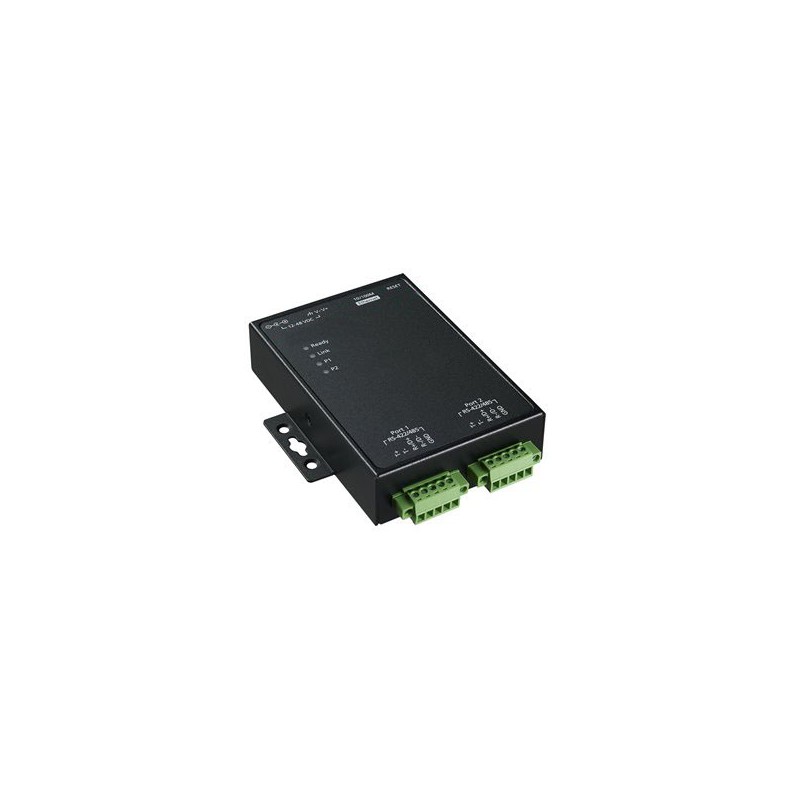

Moxa Nport 5230A-T is a 2 port serial port server RS422 / 485 optoisolated.
2 Ports serial port server RS422 / 485 Optoisolated, Moxa Nport 5230A-T. Serial Device Server

External COM ports via Ethernet and Internet

Serial Device Server with RS422 or RS485 via Ethernet and Internet.
RS422 / 485 seriesport via screw terminal
Dual DC Power input with Power Jack and Terminal block
Power supplies from 12 - 48VDC
DIN mounting

6,933.33 NOK
Item Number: ETH2SER5230A
ADD TO CART
Quick view
Serial port server is COM port via Internet and Ethernet. Atop SE5201-DB
1 port serial server RS232 / RS422 / RS485. Serial Device Server RJ45, DB9, 9 - 30VDC

External COM port over Ethernet and Internet
RS232/422/485
Baud rate: 1200 - 230.4kbps (2-wire)
Max. baud rate at 4-wire RS485 up to 921.6kbps
Atop SE5201-DB Serial Device Server
10/100Mbit Ethernet.
Serial port via DB9 male connector
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Power is supplied from 9 - 30VDC or 5VDC (power jack)
Power supply not included
DIN kit (option)
Dimensions: 65 x 78 x 28mm (without wall bracket)
Dimensions: 88.5 x 84 x 27.8mm (with wall bracket and DB9 port)

2,420.63 NOK
Item Number: ETH1SER-MINI+
Physically in stock
ADD TO CART
Quick view
Seriel portserver til EthernetforDevice servere
Seriel portserver til Ethernet

External COM port over Ethernet and Internet.
RS232 seriesport via DB9 Han, or
RS422 / 485 port via screw terminal block
Power supplied from 12 - 48VDC. Has redundant DC input.
DIN mounting

2,169.84 NOK
Item Number: ETH1SER-P
Physically in stock
ADD TO CART
Quick view

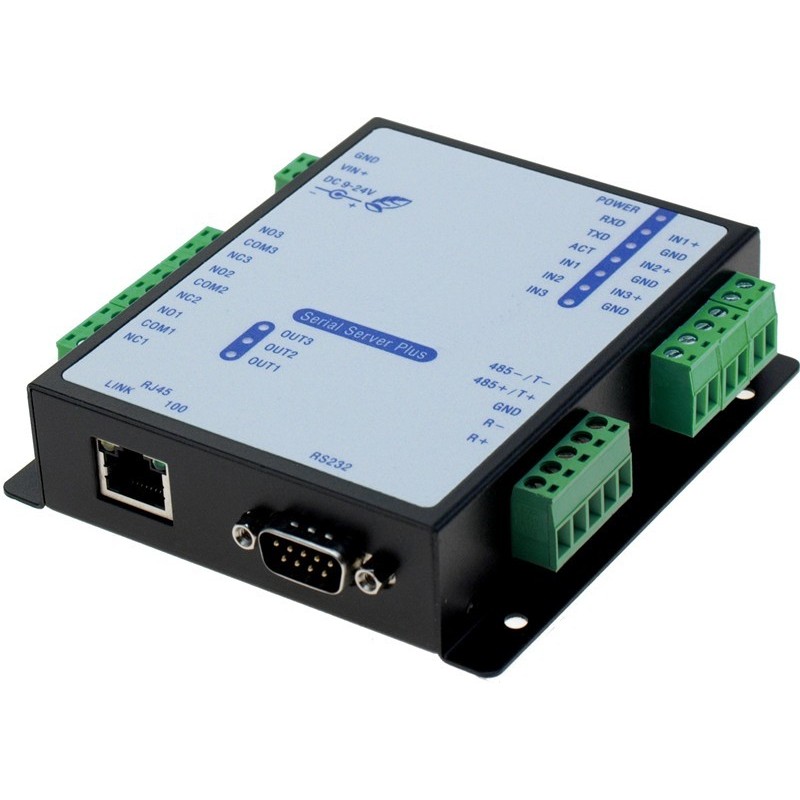

CYT-133SC is a serial port server - 1 x RS232 / 422/485 - 3 x digital inputs
