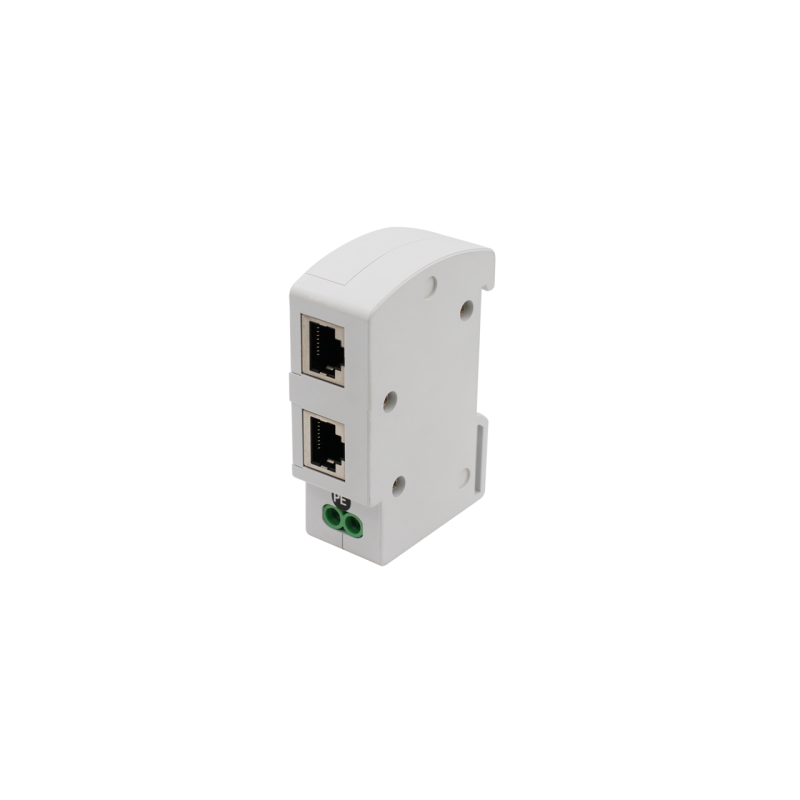

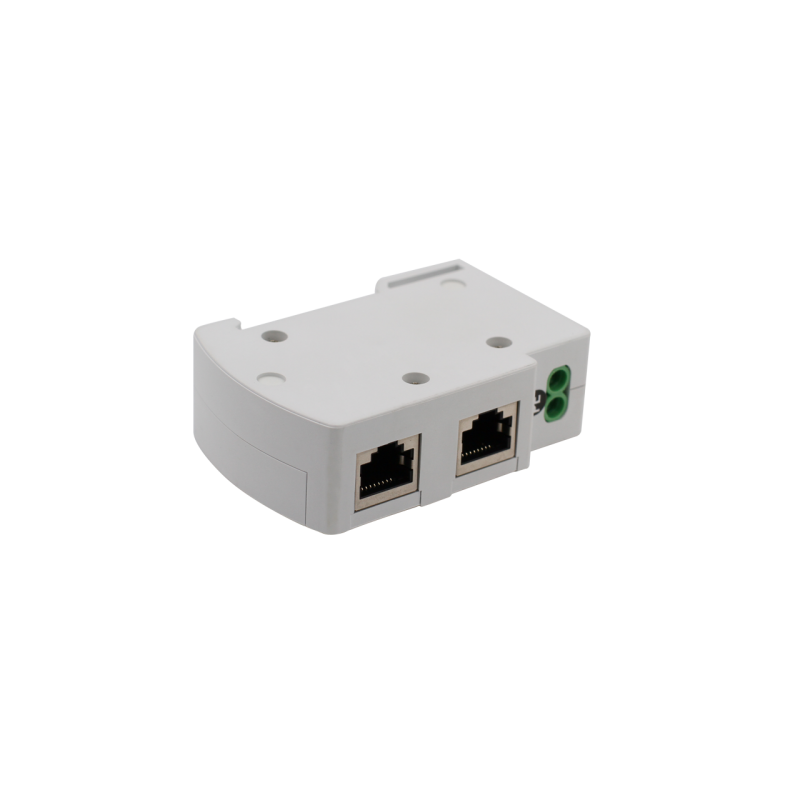

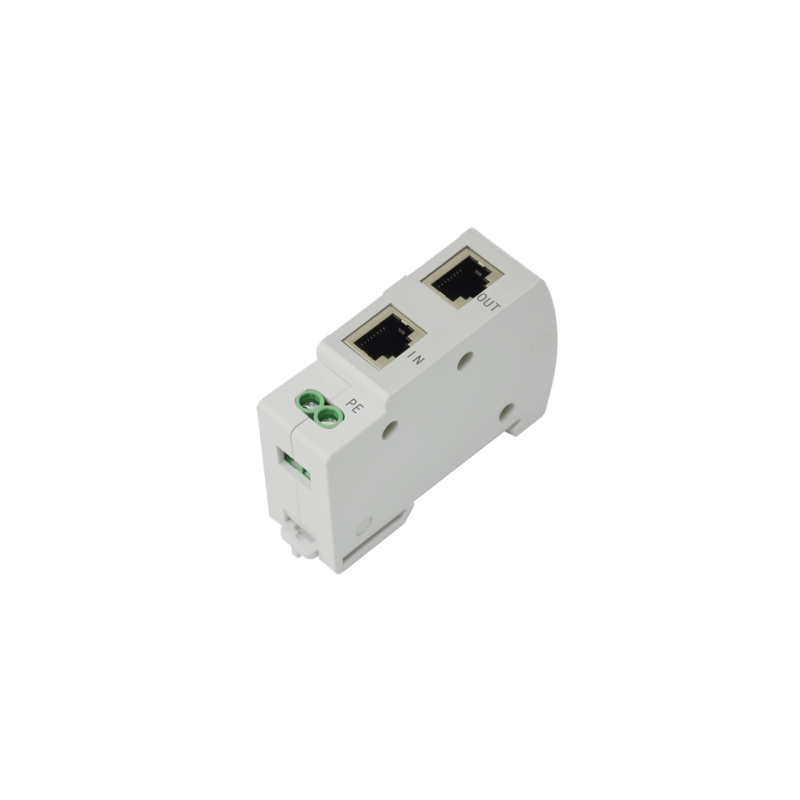

Surge Protector for Gigabit Networks

Transient protection

Accepted voltage on network: 48Volt

Max. voltage on network: 60Volt

Response time: <25 nanosecond

Insertion loss: 0.2dB

Temperature: -40 to +80°C

DIN-mounted

555.56 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number PROT-RJ45-POE-DIN
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF


The device is a Din-rail Gigabit PoE surge protector. It uses a three-stage protection system to suppress overvoltage and overcurrent in network cables. It has an independent ground terminal to ensure stable communication while handling up to 10kA surge current, effectively protecting network equipment.

Andre produkter i samme kategori:

Transient protection of network. Up to 100 / 1000Mbit.
Transient protection of network. Up to 100 / 1000mbit. RJ45 in and out. DIN bracket

Surge Protection to Gigabit network
Max. Working voltage on line: 48V
2KV Impulse protection (10/700 Micro sec)
Loss Factor: 0.2dB
Dim: 112 x 38 x 30 mm

990.48 NOK
Item Number: PROT-RJ45-D
Physically in stock
ADD TO CART
Quick view

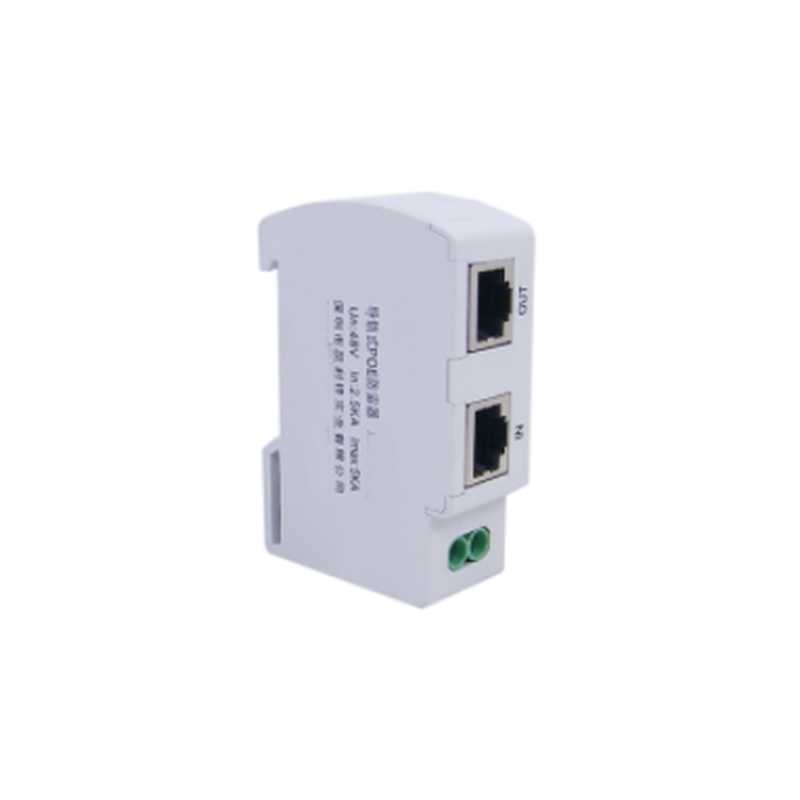

PoE network transient protection (overvoltage in connection with thunderstorm) up to 1000 Mbit
PoE network transient protection (overvoltage during thunderstorms) 2xRJ45, 10/100/1000 Mbit, DIN bracket

PoE surge protection for 10/100/1000Mbit networks
Supports PoE voltage 48VDC / 40Watt
Nominal discharge: 2.5kA, max. 5kA (8/20myS)
Response time: less than 1ns (nano-second)
Transmission loss: below 0.2dB
2 x RJ45 female (in / out)
Protected pin: 4/5, 7/8 (power supply + data), 1 - 8 (data)
Operating temperature: -40 - +70°C
Humidity: less than 90% rh
Dimensions: 93 x 55 x 35 mm
Weight: 73g
DIN bracket
Ground cable of more than 2.5kv must be shorter than 1 meter
Ground cable thickness: Min. 2.5 sq.mm
Ground resistance must be less than 4 ohms
Nothing can protect against a direct lightning strike

831.75 NOK
Item Number: PROT-RJ45G-POE-D
Physically in stock
ADD TO CART
Quick view

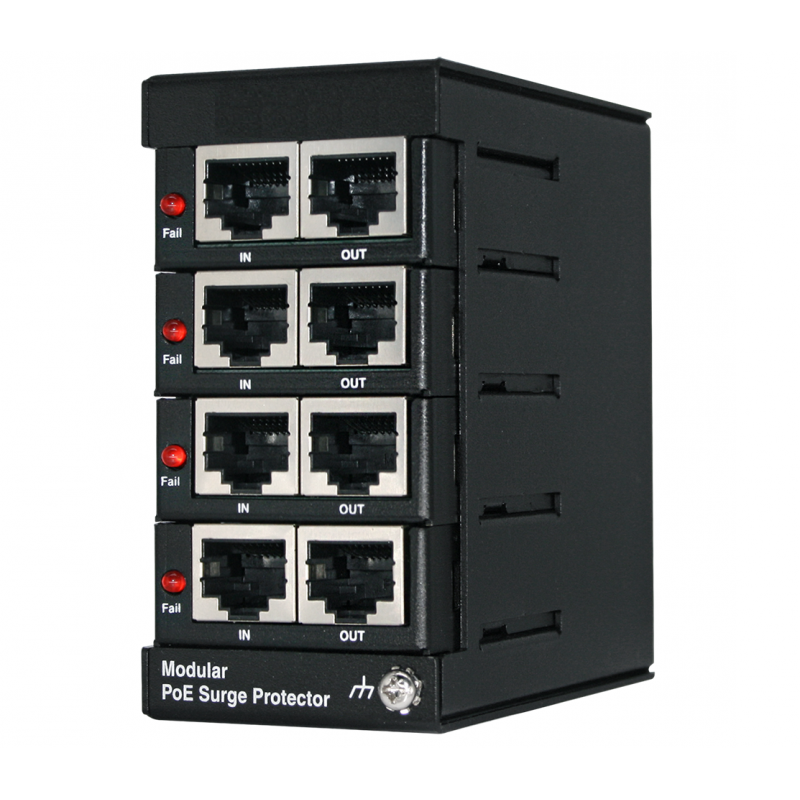

Modular PoE Surge Protection for 8 Wires - Up to 20KV/10KA
Modular PoE Surge Protection 4 channels

Modular design for easy replacement
Supports 10M/100M/1G/2.5Gbps Ethernet
Supports 802.3af / 802.3at / 802.3bt / UPoE
Protects 8 wires of network cable, including PoE
Protects Up to 20KV / 10KA wave
Error indicator LED
Operating temperature from -40°C to 85°C
DIN rail mounting

2,380.95 NOK
Item Number: PROT-RJ45-POE4
ADD TO CART
Quick view
Galvanic isolation for RJ45 10Base-T network, up to 80Mbit. All 4 pairs are isolated
Galvanic isolation for RJ45 10Base-T network, up to 80Mbit. All 4 pairs are isolated. Pin 1, 2, 3, 6.

Insulator for up to 80mbit network speed
1 Port
1 x RJ45 female
1 pc ½meter cable with RJ45 male
12kv isolation voltage.
Unable to transfer PoE

2,842.85 NOK
Item Number: PROT-RJ45-ISO
Physically in stock
ADD TO CART
Quick view

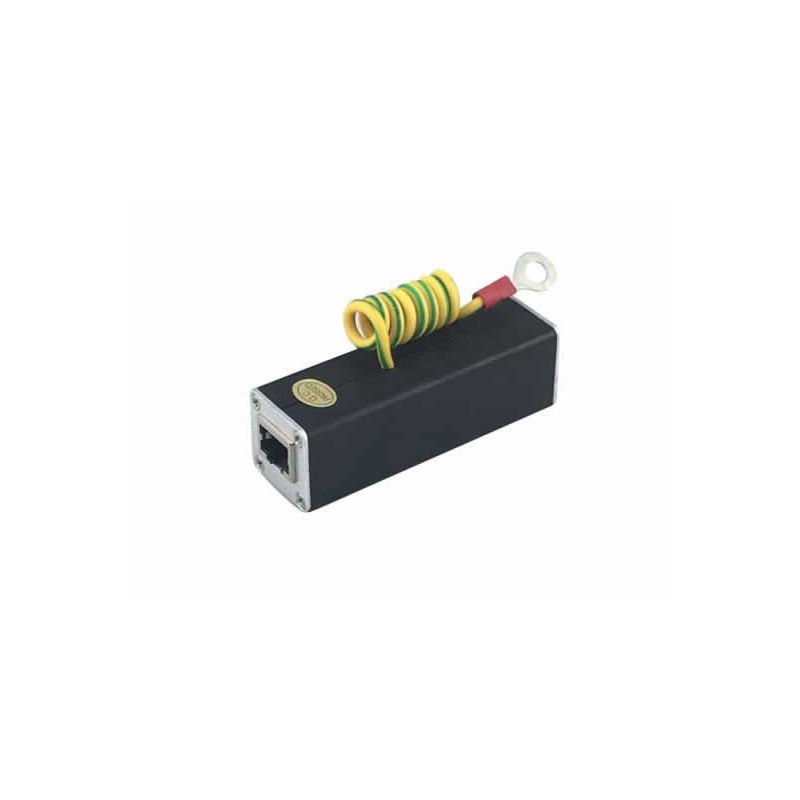

RJ45 network transient protection
Transient network with RJ45 STP for optimal protection

RJ45 two RJ45 Thunder Protector (IP only)
Thunder Protector protect two lightning over-voltage
Surge Over-voltage and electrostatic discharge.
Maximum discharge current 10KA
Aluminum Case with two RJ45 Port

441.27 NOK
Item Number: PROT-RJ45ISO1G
Physically in stock
ADD TO CART
Quick view

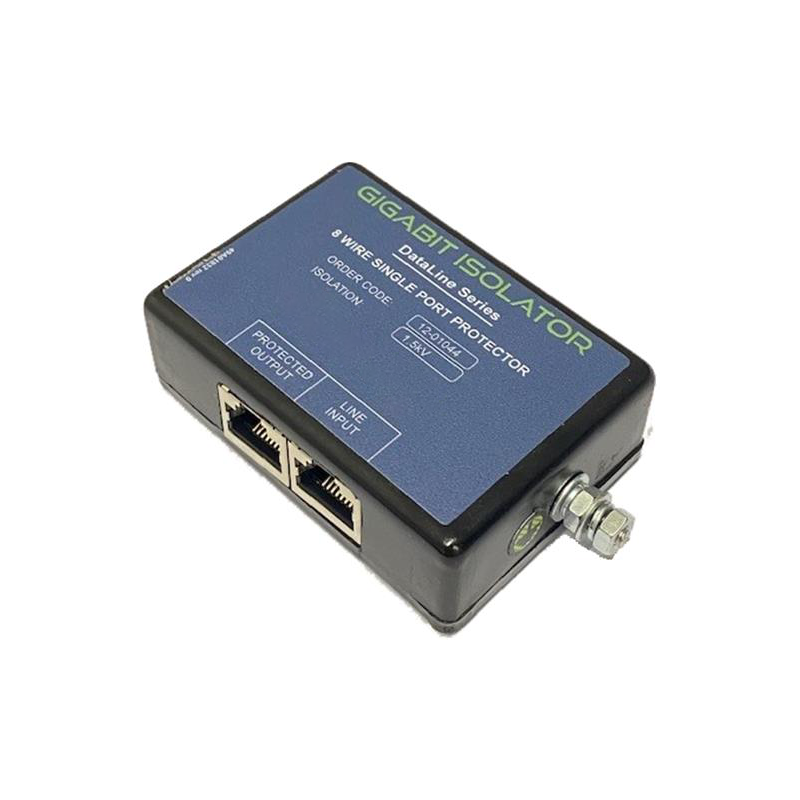

Galvanic isolation for RJ45 1000MBit network
Galvanic isolation for RJ45 1000MBit network, all 4 pairs are isolated.

Isolator for 1000 Mbit network, one port
Insulation on all 4 pairs.
Transient protector - Remember the earth connection (screw)
2 x RJ45 female
Max. Discharge current (fine LL): 40A (8/20 microSec)
Max. Discharge current (coarse LE): 2.5 kA (8/20 microSec)
Residual voltage: <5V (1.2/50 microSec)
Hi-Pot (Pri to Sec) isolation: 1500Vrms, 1mA, 60 seconds
Cannot transmit PoE
Dimensions: 72 x 50 x 25 mm

2,276.19 NOK
Item Number: PROT-RJ45ISO100+
Physically in stock
ADD TO CART
Quick view
Gigabit network transient protection (overvoltage in connection with thunderstorm) up to 10/100/1000 Mbit
Gigabit network transient protection (overvoltage in connection with thunderstorm) up to 10/100/1000 Mbit pin 1-8 are protected

Surge Protection for 10/100 / 1000Mbit network
Review voltage: 5V / 300mA
review loss: Less than 0.2dB
2 x RJ45 female (in / out)
Protected Pin: 1 - 8 (data)
Threshold at 15V
Max Transient current: 5 - 15k Amp
Operating temperature: -40 - +70°C
Moisture: less than 90% RH
Size: 112 x 38 x 30 mm
Weight: 150g
Earth cable of more than 2.5kvmm must be shorter than 1 meter
Earth resistance must be less than 4 ohms
Nothing can protect against a direct lightning strike

1,134.92 NOK
Item Number: PROT-RJ45G-PAS
Physically in stock
ADD TO CART
Quick view
Transient protection for 10/100 Mbit network
Protection for RJ45 10 / 100Mbit network

Transient protection for 10/100 Mbps network

4kV to ground.

2 x RJ45 female

Ground wire is to be connected.

1,339.68 NOK
Item Number: PROT-RJ45ISO4
Physically in stock
