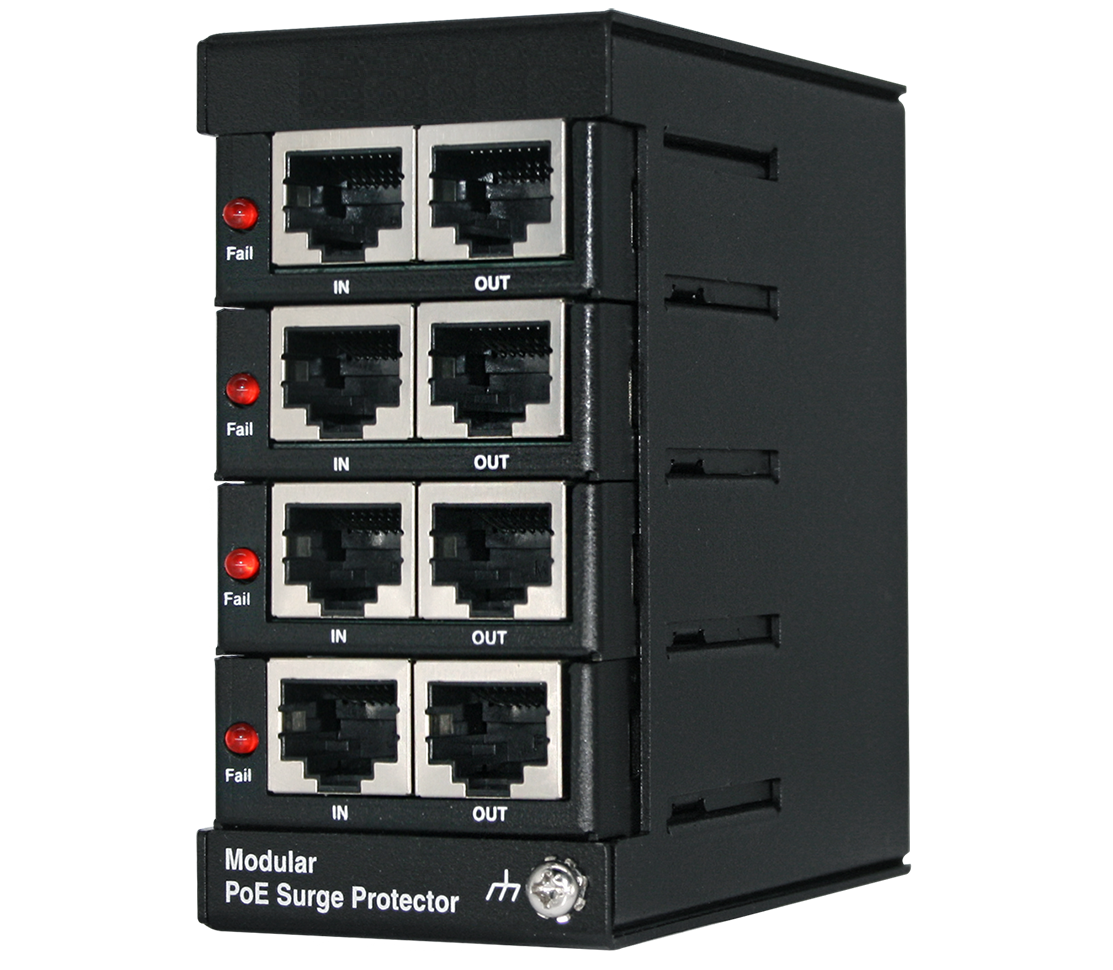

Modular PoE Surge Protection 4 channels

Modular design for easy replacement
Supports 10M/100M/1G/2.5Gbps Ethernet
Supports 802.3af / 802.3at / 802.3bt / UPoE

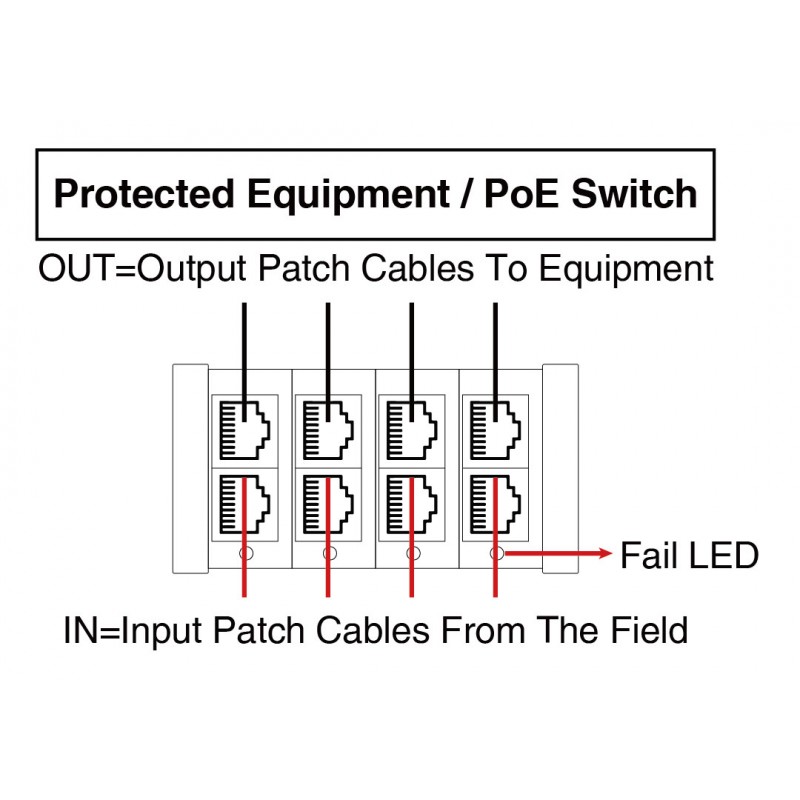

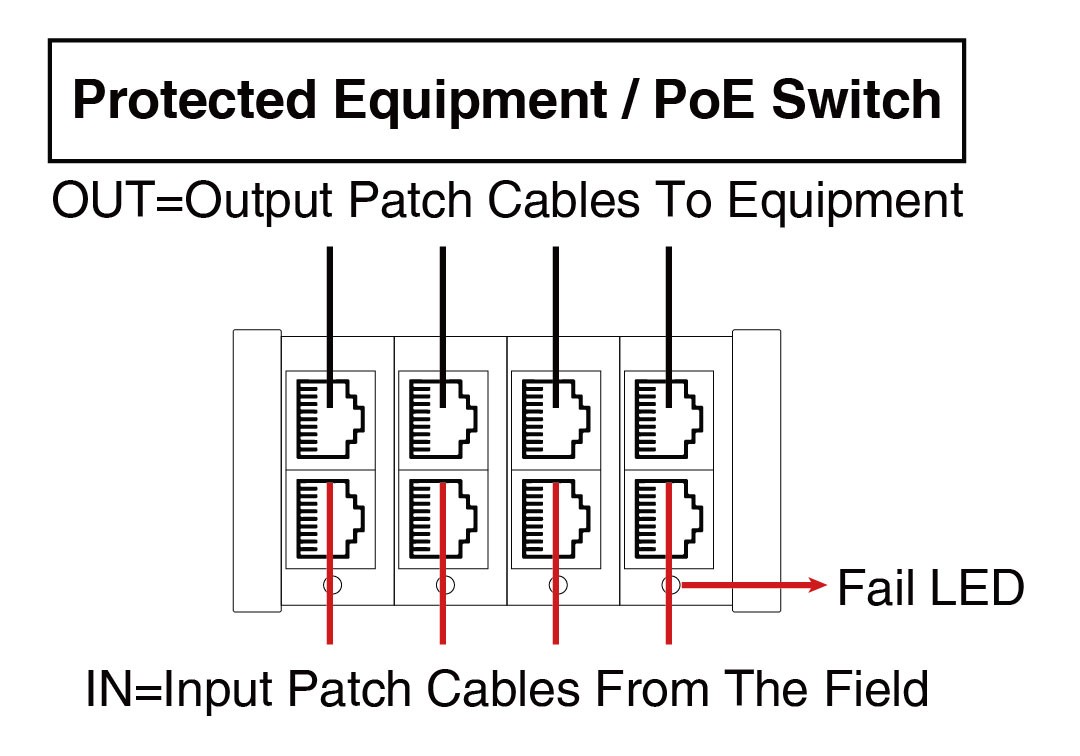

Protects 8 wires of network cable, including PoE
Protects Up to 20KV / 10KA wave
Error indicator LED
Operating temperature from -40°C to 85°C
DIN rail mounting

2,380.95 NOK
Excl. VAT
Quantity
LÆG I KURV
Product number PROT-RJ45-POE4
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -40°C to 85 °C
Beskyttelse 20KV/10KA surge
Kanaler 4-ch Modular
Montering Din-rail mounting
Standarder 802.3af/802.3at/802.3bt/UPoE PoE

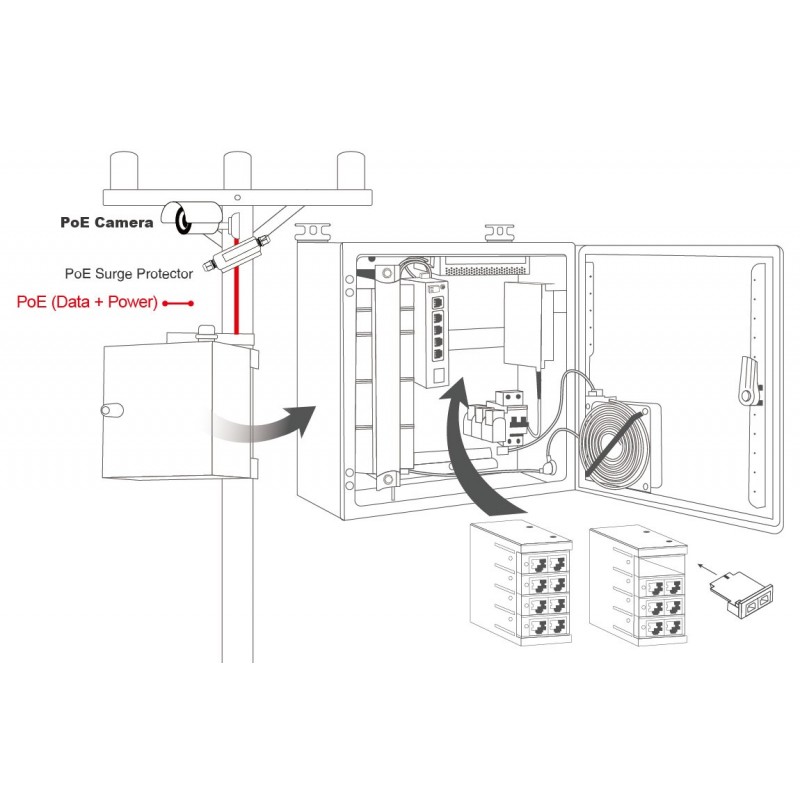

Using surge protectors to protect sensitive and expensive equipment from lightning strikes and surges on Ethernet cables has become very important. POE-PROT are POE surge protectors with modular design that keep POE switches, POE PDS and other IP devices safe from lightning and other forms of electrical interference, such as power surges and spikes over network cables.
