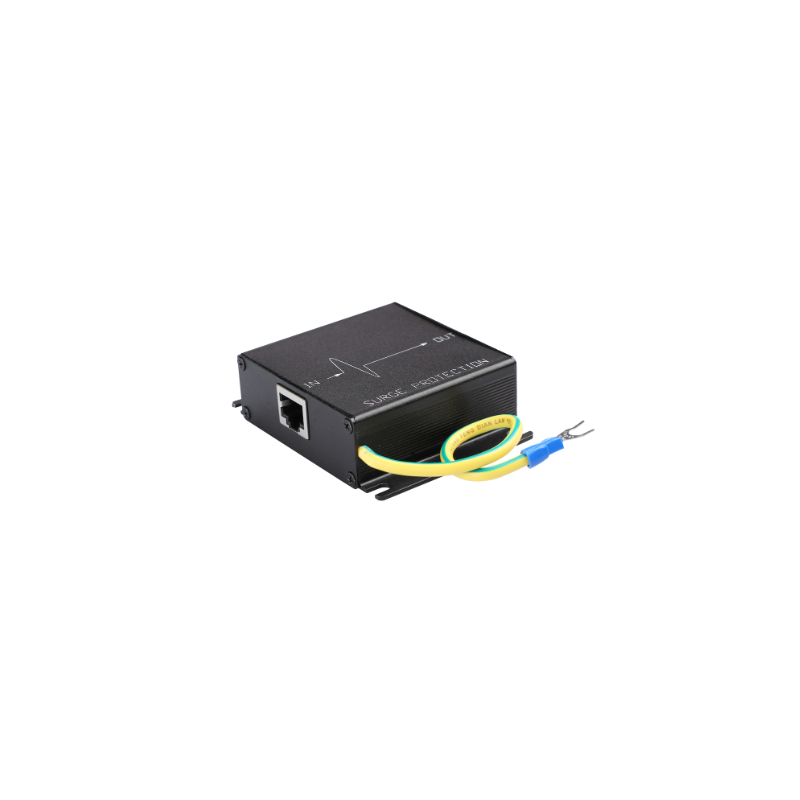

RJ45 Surge protector, surge protection - NOT PoE, Gigabit
Surge protection - NOT galvanic isolation
NOT FOR POE - Max DC is 20VDC !!
Standard RJ45 ports – Supports Cat5, Cat5e, Cat6, and Cat7 connectors.
Full 8-pin protection – Ensures stable power and data transfer to PoE devices.
High-quality components – Premium surge protection elements extend the lifespan to approximately five years.
Low insertion loss – Less than 0.2 dB, maintaining high-quality network signal transmission.
Standard desktop installation – Designed for easy and stable placement
Durable aluminum housing – Improves heat dissipation and fire resistance
IP67 waterproof rating – Provides excellent protection against dust, water and harsh environmental conditions.
Working Voltage Un (V) 6/12
Limiting Voltage Up (V) 20
Normal Discharge Current In (kA) 5
Maximum Discharge Current Imax (kA) 10
Response Time (ns) 1
Insertion Loss (dB) ≤0.2
Transmission Rate (bit/s) 1000M
Working Temperature -40℃～+80℃
Call +45 56 66 20 20 for price
Quantity
Physically in stock
close
Gigabit PoE surge protector. It uses a 3-stage protection system to suppress surges and surge currents in network cables.
It has an independent ground terminal to ensure stable communication while handling up to 10 kA surge current, effectively protecting network equipment.
Installation

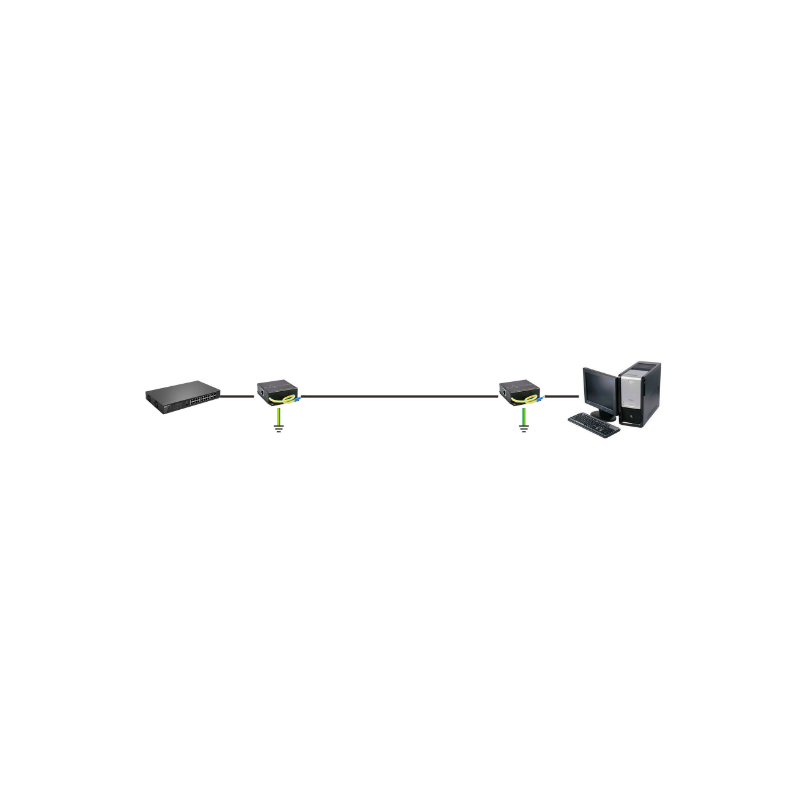

No external power supply required. Install in series by connecting the protected device to the OUT port, the network wire to the IN port, and the ground wire to a ground rail or ground point.
When a surge occurs, excess voltage is absorbed and discharged through primary discharge, voltage limiting, and voltage relaxation, ensuring that only a safe voltage reaches network devices.
