Unmanaged Switch
4 x RJ45 PoE++ port 10/100/1000Mbit
2 x 100/1000X SFP port
PoE standard: IEEE 802.3bt
Total PoE power budget: 250W
4x60W PoE OR 2x90W PoE+2x30W
IP67, IK10
Operating temperature: -40°C ~ 65°C
Option: PoH standard 100W per gate
| Operating Temp. | -40°C ~ 65°C |
|---|---|
| Approval | IK10 |
| Forsyning | 100VAC ~ 240VAC |
| IP-Tæthed | IP67 |
| PoE | max 250W total<br>IEEE 802.3bt |
| Porte | 4x 1Gbit RJ45, 2x 1Gbit SFP |
| Switch kapacitet | 8 Gbps |
| Weight | 3,2 kg |
| Dimensioner | 255.2 x 199.9 x 90 mm |
The ESW6G-4POE-2SFP-IP67 is a Gigabit PoE solution for the outdoor environment and offers four of 10/100/1000BASE-T ports with 90-watt Bt PoE. Additional strength units are 2 additional Gigabit copper ports and 2 additional SFP fiber slots for uplink.

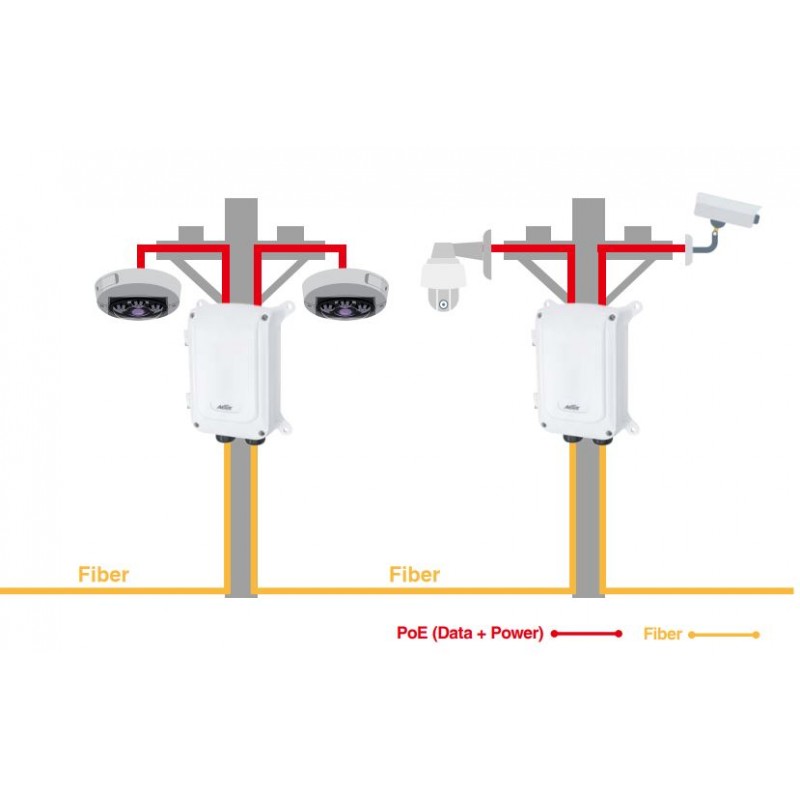

With a total PoE power budget of up to 250 watts, it meets the PoE power needs of any HD IP surveillance application. It enables the outdoor connection of PoE power devices (PDs) to the network, including outdoor PoE IP cameras, PoE wireless access points (APs) and other industrial applications. This series of Industrial Unmanaged PoE switches support IP67, 12KV surge protection for each Ethernet port, 40KV AC surge protection and hard-degraded construction to ensure operation in harsh weather conditions from -40°C to 65°C. This series has three sub-models, each classified as easy-to-install power source equipment (PSE) and delivering power of up to 30W or 60W per gate.
