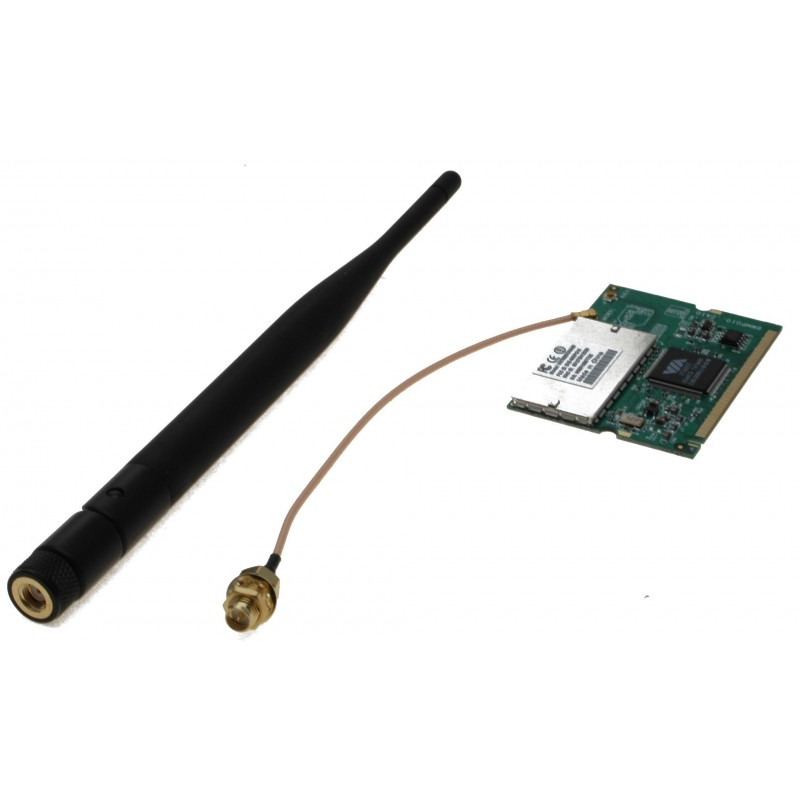

Wifi module for MiniPCI slot. WLAN for integration

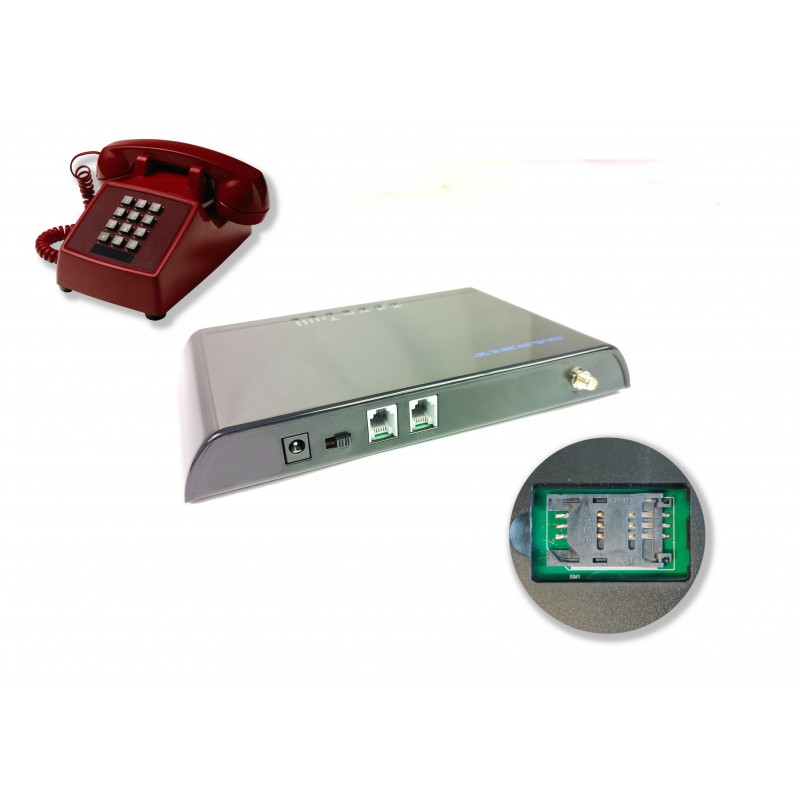

4G LTE gateway to old analog telephone
also for Dect Wireless phone with analogue Base
1 x SIM card slot (full size)
2 x RJ11 Connector for 2 phone appliances
Power supply: DC 5V -12V 0.5W (power supply included)
Operating temperature: -10 ~ + 40 ℃
Dimensions: 120 x 85 x 28 mm
exclusive mobile subscription and SIM card

Wireless WIFI 3G / 4G Router.
Built-directional antenna to 3G/4G.
Built-in WiFi antennas.
2 x cable entry IP tight.
2 x LAN 10/100/1000 Mbps Ethernet
Power supply: 12V ~ 24V Passive PoE (POC)
18VDC / 1A Passive PoE adapter included
Downlink of 150 Mbps Uplink of 50Mbps
Mast clamp / wall
Temperature: -30 ° ~ +70°C

Radio link for serial transmission on the 2.4GHz band

One to one (P2P) or one to many (P2M)

Range up to 700 meters with whip antenna

Range is improved with Panel antenna

Serial port: RS232 or RS485

Supply and COM port are with screw terminals

5dBi omni-antenna: R/SMA female connector (external thread and pin)

Simple setup with rotary and DIP switches

2.4GHz, 16 channels

Supply 10 to 30 VDC

Dimensions: W 33 x H 108 x D 84 mm

Operating temperature: -25 - +75°C

Housing: Plastic

7 DBI outdoor Omni antenna with N-type female socket
Horizontal: 360 degrees
Vertical: 9 degrees at ½ power
700-900 / 1800-2170 / 2300-2690MHz
Length is 76cm
n She connector
for mounting on pipes
for mounting on wall
Wind resistant Over 250km / h
Weight: 400g
Max. Effect: 50W
Impredance: 50 Ohm
mounting brackets included
glass fiber, copper inside, stainless steel Feature

LoRaWan transceiver with 2 x digital inputs
LoRaWan transceiver with 2 x analog inputs 4-20mA / 0-10V
LoRaWan transceiver with relay output (SPDT)
Supports LoRa Class C protocol
Serial port: RS232 or RS485 (Transparent data)
Collect data sent to Lora-Gateway Controller
Frequency: 868MHz - Range Up to 10 km
Configuration Port: Micro USB
Operating temperature: -40 - +70°C
Supply voltage: 5 - 24VDC
Dim: 120 x 120 x 56 mm

LoRaWan transceiver with digital inputs
LoRaWan transceiver with relay output (SPDT)
Supporter LoRa Class C Protocol
Serial Port: RS232 or RS485 (Transparent data)
Collects data to be transmitted to LoRa-Gateway Controller
Frequency: 868MHz - Range Up to 10 km
1 x Antenna 2dBi - SMA male connector
Configuration Port: Micro USB
Operating temperature: -40 - +70°C
Supply voltage: 5 - 24VDC
Dim: 79 x 60 x 24 mm

LoRaWan with stable connection to IoT units
4 x 10/100 / 1000Base-T RJ45 LAN ports
1 x 10/100 / 1000Base-T RJ45 WAN port
1 x LoRa antenna - 2DBI with SMA male
1 x Serial console Port (RS485)
2 x DI / DO and 1 serial port (RS485) for Modbus applications
For EU 868MHz (SUB 1G) Frequency
8 Programmable parallel demodulation paths
static IP / PPPoE / DHCP client for WAN
DHCP server / NTP client for LAN
Protocols: TCP / IP, UDP, ARP, IPv4, IPv6
port forwarding; Qos; DMZ; IGMP; UPnP; SNMPv1, V2C, V3
Dim: 135 x 135 x 50 mm
