Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)
Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)
Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)
Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)
Previous
Next
Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)
Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)
Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)
Waterproof RJ45 chassis mount connector - IP68 rated, (13/16"-UNEF28)

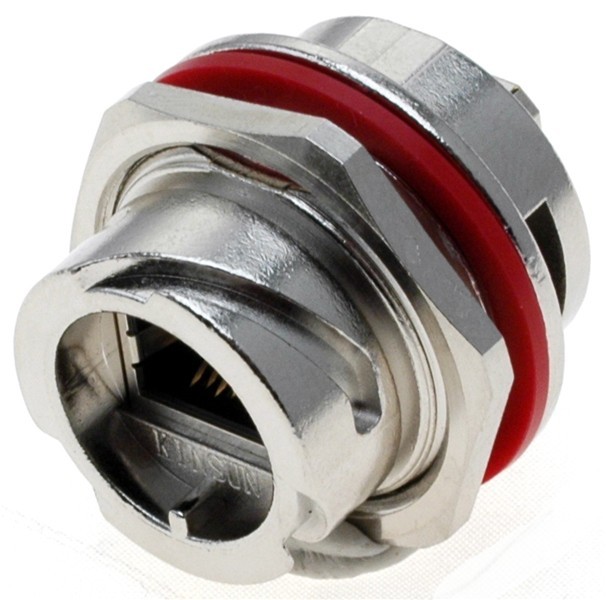

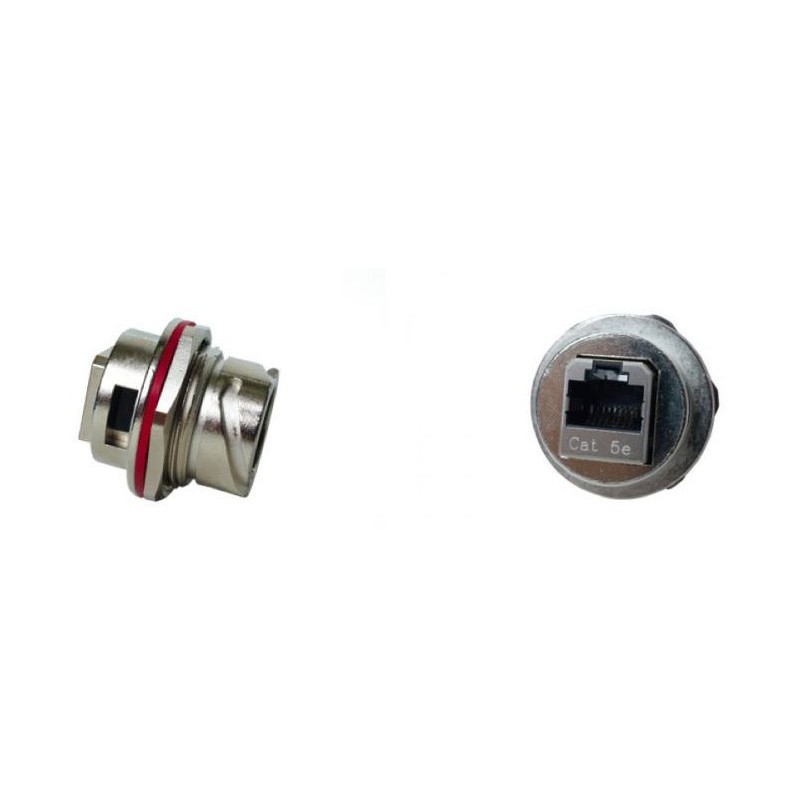

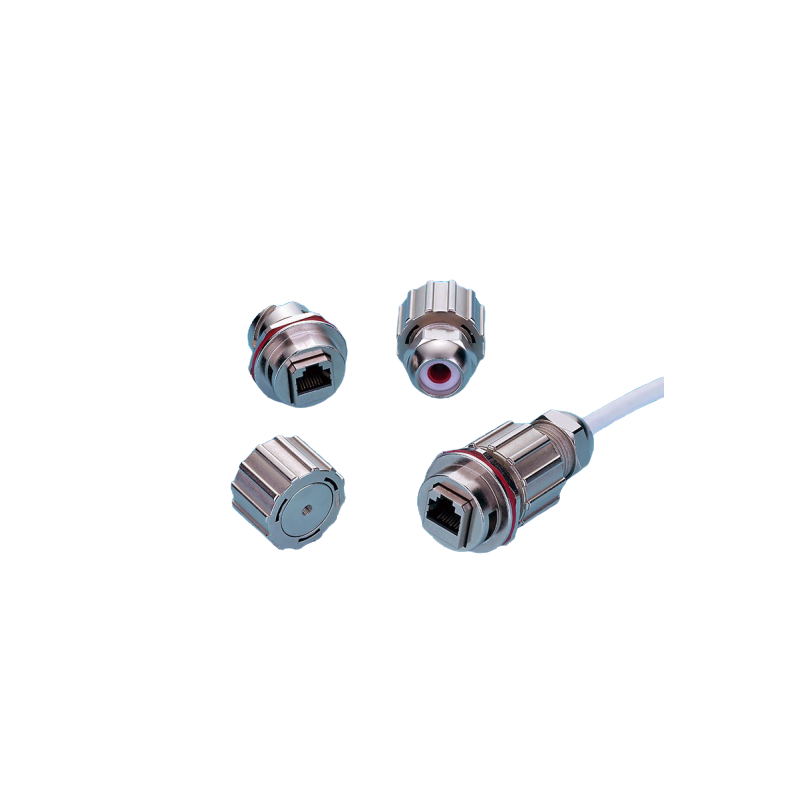

RJ45 waterproof connector for chassis mounting, STP, IP68 close to housing or cap attached.

RJ45 female connector for chassis mounting
Thread: (13/16"-UNEF28)
RJ45 pass-through connector 2 x RJ45 female STP
IP68 tight with waterproof cap attached - RJ45W-P - purchased separately
IP68 tight with waterproof housing with cable attached - RJ45W-S - purchased separately

247.62 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number RJ45W
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

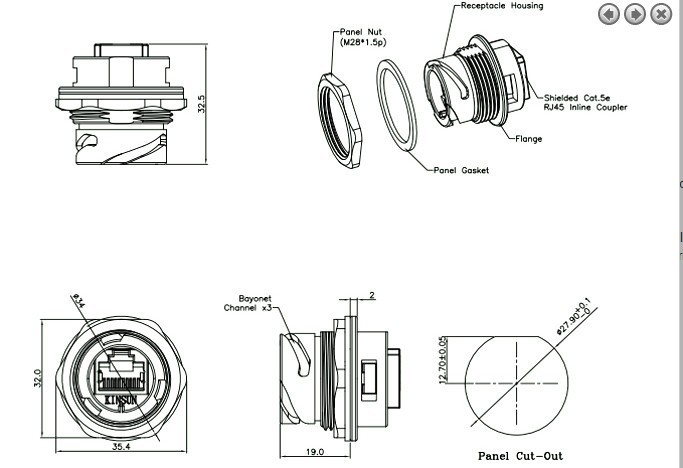

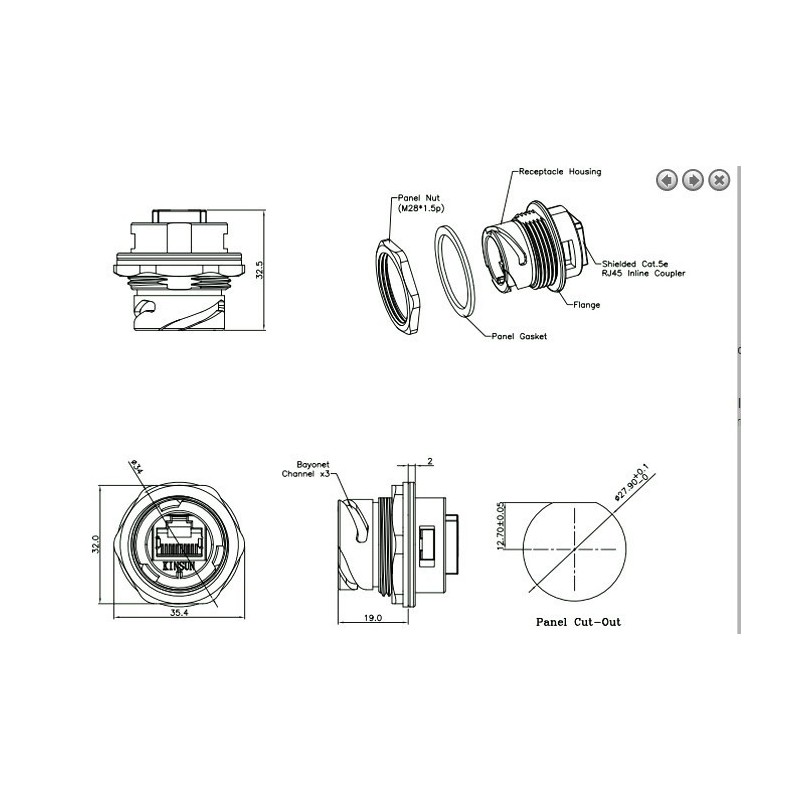

Dimensioner 32 x 35,4 x 19 (udvendig side) m.m. (se billede)

Housing: Zn Alloy 3, Nickel Plated
Panel nut: copper alloy, nickel plated
Panel gasket: Silicone
RJ45 Jack metal shell: copper alloy, nickel plated
RJ45 Jack plastic housing: Technical thermoplastic flammability UL94 V-0
RJ45 socket: phosphor bronze, finish: gold over nickel connector can be front-mounted to a maximum panel thickness of 3.2 mm.
