HDMI/DisplayPort/USB-C 4K30 Switch Extender, 120 m CAT5e / 140 m CAT6, Daisy-Chainable

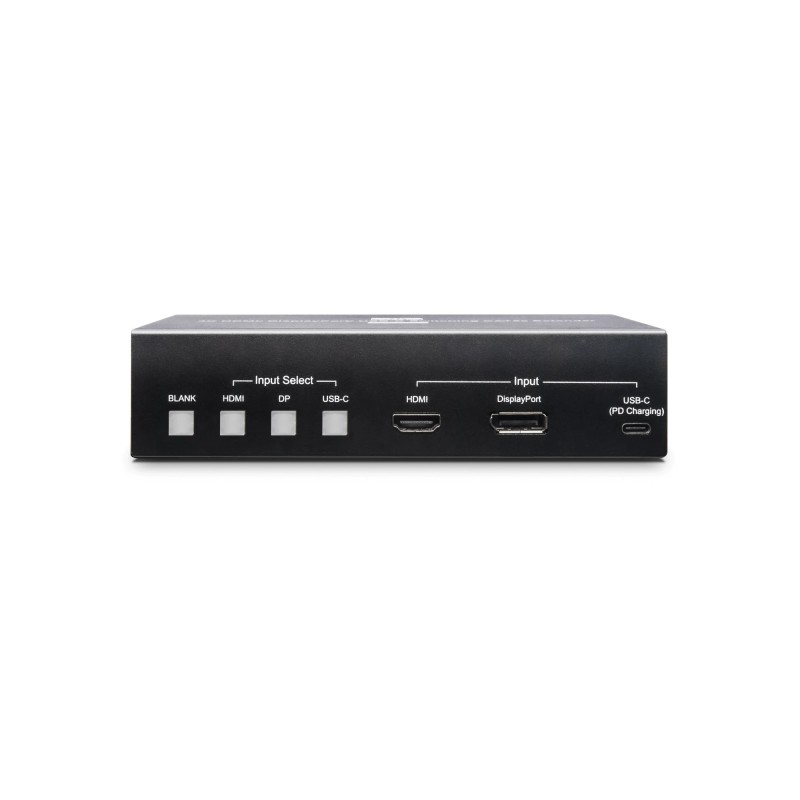

Supports input via HDMI, DisplayPort, or USB-C (DP Alt-Mode)

Extends one selected input at 4K@30Hz (4:4:4) over network cabling

Up to 120 m over CAT5e, 140 m over CAT6

Daisy-chain capability to support up to 250 displays

Automatic / manual input switching plus one-button EDID management

Operating Temperature: 0 to 70℃

Power Supply: DC15V 2.6A (39W) / DC5V 3A(15W)

Controls via RS-232, I/O trigger, panel buttons

Call +45 56 66 20 20 for price
Quantity
LÆG I KURV
Product number BOOST-HDMI-DP-4K30
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Input TX: 1 x HDMI Type A, 1 x DisplayPort, 1 x USB-C, RX: 1 x RJ45

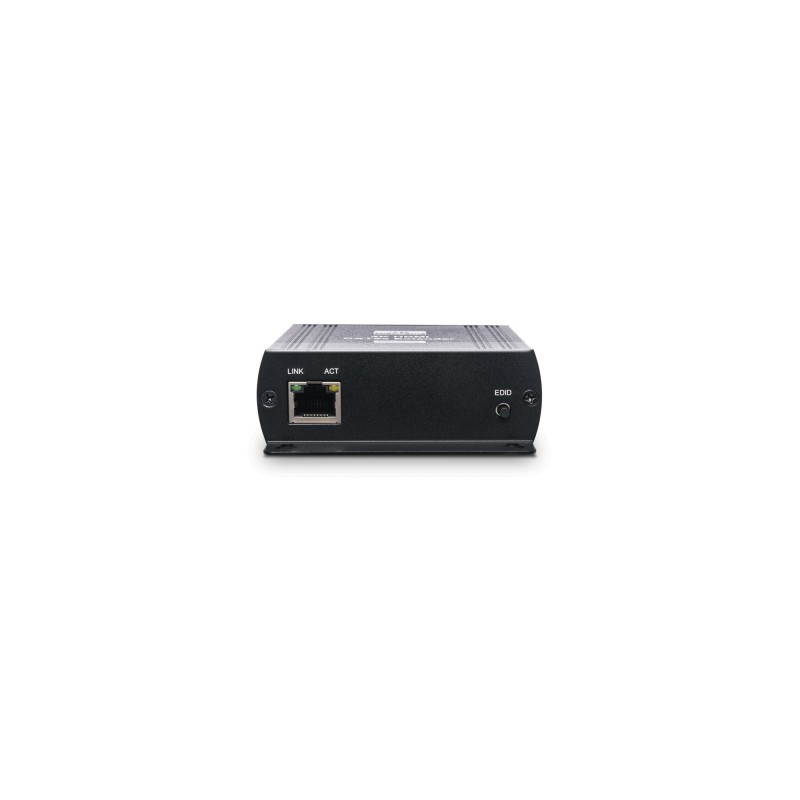

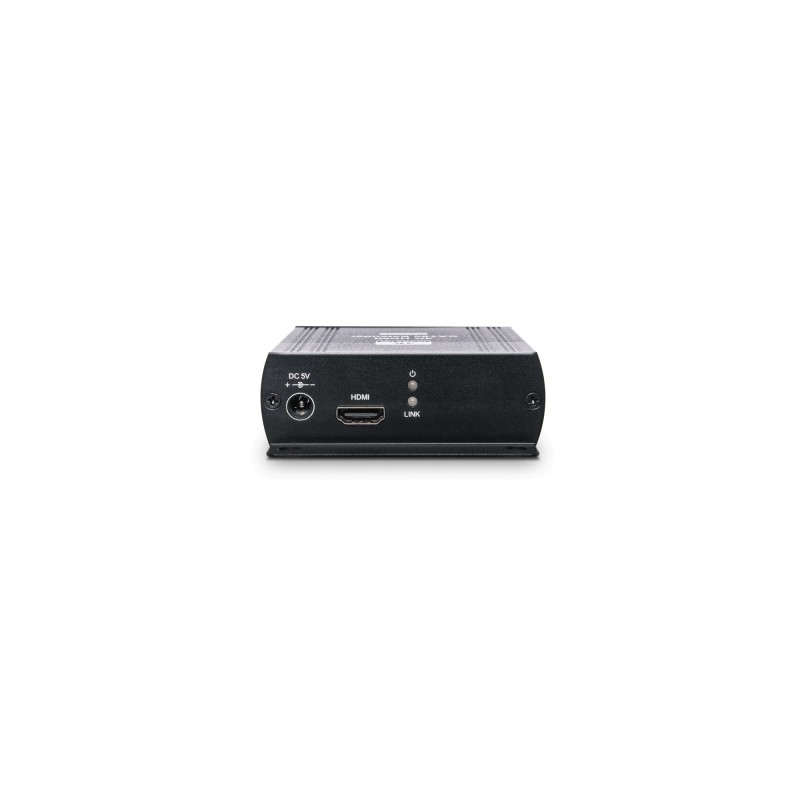

Output TX: 1 x RJ45, RX: 1 x HDMI Type A
Operating Temperature 0 to 70℃
Resolution 4K@30Hz 4:4:4 12bit
Power Supply DC15V 2.6A (39W) / DC5V 3A(15W)

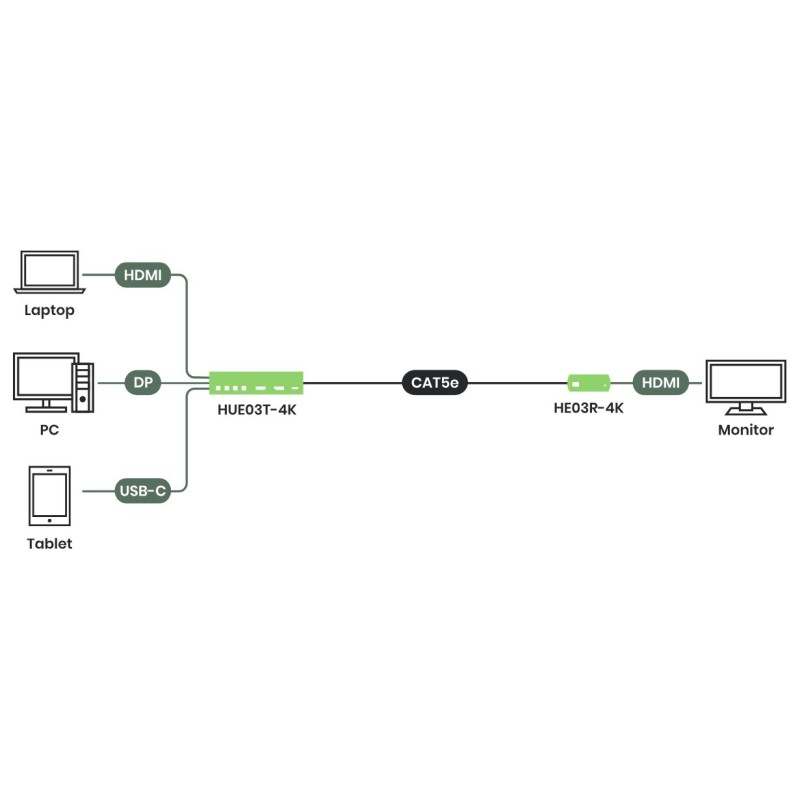

Flexible switching extender designed for modern AV environments with multiple source types. It supports HDMI, DisplayPort, and USB-C inputs (including DP Alt-Mode) and outputs via an RJ45 HDBaseT-style connection extended over network cabling.

It can transmit a selected input at 4K@30Hz (4:4:4, 12-bit) up to 120 m over CAT5e or 140 m over CAT6.

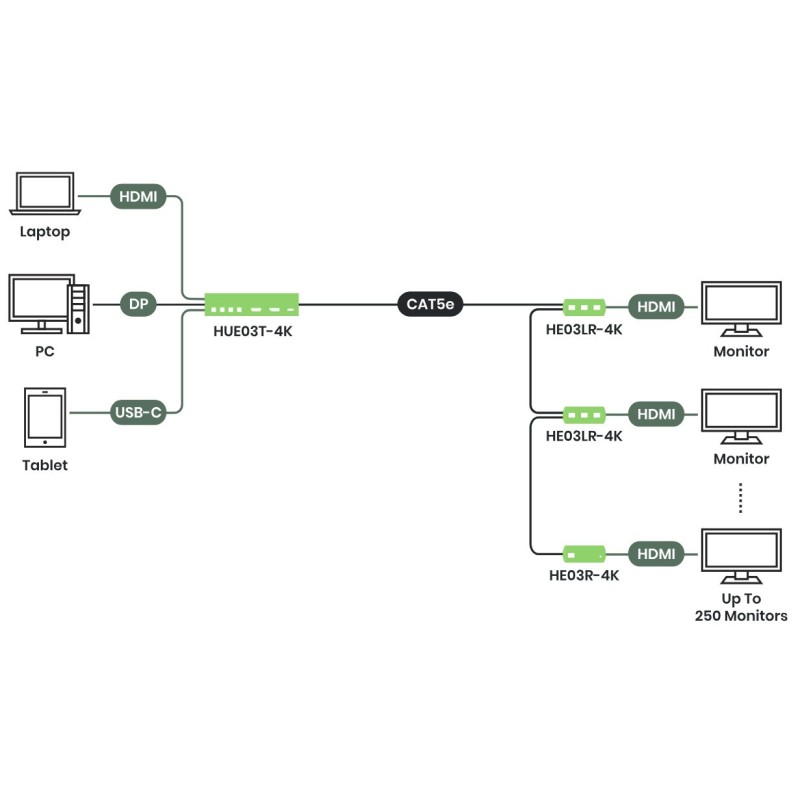

The design supports daisy chaining of receivers to drive up to 250 displays from one source, without noticeable latency.

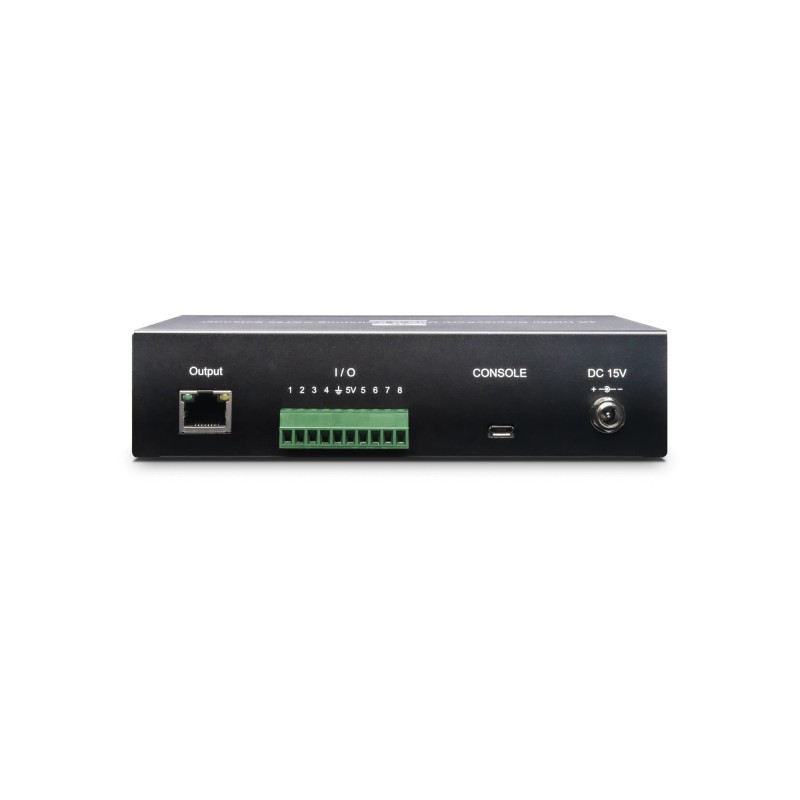

It features automatic or manual input switching, EDID management (one-button click), and I/O trigger support for external control keypads or automation systems.

RS-232 and console control are also available.

The unit supports 15W / 39W power delivery via USB-C when used as an input (i.e., can power a connected device) and works with chained Ethernet switches for network-based distribution across multiple displays.

This switch + extender is ideal for conference rooms, classrooms, collaborative workspaces, digital signage networks, and any installation where a variety of input sources may need to be extended and distributed over long distances.


Feature Highlights

  • Supports input via HDMI, DisplayPort, or USB-C (DP Alt-Mode)
  • Extends one selected input at 4K@30Hz (4:4:4) over network cabling
  • Up to 120 m over CAT5e, 140 m over CAT6
  • Daisy-chain capability to support up to 250 displays
  • Automatic / manual input switching plus one-button EDID management
  • Controls via RS-232, I/O trigger, panel buttons
