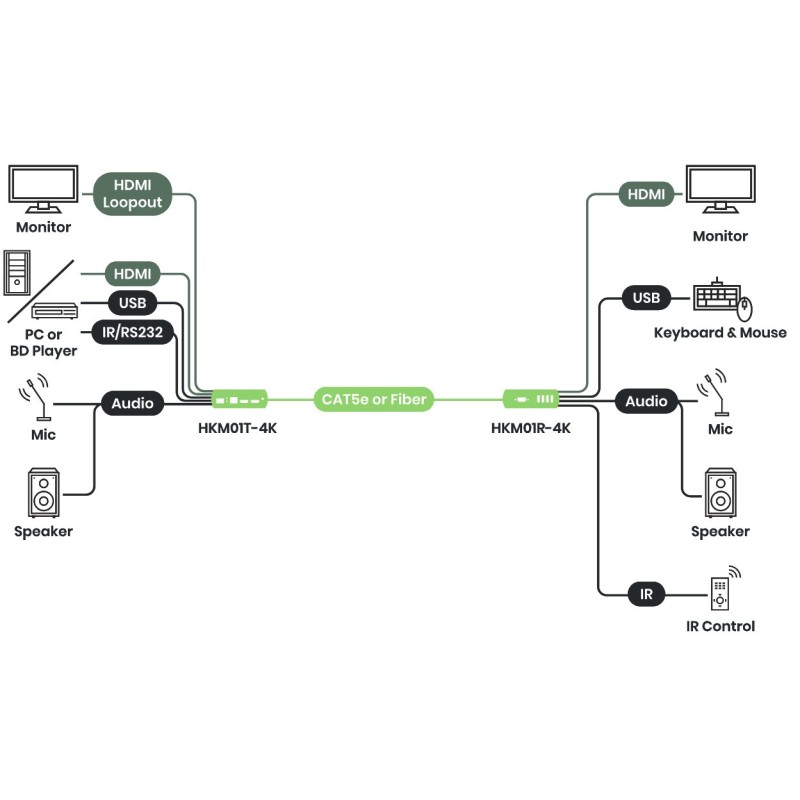

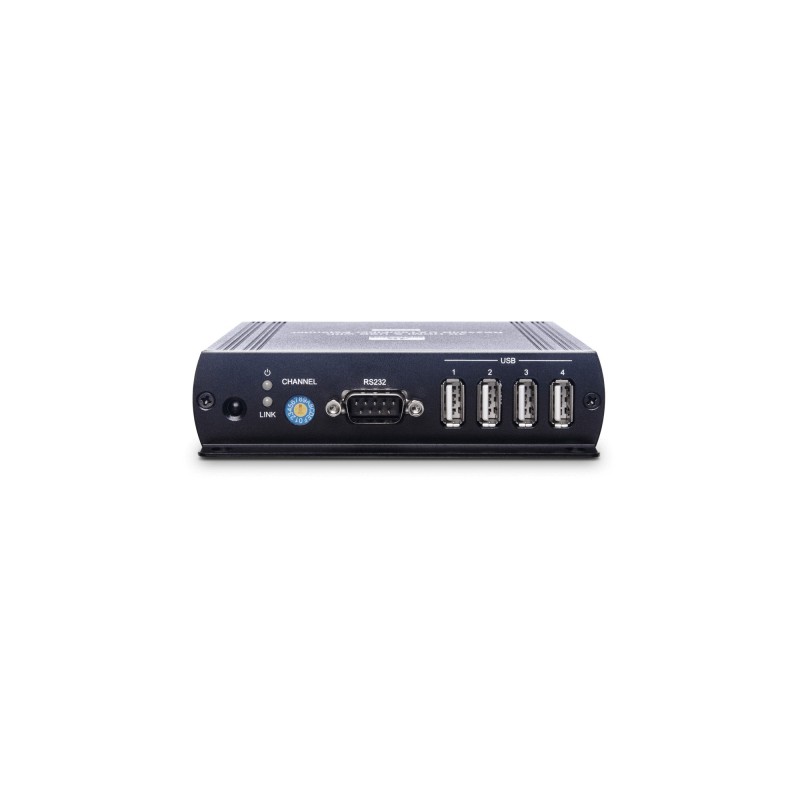

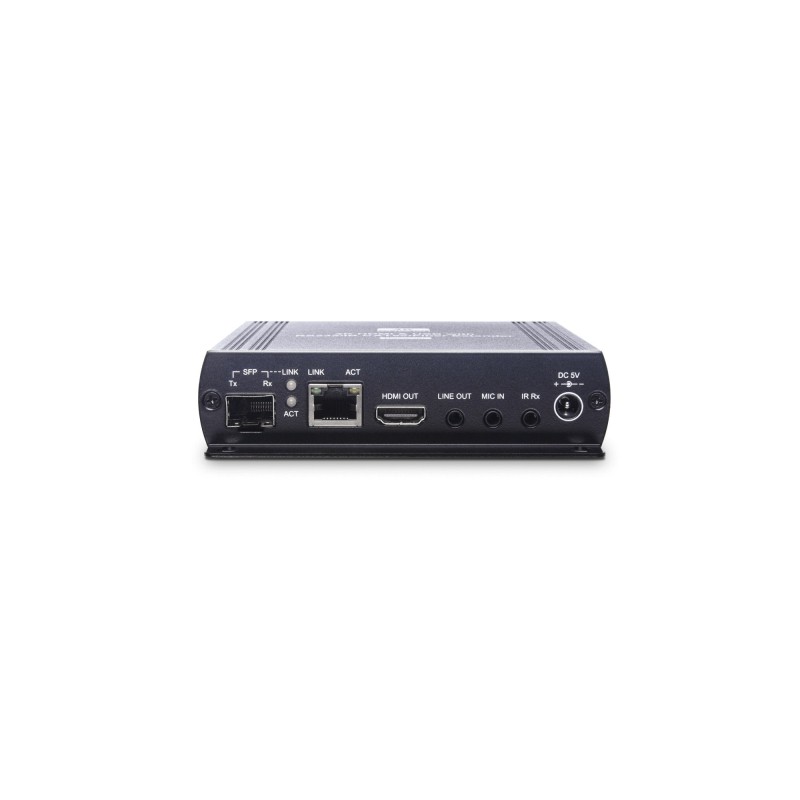

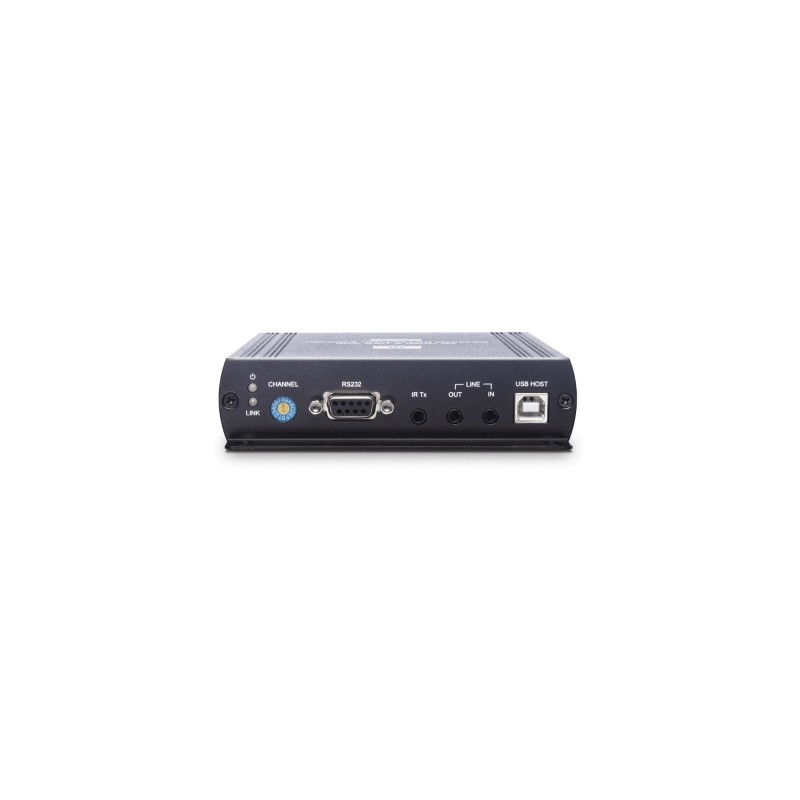

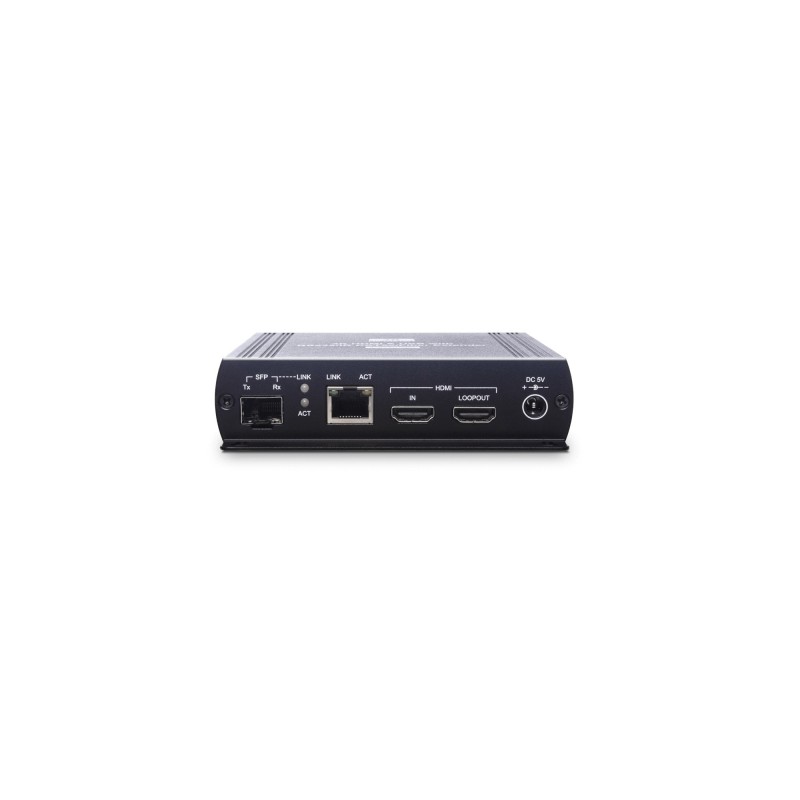

HDMI 4K KVM Extender 140 m CAT6 / 120 m CAT5e + Fiber (USB, Audio, RS232, IR)

DVI-D Extender with local and remote module up to 50 meters.
Extend DVI-D up to 50 meters via Cat. 6 RJ45 cable
Both units are with DVI-D male
Do not connect network switch
With built-in EDID (emulates monitor)
Power is supplied with 5VDC from the DVI connector on the PC
Can be powered with 5VDC USB Micro
Power consumption at 5VDC is approx. 350mA
External power supply: Purchase additional DC5V with USB A female connector

DisplayPort (DP) to DVI-D (digital) converter - DP and DVI-D are the same video format
DisplayPort connector with lock.
No transfer of sound
Be aware of mechanical stress on the DP connector, as the DVI cable is strong

DisplayPort (digital video) to VGA (analog video) converter with short cable
DisplayPort connector with lock
cable between the two connectors to reduce the mechanical load on the PC's DP connector
Resolution up to 1920 1200

4K HDMI Extender Over IP
HDMI 1.4 / HDCP 1.4
Up to 120 meters (point-to-points)
4K @ 30 Hz
2 x USB-A 2.0 (HID emulation)
One-to-One or One-To-Many
Max 32 RX Can be connected One TX (Via Ethernet Switch)
Remote-IR from TX to RX
Plug and Play
Power Supply: 5V 1A (2 included)
Dimensions: 107 x 105 x 27 mm
Operating temperature: -15 - + 55 ° C
Weight: TX 499G, RX 494G
acquisition: K-USB4AM-AM -Fe to connect the USB-A port to PC

Mix HDMI video from 2 sources of 1 screen
PIP image in image
PBP image in picture
Screen layout (lock) function
Multi-format 2 in 1 out-switch
2-channel HDMI Video Swappable
Scales Resolution Up or Down
Up to 4K UHD (3840 x 2160 @ 30Hz, 4: 4: 4)
Audio out as Analog and Toslink SPDIF
Supports more than 40 Presets
Complete Video Control of Brightness, Contrast, Saturation, Tint, etc
OSD / IR / Button / Serial Interface
HDCP Compatible, 3D Video and Blu-Ray
Plug-N Play - System, No Software Installation
Supply: 12VDC

Max. 1920 x 1200 pixels
1 x KVM Extender Console Unit - Remote module
1 x KVM Extender Computer Unit - Local module
1 x 12V DC Power supply included for remote module
1 x KVM cable ( VGA)
USB (2 on Console Unit, 2 on PC Unit)
Only VGA and USB Mouse / Keyboard Transfer
Does Not Transmit Touch from Monitor
USB is only for mouse and keyboard
For point RJ45 network cable up to 200 meters
with Edid Emulation
2 controls for the same PC
Video adjustment

4 x HDMI inputs to 4 x HDMI outputs
Viewing the screens 4 are summarized on a screen
display screen 1 distributed over 4 skærme
Can used with DVI adapters

4K HDMI Extender over Patch Cable (Cat 5e / 6)
HDMI 1.4 / HDCP 1.4
With HDMI Loop out
Audio Input and Output
Up to 120 meters (Point-to-Point)
4K @ 30Hz
Plug and Play
Power supply: 5V 1A (2 pcs. Included)
Dimensions: 60 x 56 x 19 mm
