10×10 HDMI HDBaseT Matrix Switcher (4K@30Hz, 100 m) with Ethernet, IR & RS-232

10×10 HDMI matrix switching with flexible source-to-display routing.

Supports 4K@30Hz resolution for high-quality UHD video.

Extends HDMI, IR and RS232 signals up to 100 m over CAT5e/CAT6 cabling.

Includes 2 local HDMI loop-outs and 8 HDBaseT outputs for remote displays.

Multiple control options via front panel LCM, IR remote, RS232, Ethernet, Web GUI and mobile app.

Professional AV integration with HDCP, EDID management, 3D video and high-definition audio formats.

Call +45 56 66 20 20 for price
Quantity
LÆG I KURV
Product number HDMI-MATRIX10X10-4K3
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Input 8 x HDMI Type A, 2 x HDBaseT
Output 2 x HDMI Type A, 8 x HDBaseT
Operating Temperature 0-55℃
Resolution Max. 4K@30Hz 4:4:4 12bit
Power Supply 5V 2A

10×10 HDMI HDBaseT Matrix Switcher is a high-capacity AV routing solution designed for installations requiring versatile source-to-display mapping and long-distance HDMI extension. With support for up to 4K@30Hz resolution and HDMI/IR/RS-232 signals extended over HDBaseT up to 100 meters using standard CAT5e or CAT6 cable, this unit offers both flexibility and performance.

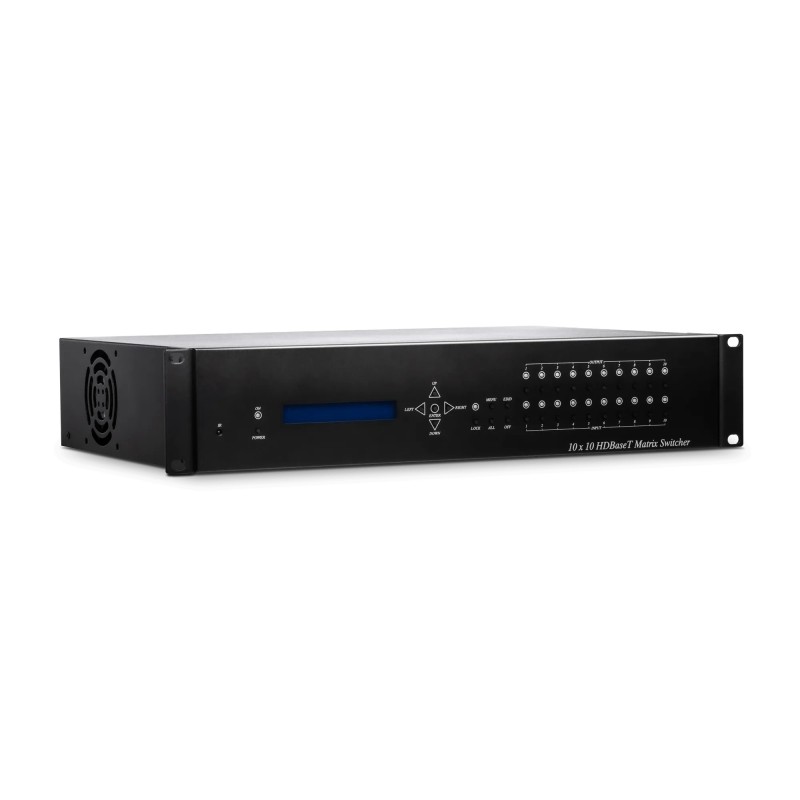

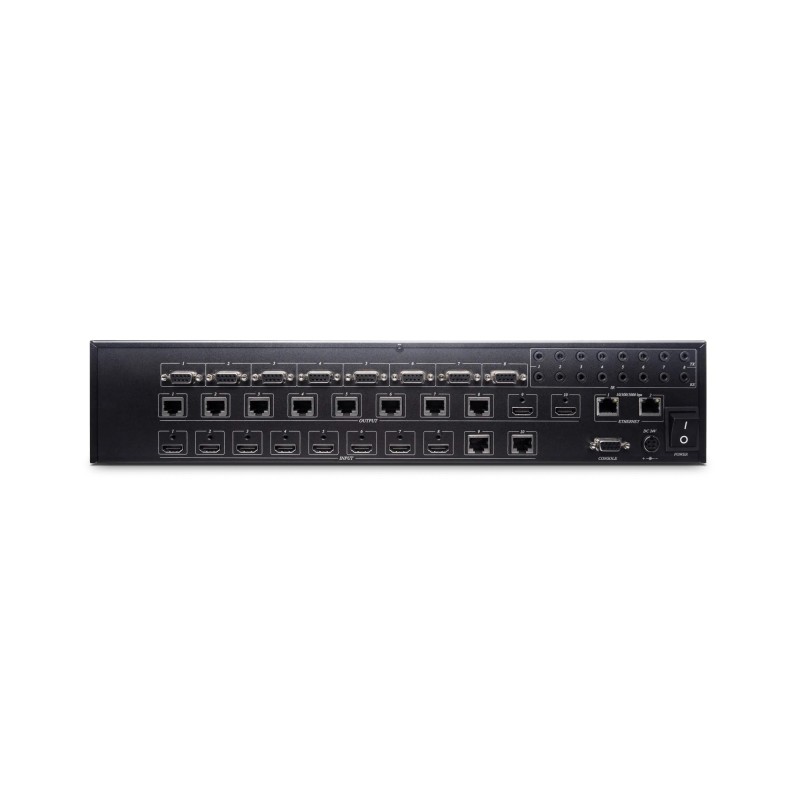

This matrix supports routing of up to 10 HDMI sources to 10 displays, including 2 HDMI local loop-outs for nearby displays and 8 HDBaseT outputs for units located further away. Each of the 8 remote outputs also include paired RS-232 and IR ports to enable full remote control of connected devices and displays. Ethernet connectivity (2× 10/100/1000 Mbps ports) allows network devices or control via Web GUI or mobile apps. The front panel includes an LCM panel and LED indicators for input/output status.

Ideal for: meeting rooms, digital signage in large areas, command & control setups, broadcast, exhibitions—anywhere multiple sources must be displayed on multiple screens with remote control and long cable runs.


  • 10×10 HDMI Routing – 10 inputs to 10 displays via local HDMI plus HDBaseT outputs
  • 4K@30Hz Support – high-definition video over long cable runs over CAT5e/CAT6
  • 100 m HDBaseT Extension – local HDMI loop-outs + 8 remote HDBaseT ports
  • Comprehensive Control Options – IR, RS-232, Ethernet + Web GUI / mobile app / front panel LCM & LEDs
  • Built-In Ethernet Interface – 2 Gigabit RJ45 ports for networked control / devices
  • Robust AV Signal Handling – HDCP / HDMI 1.4 / 3D / IR with paired RS-232 on remote ends for control of displays & sources
