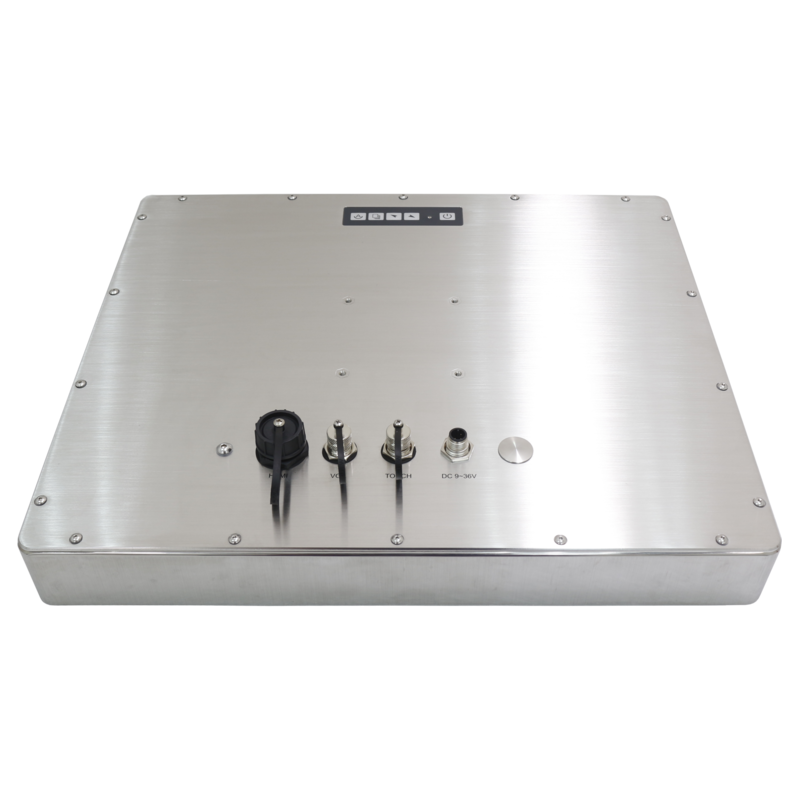

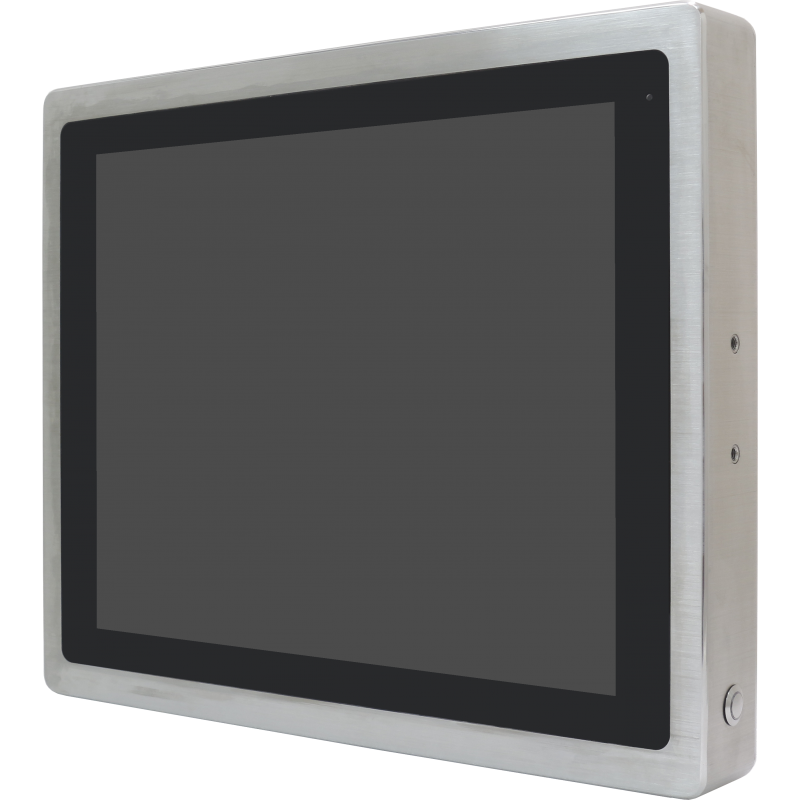

17 "waterproof monitor, 6-page IP66 proof steel cabinet. Pcap touch, M12 connector on the back 9 - 36VDC, 5: 4 format

17 "waterproof IP66 all around closely monitor steel cabinet
Projected Capacitive Touch (USB)
Resolution 1280 x 1024 to 5: 4 format
350 Nits
1 x VGA M12, 12-pin cable with waterproof jacket
1 x waterproof HDMI with waterproof jacket
1 x buttons on the back
1 x M12 USB touch with waterproof jacket
1 x Power input 9-36V DC, with on / off button on the side
VESA 75 x 75 mounting
Option acquisitions: available with capacitive touch with USB interface
Option acquisitions: available with 316 stainless steel cabinet

30,184.10 NOK
Excl. VAT
Quantity
LÆG I KURV
Product number MON17-P-IP66
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

USB 1 x M12 for USB touch with waterproof cap
Andet Power 1 x Power input, 1 x Touch on/off button on the side
Approval Certification CE / FCC CLASS A
Forsyning Power input 9~36V DC
Grafik VGA 1 x M12 VGA by 12-pin cable with waterproof cap HDMI 1 x waterproof HDMI with waterproof cap
IP-Tæthed IP rating IP66/IP69K
LCD 17" TFT-LCD, Max. resolution 1280 x 1024 Max. color 16.7M Luminance(cd/m²) 350 Viewangle(H°/V°) 170/170 Contrast 1000: 1 Backlight lifetime(hrs) 50000
Materiale Stål
Montering Mounting VESA 75 x 75, Yoke mount
Touch Touch Type Projected Capacitive Touch
Weight 7.5 Kg
Dimensioner Dimension(mm) 432 x 358 x 55.3

IP66 closely monitor. Suitable for slaughterhouses, pharmaceutical production, etc..
Available in other sizes and with up to 1000 nits for use in sunlight
