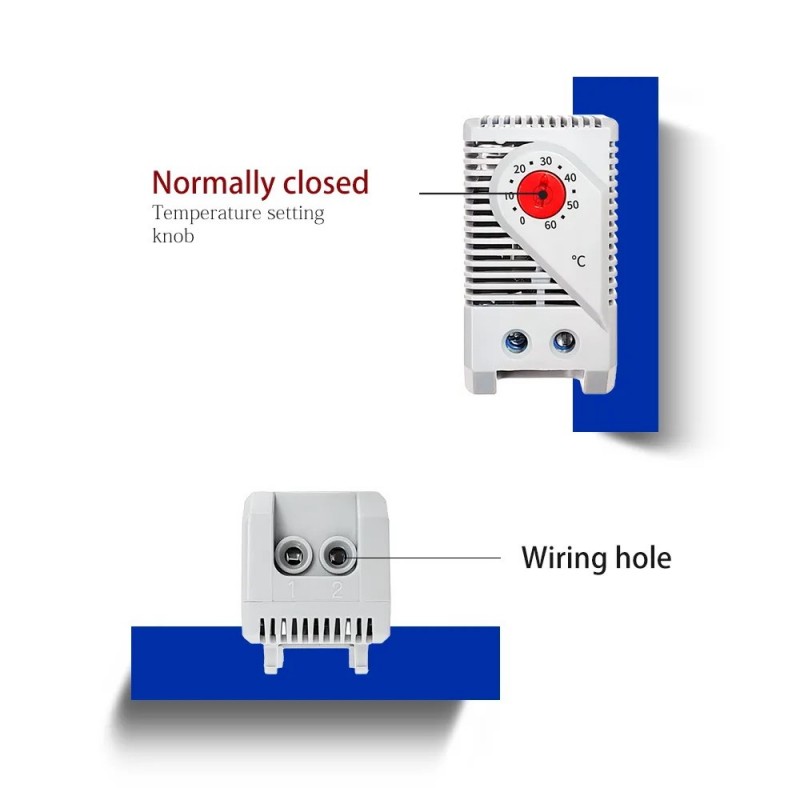

Mechanical Bimetal Kabinet termostat, 0 → +60 °C, NC (normally Closed), DIN, AC250V 50-60Hz,

Compact design
Wide adjustment range
DIN Rail mountable 35mm
Thermostat 0 to 60 °C
Snap-Action Contact
Housing plastic, UL 94V-0, light gray
Max. inrush current AC 16 A for 10 seconds
Max. switching capacity NC: 10 A resistive / 2 A inductive @ AC 250 V, NO: 5A resistive / 2A inductive@250V 15A resistive/2A inductive@AC120V DC30W(DC24-72V)
IP20

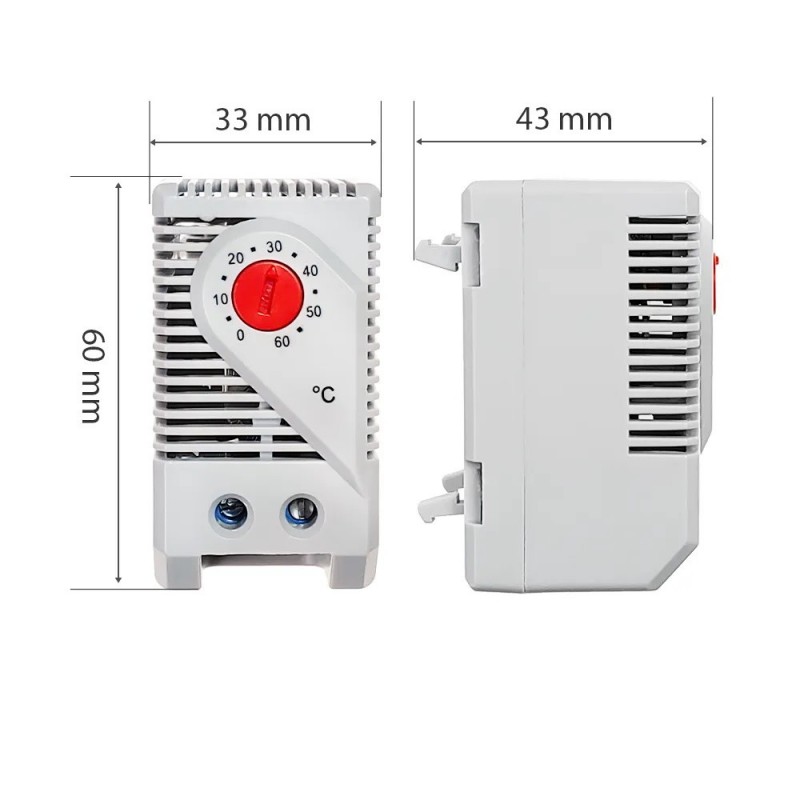

Dimensions 60 x 33 x 43

269.84 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number REL-TEMP-NC
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -45 til +80 °C
Weight 50g
Dimensioner 60x33x43

Thermostat for the cabinet measures temperatures and opens the contact when the temperature exceeds what it is set for.
