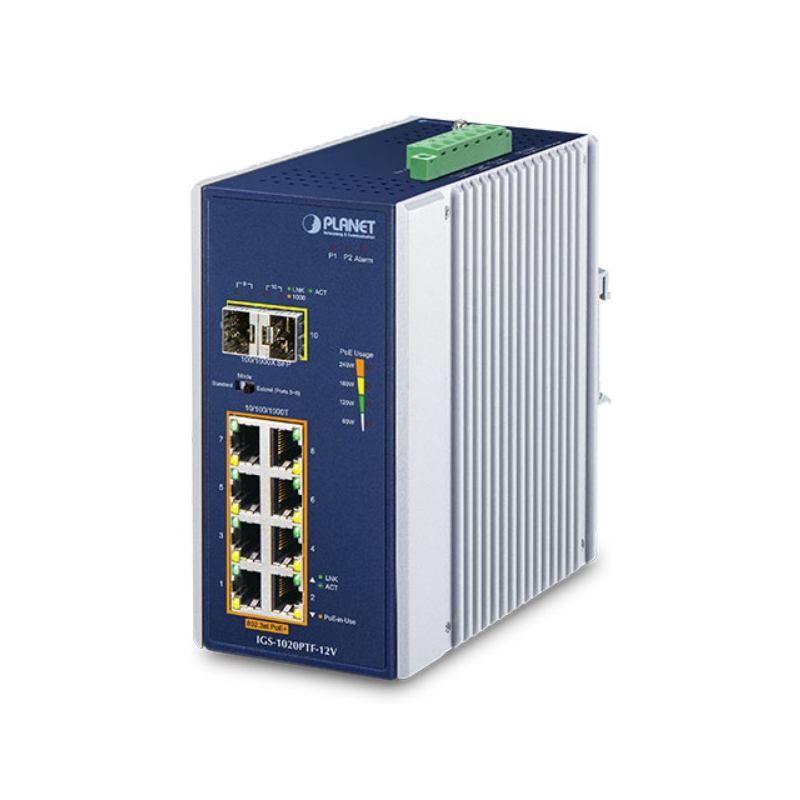

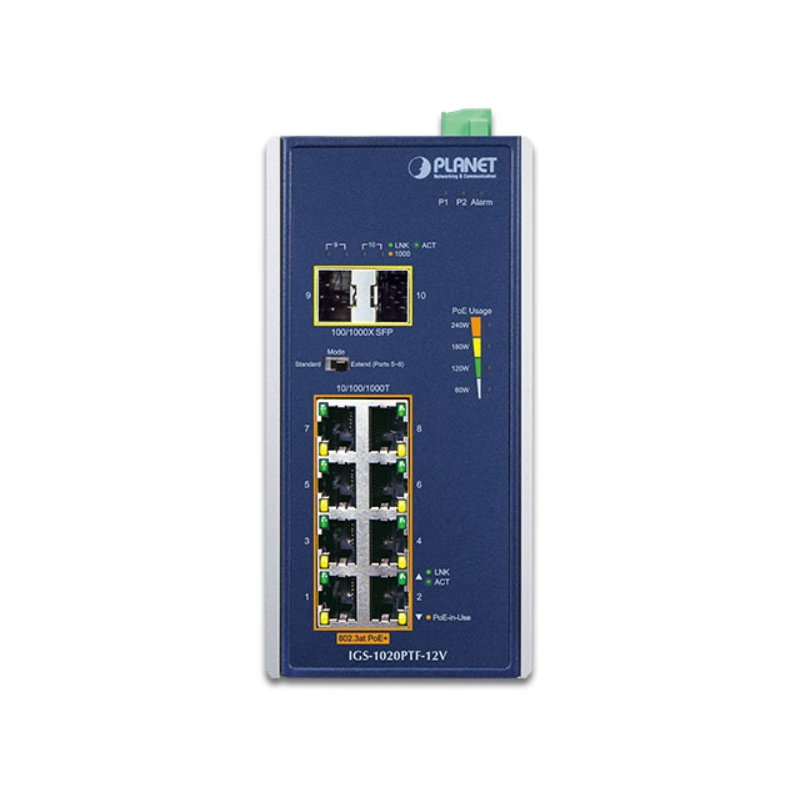

8 port Un-managed Industrial switch, 8 x RJ45 Gigabit, 2 x 100/1000 Mbit SFP slot, PoE+ 240 Watt, 12-54VDC

8 + 2 port PoE switch for DIN mounting
Un-managed
8 x 10/100/1000Mbit - RJ45 with auto MDI/MDI-X
PoE+ (30W) - power budget from 60 - 240 Watt
The power budget is determined by the supply voltage
2 x SFP slot 100/1000Mbit fiber port

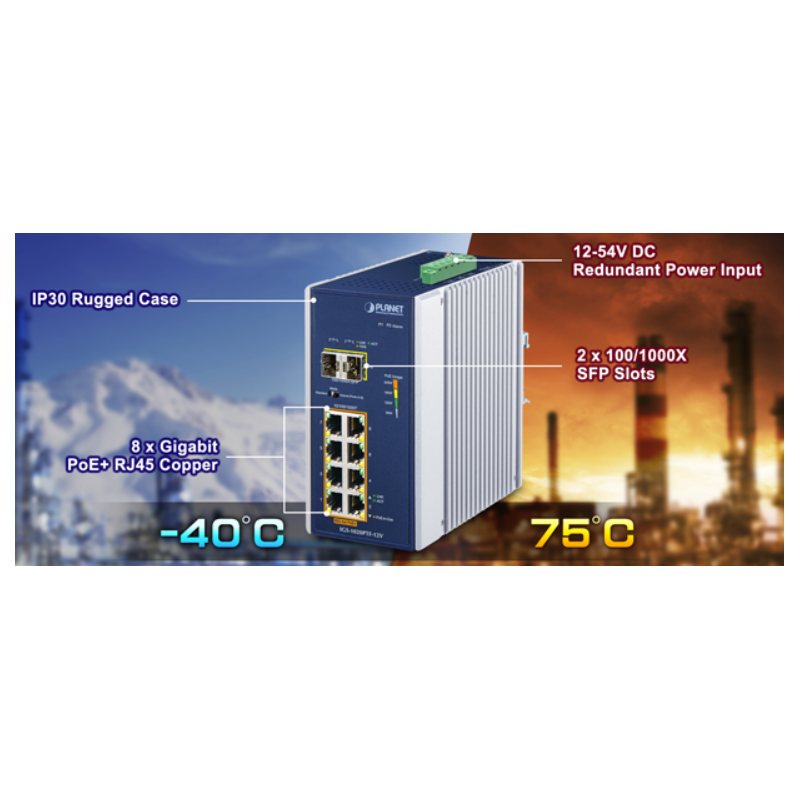

IP30 metal housing
DIN rail
Redundant Power input
12-54VDC / 7A, redundant, with polarity protection

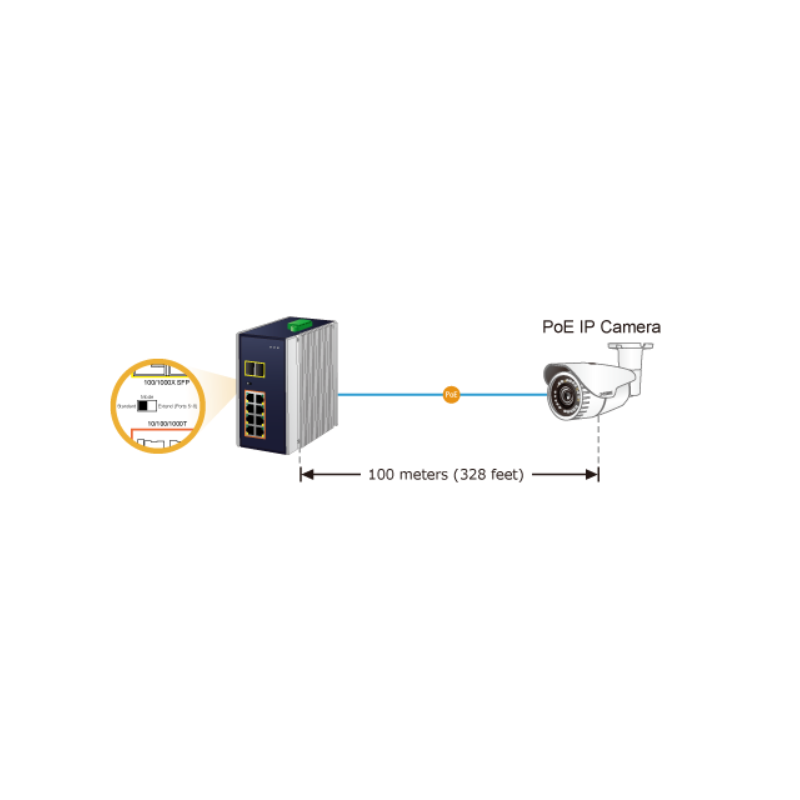

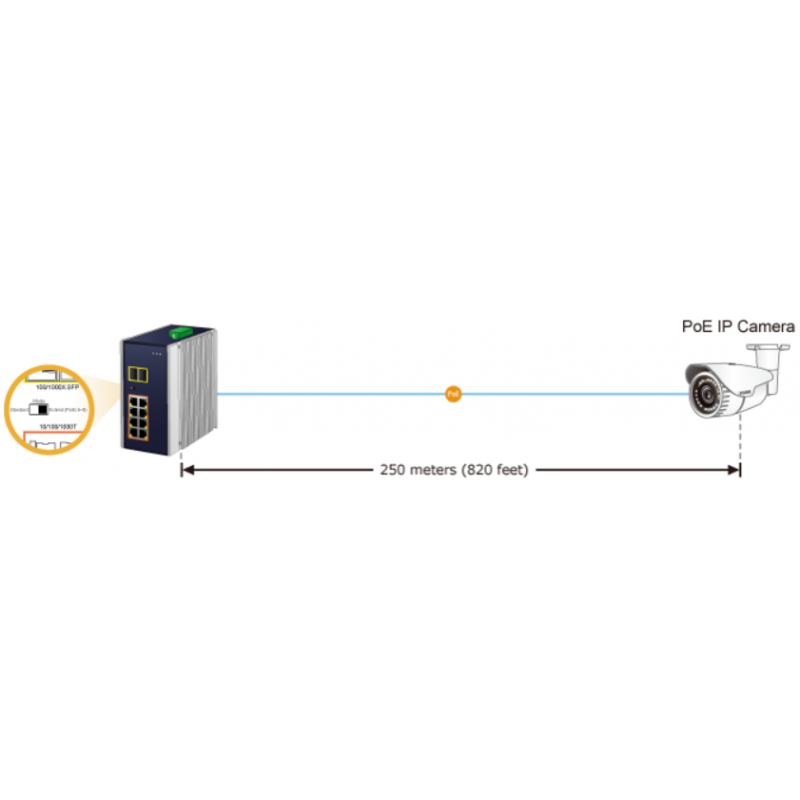

Standard/extend switch 100/250 meter cable
6000VDC Ethernet ESD protection
Extended temperature -40 to 75°C
IEEE 802.3at
Dimensions: 152 x 106 x 66 mm

5,263.49 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number ESW8G-UP-SFP2-12V
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Suitable for buildings where security is strictly enforced, the ESW8G-UP-SFP2-12V with eight Gigabit Ethernet 802.3at PoE+ in-line power interfaces can easily build a power centrally controlled for an IP phone system, IP surveillance system and wireless AP group in hard industrial environment. For example, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance requirements or a wireless roaming environment can be built in the industrial area. Without the limitation of power plugs, the ESW8G-UP-SFP2-12V makes the installation of IP cameras or wireless APs easier and more efficient.

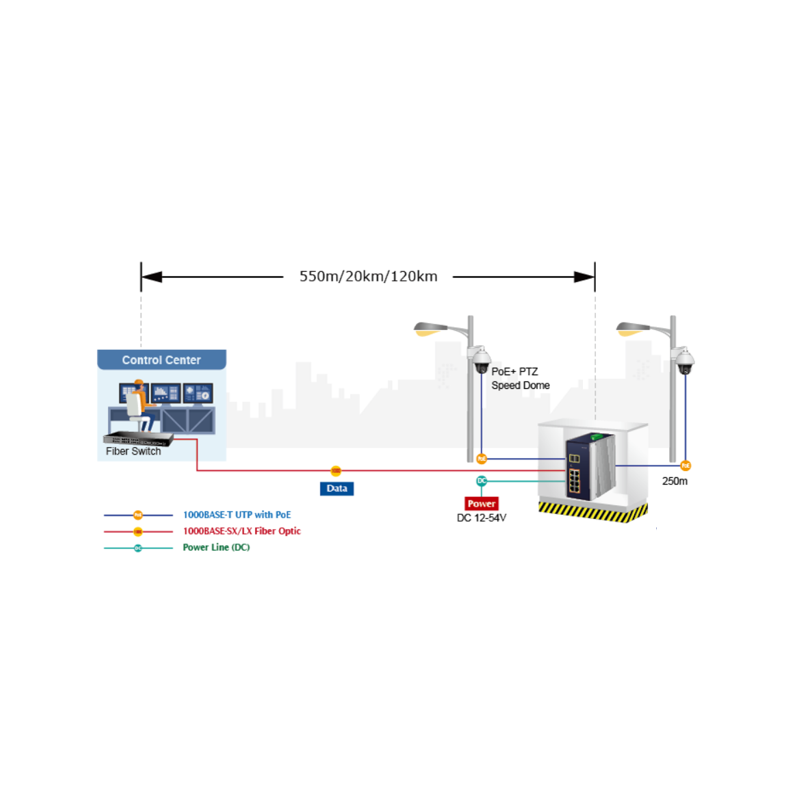

The ESW8G-UP-SFP2-12V has eight 10/100/1000BASE-T 802.3at PoE+ ports, which can offer sufficient PoE power for 8 PoE IP cameras at the same time. In addition, with the two 100/1000BASE-X SFP interfaces, the ESW8G-UP-SFP2-12V can connect to a core fiber switch and send video streams to an NVR and surveillance center. Through the high-performance switch architecture with ESW8G-UP-SFP2-12V, it is easy to record video files from the 8 PoE+ IP cameras that can be stored in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote location via the Internet. The ESW8G-UP-SFP2-12V undoubtedly brings an ideal secure surveillance system at a lower overall price.

Andre produkter i samme kategori:

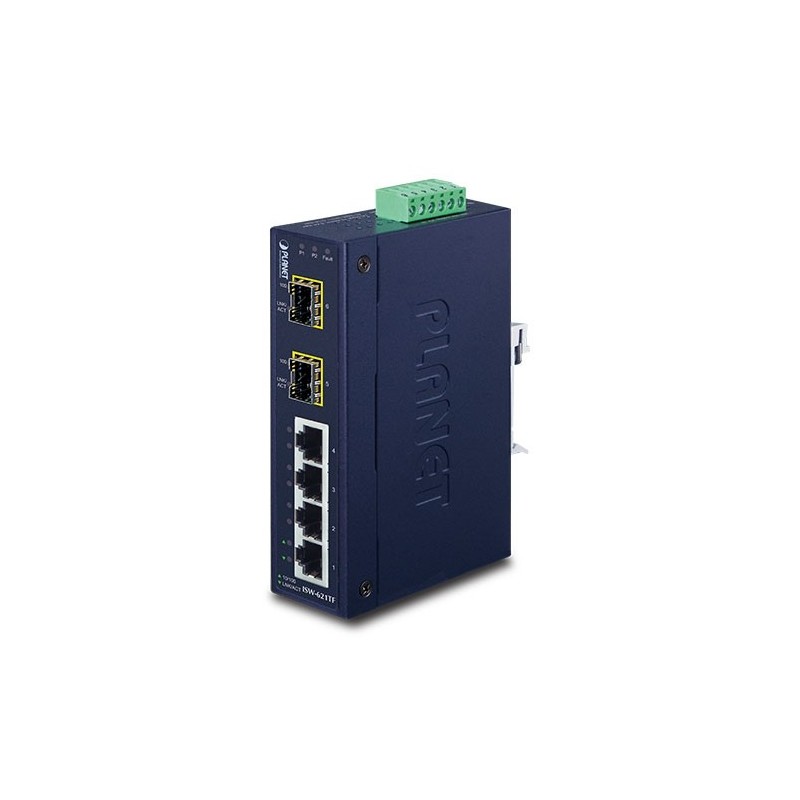

Unmanaged Industrial Switch with 4 x RJ45 and 2 x SFP 100Mbit
6 ports switch 4 x 10/100, 2 x 100base SFP - Unmanaged, 12-48VDC

Unmanaged Industriswitch med 4 x RJ45 10/100Mbit
2 x SFP - 100Mbit
12 - 48VDC, 16Watt

1,225.40 NOK
Item Number: ESW6SFP2
Physically in stock
ADD TO CART
Quick view

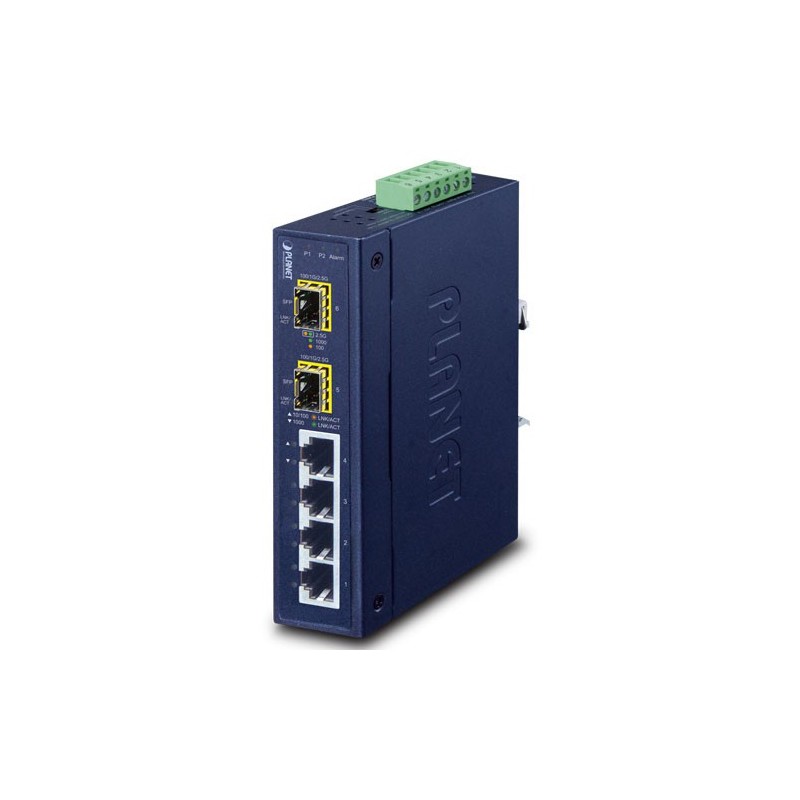

6-Port Gigabit Switch with RJ45 & SFP Ports
