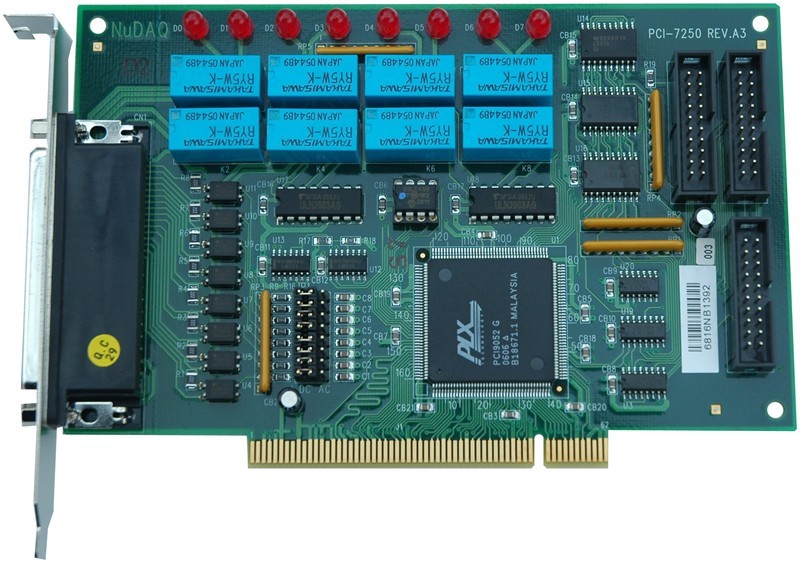

Adlink PCI-7250. 8 kanalers relæ output, 8 kanalers isolerede digitale input, PCI

PCI 10 kanal 16-bitars räkna kort

PCI kort med 8 relæer og 8 optoisolerede indgange

8-CH high power relay outputs (5A @ 250VAC or 30VDC)
8-CH isolated digital inputs with AC-filter
1-CH emergency shutdown input
Pluggable connector for high current input
Supports universal 32-bit 3.3V and 5V PCI bus
Initial state and safety state setting by DIP switches
Built-in watchdog timer

With condition detector on all 32 inputs
optoisulated inputs - 2.5kv - Common frame
logic: Low 0-3,2vdc, High: 3.5 - 24VDC

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

Supports a 32-bit 5 V PCI bus
64-CH isolated digital inputs
2500 VRMS optical isolation
Sink current up to 500 mA on each isolated output

Relæerne holder deres stilling, selv om strømmen til kortet afbrydes

Supports a 32-bit 3.3 V or 5 V PCI bus
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchanged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Change-of-status (COS) interrupt
Board ID

8 af de digitale udgange kan trække op til 500mA pr. kanal

Slave kort til REL8OPT8PCI

Supports a 32-bit 5 V PCI bus
8-CH relay outputs on PCI-7250
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
