ICPDAS I-7065 Relay box with 5 x relay closing contact - 4 x digital inputs. RS485 bus

5 x relay outputs (COM, NO) 30VDC 5A, 250VAC 5A, 4 x digital inputs, RS485 bus, 10 - 30VDC

RS485 I/O module with 4 digital inputs and 5 relay output
4 x digital input (Wet) active with Volt in
digital input as 16 bit counter - 100Hz
5 x relay output - COM, NO
Supply: 10 - 30vdc
DIN

1,919.05 NOK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number M485-REL5-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Forsyning 10 - 30 VDC, 0,8 W via klemrække
Indgang 4 optoisolerede digitale indgange, Isolationsspænding: 3750 VDC Logisk 0: 0 - 1 V Logisk 1: 3,5 – 30 V
Kontaktdata AC: 250 V / 5 A DC: 30 V / 5 A Lukketid: 5 ms Åbnetid: 2 ms
Udgange 5 type A (slutte) relæer

M485-REL5-I serien giver 4 digitale indgangskanaler og 5 form A-relæudgangskanaler. Alle digitale indgangskanaler kan bruges som 16-bit tællere. Derudover kan de digitale indgangskanaler vælges enten som sink- eller source via ledningsforbindelser. Der er også muligheder for at konfigurere opstarts- og sikre værdier. 4 kV ESD-beskyttelse og 3750 VDC intra-modulisolering leveres også for at forbedre støjbeskyttelsesfunktionerne i industrielle miljøer.

Andre produkter i samme kategori:

ICPDAS I-7043 is a module with 16 x digital outputs with Open Collector, RS485 bus.
Module with 16 x digital outputs with Open Collector, RS485 bus. 10 - 30vdc.

RS485 Module with 16 digital outputs
16 x digital outputs, Open Collector
Output load: 30VDC / 100mA per Port
Common gnd
voltage: 10 - 30vdc
Your bracket

1,712.70 NOK
Item Number: M485-DO16-I
Physically in stock
ADD TO CART
Quick view
ICPDAS I-7067 is a module with 7 x relay outputs COM NO. Dry relay contacts for 24VDC / 1A, 120VAC / 0.5A RS485 bus
7 x Relay outputs COM N.O. Dry relay contacts for 24V / 1A, 120VAC / 0.5A RS485 bus, 10 - 30VDC

7 relay outputs (normally open contact)
Glavanisk isolated outputs
Switching time: ON: 5ms
RS485 bus
DIN bracket
10 - 30VDC / 1.5Watt

1,684.13 NOK
Item Number: M485-REL7-I
Physically in stock
ADD TO CART
Quick view
RS485 Module: 8 Isolated Inputs & Display for Precision Control
RS485 module with 8 isolated digital inputs, with display

8 isolated digital inputs with 16 bit counter
RS485 interface
-25°C ~ +75°C
Display
YOUR shine
Screw terminal

1,922.22 NOK
Item Number: M485-DI8D-I
Physically in stock
ADD TO CART
Quick view
7 digitale indgange og 8 digitale udgange, displayforInput
7 digital inputs and 8 digital outputs, display. RS485 bus. 10 - 30vdc.

RS485 module with digital I / O
7 digital input
8 digital output, 30volt / 30mA
RS485 interface
Baudrate 1200 ~ 115200 bps
Dual Watchdog
10 - 30 VDC, 1 W via terminal block
-25- + 75 °
DIN rail mounting

1,658.73 NOK
Item Number: M485-DIO7D-I
Physically in stock
ADD TO CART
Quick view
4 x relay outputs (2 and 2 connect the switch), 4 x digital inputs, and isolated with the display, RS485 bus
4 x relay outputs, (2 NO, NC and 2 NO) 4 x digital inputs, and isolated with the display, RS485 bus, 10 - 30VDC

RS485 relay box with the display
4 x relay outputs 2 and connect switch 2
4 x isolated inputs
Supply 10 to 30
RS485 Communication port
16 bit counter
ON Voltage Level: 4 V 30 ~ V
OFF Voltage Level: 0 ~ 1 V V
Insulation Voltage: 3750 Vrms
Input Resistance: 3 kΩ, 0.25 W
Dual Watchdog

2,249.20 NOK
Item Number: M485-REL4D-I
ADD TO CART
Quick view

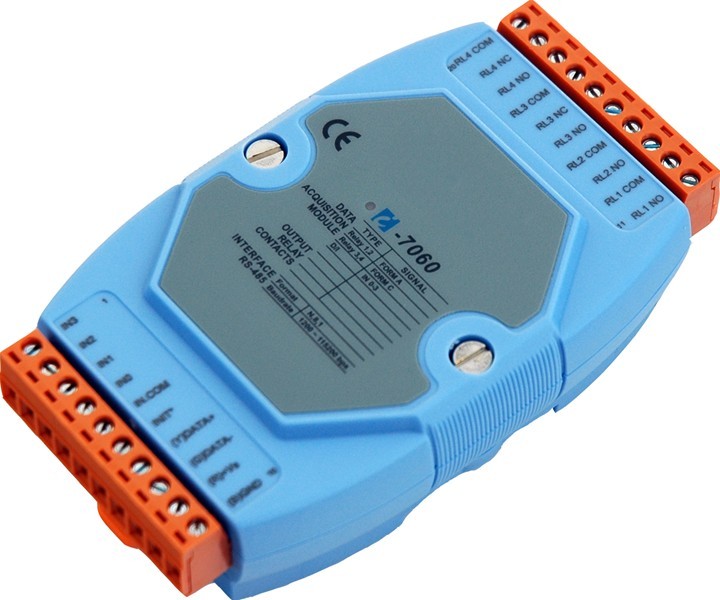

ICP DAS I-7060 is a module with 4 x relay outputs 4 x digital inputs, RS485 bus
