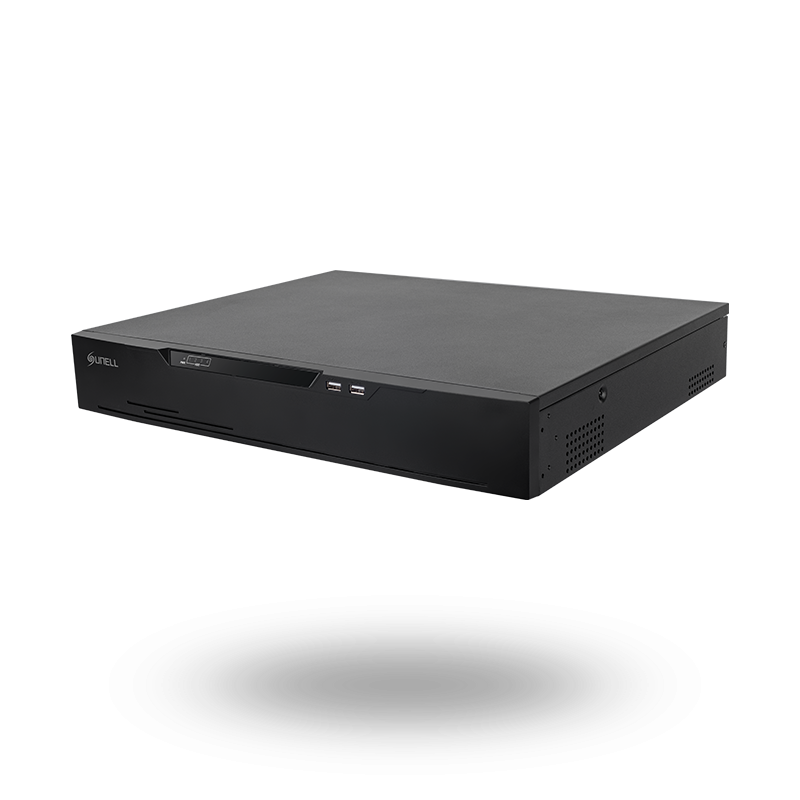

8 channel NVR with POE for IP cameras. Supports up to 12TB hard drive, HDMI, VGA

Network video recorder
9 channels for IP cameras
PoE Supply for cameras
manual, SCHEDULE, ALARM
Web Based Administration
Mobile App Android and iPhone
H.264 / MPEG -4

Up to 32-ch IP cameras access

Up to 1-ch@12MP/32-ch@D1 decoding capacity

Support face recognition and multi-objective recognition

Support 2 HDMI and 1 VGA interface

4 SATA hard disk each up to 16TB,

2 RJ45 10M/100M/1000M network interface

Support RAID 5/6/10

Smart search & playback

Support cloud upgrade

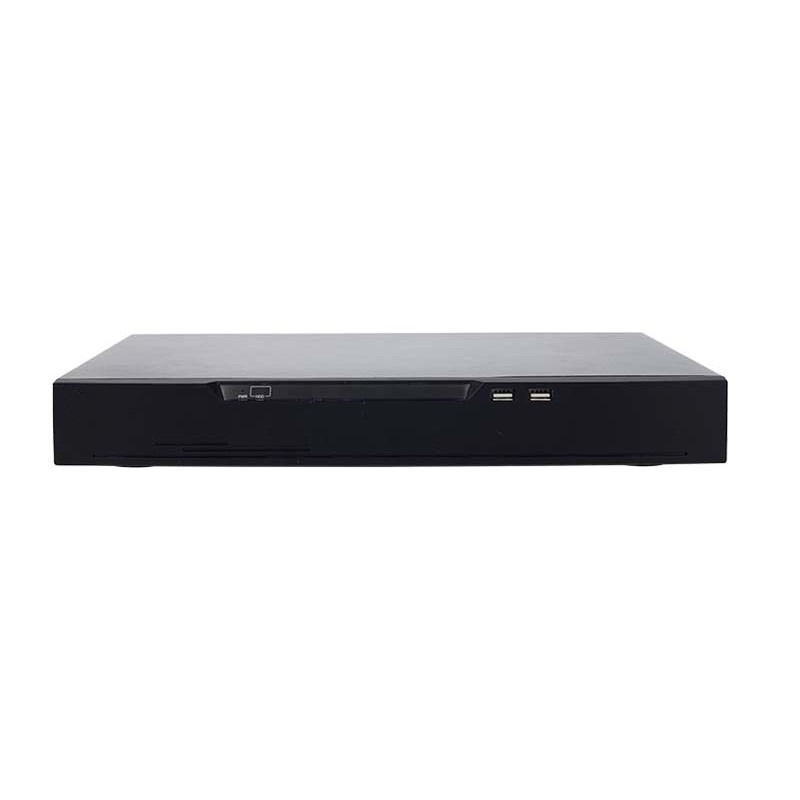

Up to 4 channels including PoE
1 x SATA HDD up to 8TB
1 x RJ45 10M / 100M nerværks interface
HDMI and VGA up to 4K output
2 x 2.0 USB
Resolution: 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1etc.
100Kbps ~ 6Mbps Pr. channel
OS Support: iPhone, iPad, Android

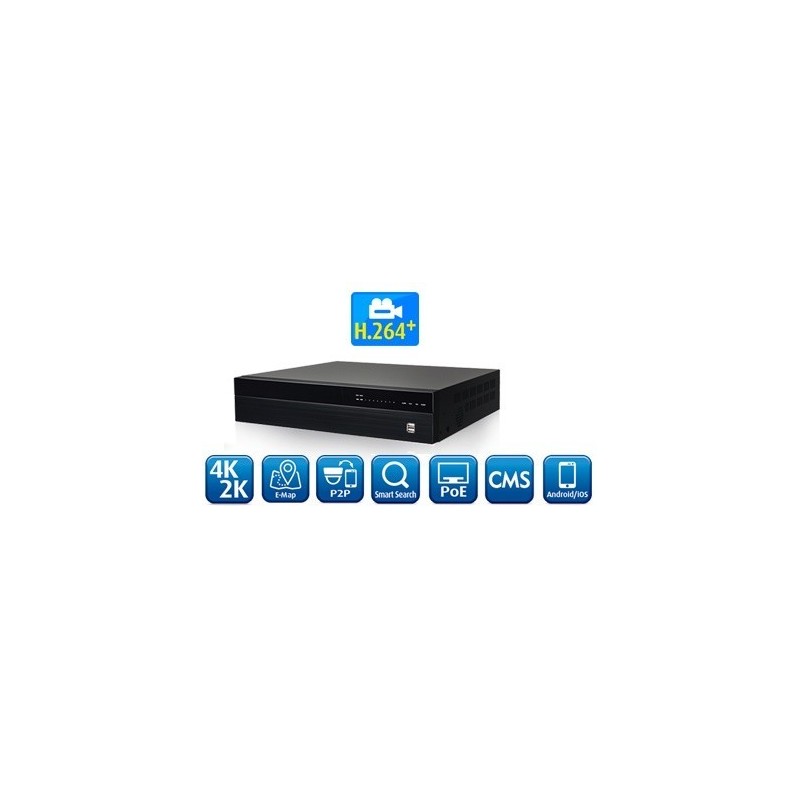

IP camera recorder up to 16 IP cameras
Supports up to 8MP cameras
16 x RJ45 with PoE for IP cameras
PoE power budget 180Watt
​PoE supply for cameras
Recording: Manual, Schedule, Alarm
WEB based administration
Mobile APP Android and iPhone
Up to 8 x SATA hard drives
RAID1 / RAID5
Compression: H.264+
4K HDMI output
Power supply: 100 - 240VAC

Up to 32-ch IP cameras access

Up to 1-ch@12MP/32-ch@D1 decoding capacity

Support face recognition and multi-objective recognition

Support 2 HDMI and 1 VGA interface

4 SATA hard disk each up to 16TB,

2 RJ45 10M/100M/1000M network interface

Plug & Play with 16 PoE interface

Support RAID /5/6/10

Smart search & playback

Support cloud upgrade

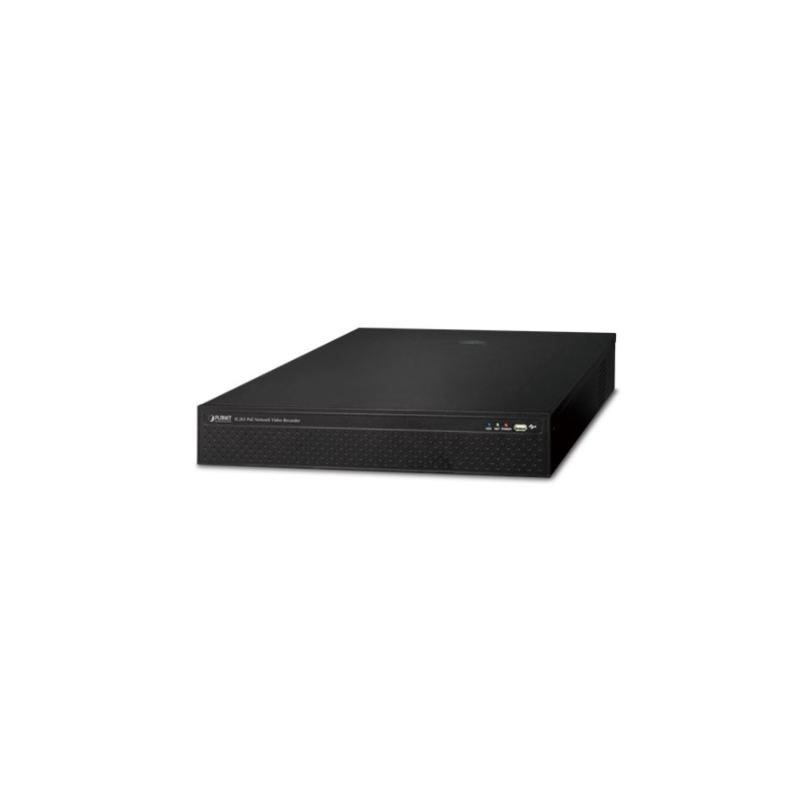

IP camera network recorder up to 25 cameras
Displays live video and records simultaneously
H.265 / H.264 / H.265 + / H.264 + video compression
Up to 4K ( 3840 x 2160) Viewing HDMI
Bandwidth Up to 120 Mbps
2-way audio - MIC input, audio output
1 x RJ45 1000Mbit upload port
16 x RJ45 100Mbit with PoE +
Power Budget is 200watt
room for 4 x 3.5" SATA III HDD / SSD Max. 32TB
HDD / SSD not included
1 x USB 2.0
16 x Sensor input, 4 x output
Event detection: Motion, Video loss, IP camera management
SNTP Time Protocol Time synchronization
TCP / IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTSP, RTCP, P2P network features

IP camera Network Recorder max. 4 camera
Acquisition network switch - preferably with PoE
Up to 8 MP IP camera for each channel
Video Compression: H.264
Plug Play
up to 4K HDMI and 1080 VGA output
up to 10TB HDD SATA - HDD / SSD purchased
play Smart search - play up to x64
E-MAP
External backup: USB stick, Samba , FTP, Google drive; Dropbox
Record mode: Manual, scheduled, alarm trigger, exercise
Supports iPhone, iPad, Android phone, CMS
Dimensions: 205 x 160 x 60 mm

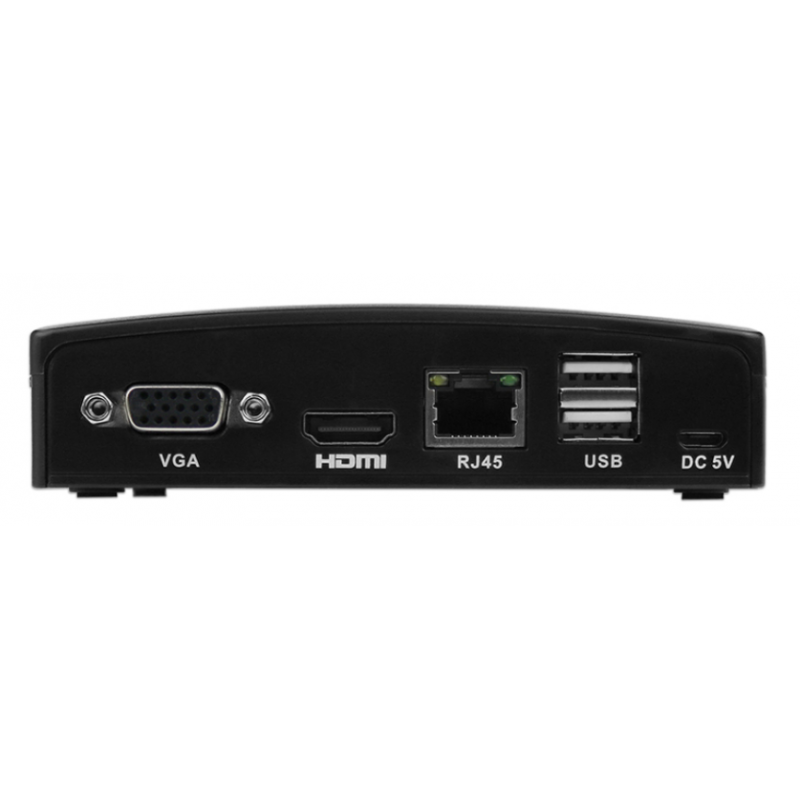

NVR supports Remote View with Mobile Phones (Android, iPhone)
For USB mouse
PAL/NTSC (Auto)
Dual Stream
Resolution: 5MP - 1MP
Monitor Resolution: 1280*1024, 1440*900, 1920*1080
Not Support 800x600 and 4K Monitor
Compression: H.264 and H.265
Display Split: 1/4
On-Board Storage: External Micro SD card, max 128GB (not included)
Cloud P2P
E-SATA Port - does not Supply Power
Support 6TB Max
Recording Storage: USB HDD, E-SATA HDD, TF CARD (not incl.)
Video Input: 4CH (4x5MP)
Audio Input: Audio input
Video Output: 1 x VGA +1 x HDMI
Network Port: RJ45, 10M/100M
Network Protocol: ONVIF
Temperature: -10 to 55 Degree Celsius
Humidity: 10％ to 90%
