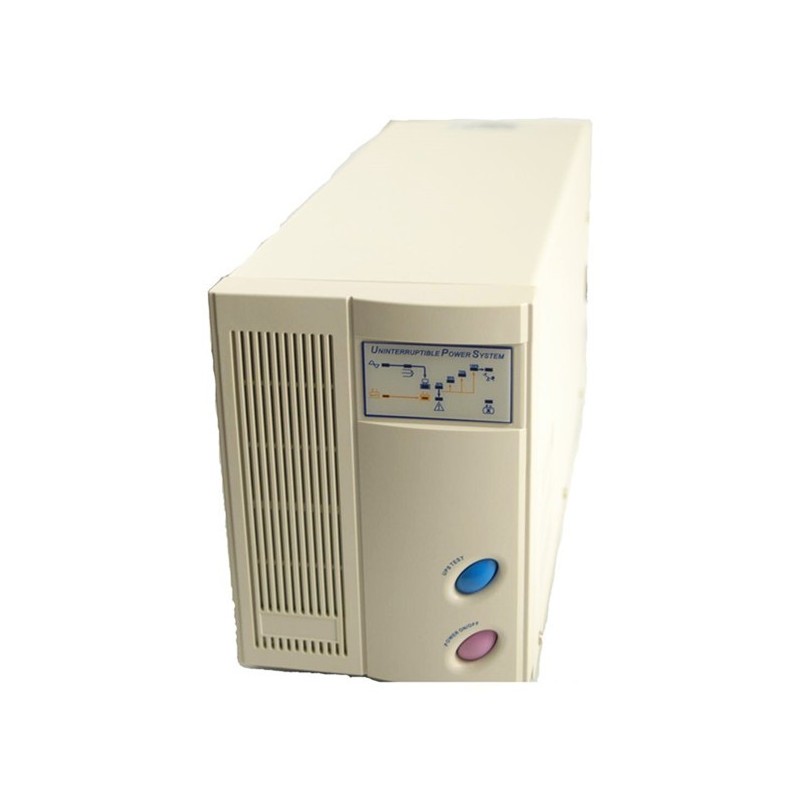

2500VA UPS, uninterruptible power supply - line interactive, incl. batteries. with RS232
Assembled before delivery! Usually in stock
2500VA UPS
Modified sine wave to 5 hours of recharging time
Alarm v. Low battery and overvoltage
Connector: 4 x IEC ed and 1 x IEC engrave.
1 x RS232 / DB9 female connector
Operating temperature: 0-40 °
Supports automatic shutdown via software download included. 4 x 12V / 12 Ah battery
8,541.26 NOK
Excl. VAT
Quantity
Physically in stock
Product number UPS2500I+SAM
Specifications
| Alarm | Bip hvert 3. sekund hvis batteri er aktivt, bip hvert sekund hvis batteriniveau er lavt og kontinuerligt bip ved overspænding |
|---|---|
| Batteri | 4 x 12 V 12 Ah |
| Beskyttelse | Mod over- og underspændinger, overbelastning og kortslutning |
| Genopladningstid | (90 %) 5 timer |
| Interface | RS232 serielport, DB9 hunstik. Ved backup tilstand kan der sendes signal via denne port |
| Software | Der medfølger software, der giver avanceret information, såsom ladestatus, ind- og udgangsspændinger, e-mail advarsel, skemalagt test af UPS og meget mere. |
| Spændingsform | Modificeret sinuskurve |
| Stik | 4 x IEC stik til udgang og 1 x IEC stik til indgang (standard pc spændingsforsyningsstik) |
| Støj | Under 40 dB (ved 1 meter) |
| Weight | UPS: 15 kg, batteripakke: 20 kg |
| Dimensioner | 197 x 143 x 408 mm |
Power failure often results in data loss to a greater or lesser extent. To achieve high data security is important to servers never shut down when data is treated - even if power fails. This UPS can most servers kept running in the time required to shut down the system properly. With 1 pc. battery pack has UPS runtime of approximately 6 minutes at full load. The operating time can be extended by using up to four battery packs (3 extra), a total of ca. 24 minutes of durability at 1500 W. Each battery pack delivers 2500 VA. Should servers or the entire network last longer, may be an emergency power generator with the UPS.
Andre produkter i samme kategori:
3 kVA / 2.4kW UPS with LCD Display. 19" Rack / Tower. True sine curve, incl. battery box for 6 pcs. 12V/55Ah. 10 hours w/200W
Top class 3.0 kVA / 2.4 kW online UPS / emergency power
Input: 110-300 VAC 40Hz-70 Hz
Output voltage: 230 VAC / 50Hz
LCD Display
Single phase
Genuine Sine Curves - gives less noise on the output voltage
Rack / Tower 2 in 1
Built-in input OVCD
Foot / stand or for rack mounting
1 x IEC 320 C20 Terminal (input)
4 x IEC 320 C13 (output)
Approvals: IEC 62040-1 (safety) IEC-62040-2 (EMC)
DC input
Incl. battery pack: 6 x 12V / 55Ah
31,587.27 NOK
Item Number: UPS-3KVA
3 phase 30kVA / 30kWatt On-line UPS, 3 x 400VAC, output 3 x 400VAC / 50Hz, no switching, sinus output
Top Class 3-phase 30.000VA / 30.000Watt Online UPS / back-up power
Input: 3 x 305 - 478VAC 50 / 60Hz
Output voltage: 3 x 380 - 415VAC 50Hz or 60Hz
backup time by 2 x extra Battery Bank: up to 30min at 50% load
LCD Display
three-phase
True sine wave - noiseless output voltage
Tower with Tower Battery Pack
Dimensions: 1000 x 815 x 300 mm
Weight: 225 kg
Call +45 56 66 20 20 for price
Item Number: UPS-30KVA-KL
6kVA / 5,4kW Professional UPS with add-on battery boxes. On-line and real sinus. Rack/Tower design. Power management etc.
Professional ON-LINE UPS. Life-critical equipment, Serverrum etc.
UPS is separate battery boxes with Hot-swappable battery design
Double-conversion UPS with noiseless output voltage
Select if the UPS should be installed in the rack or stand as Tower
Nominal input voltage: 200 - 240VAC at 100% load
Voltage range: 110 - 300VAC at 50% load
Output voltage: 200 - 240VAC (230VAC 50Hz)
On-line means that battery backup is always connected - no power switching
Each battery box contains 20 pieces. 9Ah batteries - must be purchased
Intelligent UPS with power management, communications ports, display and alarms
Dimensions: UPS and battery box: 606 x 438 x 133 mm (3U)
Noise level: Less than 58 dbA @ 1 m
Call +45 56 66 20 20 for price
Item Number: UPS-6KVA
500VA / 300W UPS for DIN rail, incl. 1 piece. 12V battery, line-interactive, 2-6 ms on time, True sine curve
UPS with DIN bracket for control panel, electrical cabinets, rack cabinet like.
Compact all-in-one to the DIN rail UPS 500VA / 300watt
Output voltage: 230VAC / 50Hz - genuine sine wave
Line-interactive means switching at power failure (2-6ms)
Nødforsynings time: 50% load for about 12 minutes
Noise level: Less than 40 dbA at 1 meter
output voltage is sine wave
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Battery: 1 pc. 12V / 7Ah - see manual for life
Dimensions: 250 x 135 x 115 mm | Weight with battery: 2.8 kg
Operating temperature: 0 - + 40 ° C
7,803.17 NOK
Item Number: UPS500DIN
600VA/240W UPS, emergency power supply, incl. 1 piece. 12V/7Ah battery, line-interactive, 2-6 ms switch-on time
Avoid data loss in the event of a power failure
Compact Tower UPS 600VA/240Watt
Line-interactive means switching on in case of mains failure (2-6ms)
Emergency supply time: 50% load for approx. 6 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine curve (stair step curve)
4 hour recharge time to 90% capacity
Auto restart when mains supply is re-established
Battery: 1 pc. 12V/7Ah - see manual for lifespan
Dimensions: 279 x 142 x 101 mm
Weight with battery: 4.2 kg
Operating temperature: 0 - + 40°C
1,592.06 NOK
Item Number: UPS600
1500VA/900W UPS power supply, incl. 2 pcs. 12V / 9aH battery, line-interactive, on time 2-6 ms, Simulated sine curve
To prevent loss of data during power failure
Compact Tower UPS 1500VA / 900Watt
Output voltage: 230VAC / 50Hz
Line-interactive means switching at power failure (2-6ms)
Backup time: 50% load for about 6 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine wave (staircase curve)
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Supports automatic shutdown via software
Battery: 2 pcs. 12V / 9Ah - see manual for life time
Dimensions: 320 x 182 x 130 mm
Weight with battery: 10.6 kg
Operating temperature: 0 - + 40 ° C
2,698.41 NOK
Item Number: UPS1500
1000VA/600W UPS power supply, incl. 2 pcs. 12V/7Ah battery, line-interactive, on time 2-6 ms, Simulated sine curve
To prevent loss of data during power failure
Compact Tower UPS 1000VA / 600Watt
Output voltage: 230VAC / 50Hz
Line-interactive means switching at power failure (2-6ms)
Battery time: 25% load for about 18 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine wave (staircase curve)
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Supports automatic shutdown via software download USB and RJ45 port, touch display
Battery: 2 pcs. 12V / 7Ah - see manual for life
Not suitable for printers and scanners
Dimensions: 320 x 182 x 130 mm
Weight with battery: 8.2 kg
Operating temperature: 0 - + 40 ° C
3,312.70 NOK
Item Number: UPS1000I
