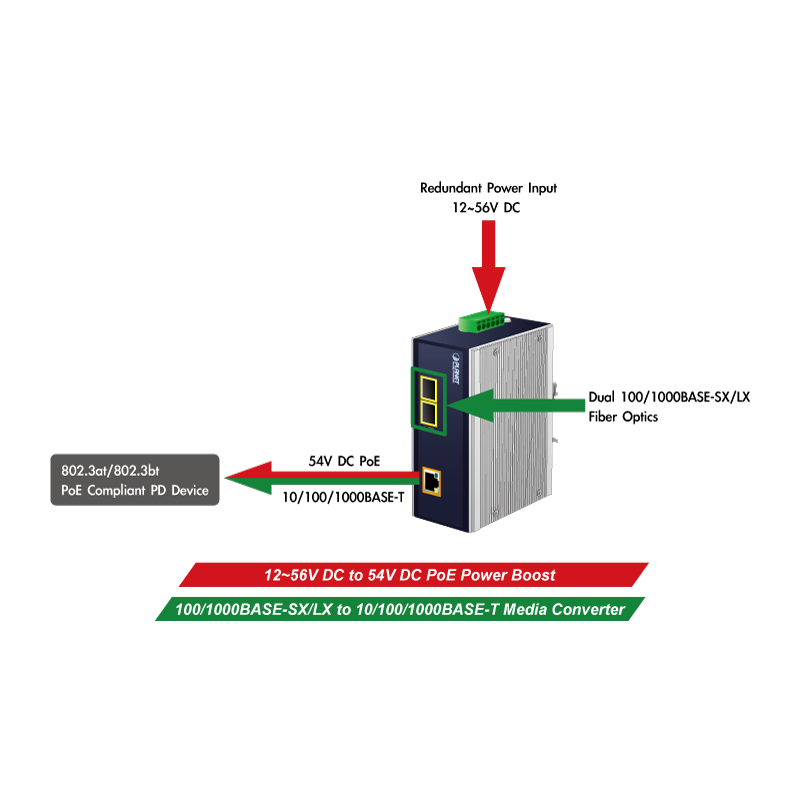

Media converter RJ45 to 2 x fiber. RJ45 10/100 / 1000Mbit: Fiber 2 x SFP slot 100 / 1000Mbit, single mode or multimode, PoE ++

10Gbit fiber the RJ45 Media converter
For Single Mode or Multi Mode SFP module
Extended temperature range
1 x RJ45 10G/5G/2.5G/1G/100M BASE-T
1 x 10GBASE-SR/LR SFP slot
The SFP module is standard with an LC connector
Additional SFP module
Supply voltage: 12 - 48VDC
PSU not included
Operating temperature -40 to +75°C
YOUR bracket

IEEE 802.3 / u / ab 10/100 / 1000BaseT
IEEE 802.3z 1000BaseX
Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI / MDIX in TP Port
Auto Negotiation in TP Port
Flow Control
Link Alarm
Auto & amp; Force Mode Configuration
Dimensions: 71 x 94 x 26 mm for DC5 V, 1.5 A

1 x 10/100/1000Mbit RJ45
1 x 1000Mbit SFP (only for Gigabit SFP modules)
up to 80km with Single Mode fiber
up to 550m with Multi Mode fiber
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
BIDI with LC or with SC (Simplex fiber)
Purchase additional Gigabit SFP modules.
up to 100m with Cat.5e or Cat.6
5% to 95% humidity
5VDC power supply included
-0°C to +70°C

Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm

Media converter for 100Mbit Multi Mode Fiber SC
RJ45 10/100Mbit
Fiber 100Mbit 62.5/125my and 50/125my
-40 to +75°C
12 - 48 VDC Redundant PSU input

WDN media converter for 1-core fiber, Singlemode SC.
1 x RJ45 10/100 / 1000Base-TX | 1 x 1-core (simples) single mode fiber with SC
Must be used with ETH-RJ45G-WDM SA
Up to 15 km
WDM wavelenght-division-multiplexing - only for simplex fiber cable
Must be WDM converter at both ends of the fiber

10/100 / 1000Base-TX to 1000Base-LX single mode, 15 km
WDM Wavelength Division Multiplexing - Simplex fiber cable only
Must be WDM converter at both ends of the fiber.

100/1000Mbit fiber media converter RJ45
1 x RJ45 10/100/1000Mbit BASE-T
1 x SFP slot 100 / 1000Mbit BASE-X dual mode
Supports WDM SFP modules (Bi-Directional data 1 on fiber)
WDM SFP module have wavelengths 1310nm and 1550nm
IEEE 802.3 / 802.3u / 802.3ab / 802.3z
IP30 metal housing
DIN rail and wall mounting design
Supply voltage: 12VDC to 48VDC polarity protected
AC supply voltage: 24VAC / 50Hz
PSU not included
Operating temperature: -40°C to +75°C
