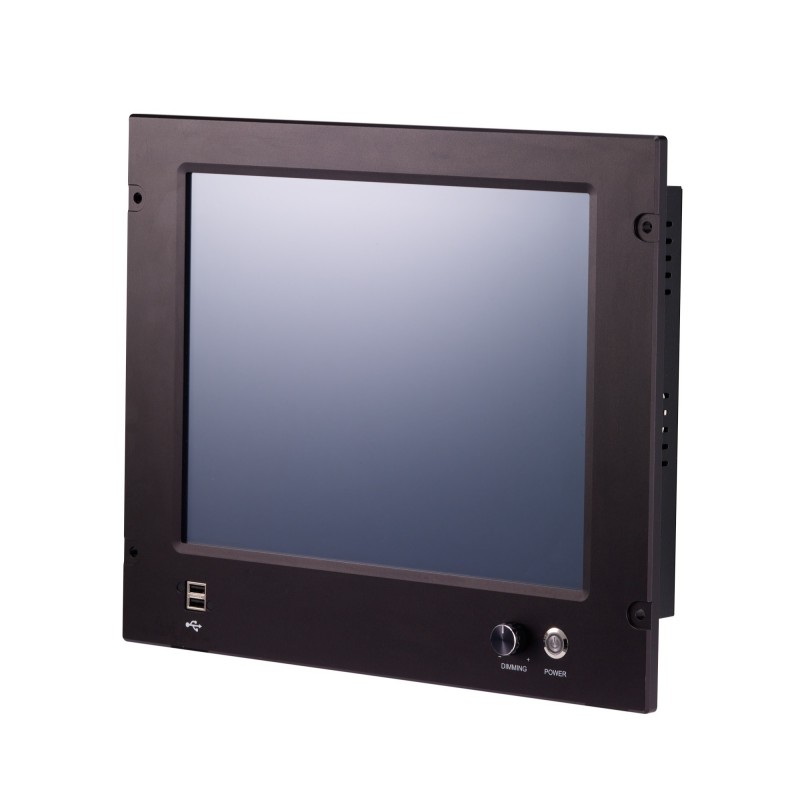

15 Inch Marine Panel PC with Intel H310, IP65, 8GB RAM DNV
15 Inch Marine Panel PC with Intel H310, IP65, 8GB RAM DNV
Previous
Next
15 Inch Marine Panel PC with Intel H310, IP65, 8GB RAM DNV
15 Inch Marine Panel PC with Intel H310, IP65, 8GB RAM DNV

15" Marine Panel PC i3 9Th Gen. 8GB RAM, 128GB SSD, IP65 front

Marine panel PC

(9th Gen Intel CPU, Windows 10, windows 10 Pro Embedded).

It has 1024 x 768 pixels visible resolution, which is designed and tailored for use

in operator display and computer operating systems such as IAS, ICMS, FAMS, AMS, EMS, BWTS, VRCS etc.

MIL Qualified Product from Military test rules

Anti-Glare and Anti-Reflective TFT LCD Technology

LED Backlight Technology

Tempered Glass for Panel Protection

Long-Term Lifecycle Management

Call +45 56 66 20 20 for price
Quantity
LÆG I KURV
Product number IPP15-IP65M
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel Core i3 2310M 2.5GHz CPU
Chipset Intel QM67<br>Intel® H310 Express Chipset
USB 2 x USB 2.0 Front, 4 x USB 3.2 Rear
Serial 2 x Com (COM1: RS-232/422/485, COM2: RS-232 Only) 1 x Com (Com3: RS-422/485, Terminal Block)
Operating Temp. Temperature – Operation 0-70°C, Storage -30-70°C<br>0° til 60° C
Drev 1 x 2.5” SATA harddisk eller SSD Monteret med 128GB SSD Harddisk
Hukommelse 2 x 204-pin DDR3 SO-DIMM Maks. 8 GB Monteret med 4GB RAM
IP-Tæthed IP 65 Front
Kabinet Stålkabinet og IP65 tæthed i fronten
Kontrast 1000:1
Luftfugtighed Up to 95%
Mål og vægt 5.55 kg
Netværk 1 x Intel 82579L 10/100/1000 Mbit Ethernet m/RJ45-stik 1 x Realtek RTL811C 10/100/1000 Mbit Ethernet m/RJ45-stik<br>2 x Realtek® PCIe Gb LAN RTL8111H
OS SUPPORT Understøtter Windows XP, 7/8 embedded 7 samt Server 2008. Linux Ubuntu 10.x<br>Windows 10 Pro Embedded
Porte 1 x RS232, 1 x RS232/422/485 alle med DB9 hanstik
Skærm 15” TFT, 1024 x 768 resistive touch
Strømforsyning Indbygget 100-240VAC strømforsyning
Synsfelt 304.128 H x 228.096 V mm
Tastatur/mus Via USB porte
VGA Integreret Intel HD 3000 grafikkort i CPU med HDMI, DP og DB15HDF VGA-stik
Display 15″ XGA Color TFT LCD
brightness 350 cd/m²
Dimensioner 330 x 402 x 80 mm<br>402W x 331.5H x 83.3D mm
Certification ABS, DNV, KR, LR, IEC 60945

15” Core i3 panel pc med IP65 tæt front, godkendt til marine brug

Kan også leveres i en version der kan forsynes af 18 til 36 Volt DC

Kontakt vores salgsafdeling for priser og mere information

Andre produkter i samme kategori:

304L stainless steel wall mount for food processing, VESA MOUNT 75/100, TFT mount, panel pc mount
Wall mount VESA bracket VESA 75/100 stainless steel 304 monitor or Panel PC wall bracket

Stainless Steel 304

Industrial Design

VESA 75/100

2-axis movement

3,015.87 NOK
Item Number: MON-VESA-STEEL
Physically in stock
ADD TO CART
Quick view
19" i5 ECDIS DNVGL-CG-0339, IACS E10 Marine approved Panel PC
19" i5 ECDIS DNVGL-CG-0339, IACS E10 Marine approved Panel PC, 24VDC

19" 1280 x 1024 Marine approved Panel PC
Projective multitouch screen PCAP
Marine standard: DNVGL-CG-0339, IEC60945 4th. IACS-E10
Intel Core i5-5200U 2.2GHz
4GB RAM, 128GB SSD (mSATA) Dual ethernet
Supports Win 10 IoT Enterprise (must be purchased separately)
2 x USB 3.0, 1 x USB2.0
1 x RS232 (RS422/485)
2 x RJ45
Option: 8 ch DI/DO (additional purchase)
Option: 4 x NMEA 0183 port (additional purchase)
Supply voltage: 24VDC / 65Watt
DC input: 9 - 36VDC
Dimensions: 429 x 382 x 73 mm
Weight: 7.8 kg

Call +45 56 66 20 20 for price
Item Number: IPP19IDNV
ADD TO CART
Quick view
Waterproof panel PC with multi-touch to slaughterhouses Medico technique, food industry
10.1" Fanless Panel PC IP66 / 69K near the front and back. Multi-touch

10.1 " TFT LED panel with Capacitive touch display
Intel® Pentium® N4200
System memory max 8G SDRAM
Internal SATA 2.5" HDD and m.2 2242 socket
M12 Connectors 1 GbE LAN, 1 2xUSB2.0, 1COM
VESA and Yoke mounting
9~36 V DC Power Input Connectors (Waterproof switch)
-20~60° C Operating Temperature

Call +45 56 66 20 20 for price
Item Number: IPP10.1IP66F
ADD TO CART
Quick view

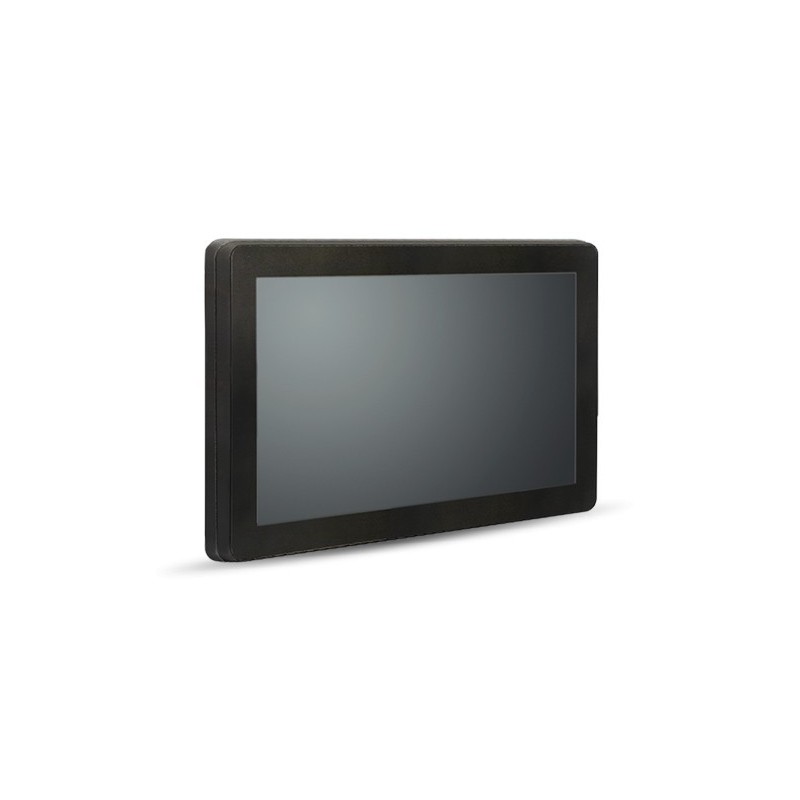

18.5\" Panel PC til bla. Marine Brug. IP68 alle sider, Wide Screen ...
18.5 "Panel PC for Marine Use. IP68 All Pages, Wide Screen with Touch, High Brightness 1000nits for Sunlight

Barbone
18.5 "wide LCD, 1366 x 768, 1000nts
Fanless design
3rd Gen. I3 / I5 / I7 Intel® mobile processor support
Resistive touch screen
4 USB < br> 2 LAN
IP68
Wide range DC 15 ~ 35V input

Call +45 56 66 20 20 for price
Item Number: IPP18.5IX-IP68
ADD TO CART
Quick view
10.1" waterproof Panel PC for the food industry and medico
10.1" Panel PC full IP66/IP69K celeron 2930 4GB RAM, 32GB MLC SSD

10.1” Stainless Steel Panel PC
350 cd/m2
Intel Celeron N2930 1.83 GHz Onboard Processor
8GB Onboard DDR3L SDRAM max. 8GB total
Flat front frame Design
grade 304 stainless steel housing (Grade 316 is Option)
IP66 / IP69K Rated with M12 connector
Support resistive touch, expected capacitive touch, and Glass Touch
on / off button on the side Edge for hygienic cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
OPTION HIGH BRIGHTNESS 1000cd/m2

Call +45 56 66 20 20 for price
Item Number: IPP10.1IP65F2
ADD TO CART
Quick view

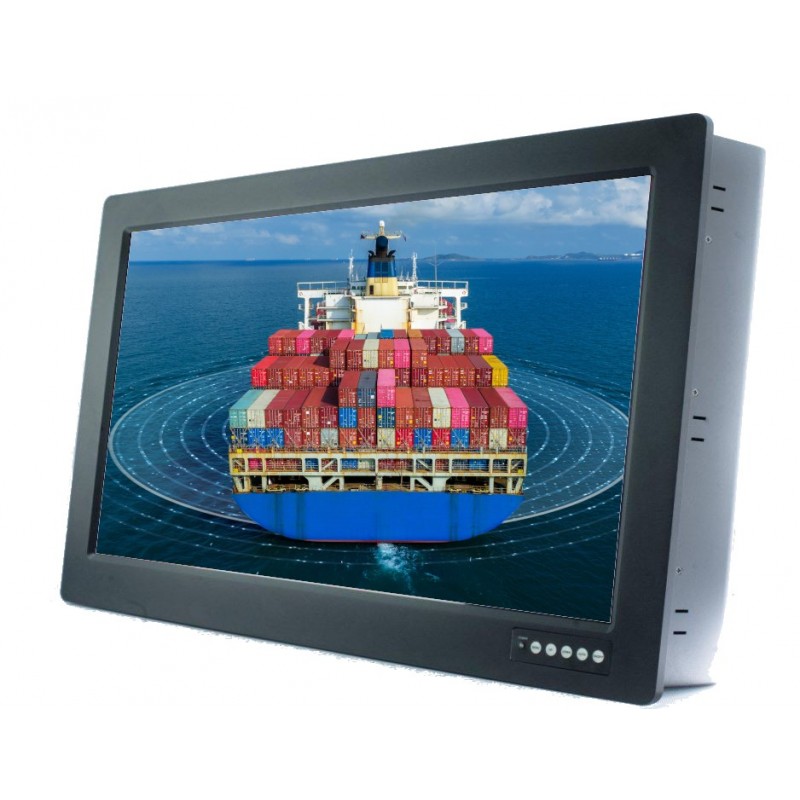

15.6" PanelPC Marine DNV Approved: Get Certified Quality for Your Marine Applications
Panel PC 15.6" Intel® N2930 Marine DNV approved

15.6", 16 : 9 ratio
Resolution: 1920 x 1080
CPU: Intel® N2930
Ram: 4GB (8GB option)
120GB SSD
3xRS232/485/422
2xUSB3.0, 2xUSB2.0
Mounting: Panel mount, VESA 75x75
Front: IP65 Back: IP22 (all side option)
DC input: 9~32V
Operating temp.: 0°C to +60°C
DNVGL and IEC60945

Call +45 56 66 20 20 for price
Item Number: IPP15.6DNV
ADD TO CART
Quick view
Previous
Next
