Intel® Core™ i7-1255U (Alder Lake, 10 cores / 12 threads, 1.7GHz up to 4.7GHz)
Intel® Iris® Xe Graphics – supports 4× HDMI 2.0 (4K output)
DDR4 SO-DIMM – up to 64GB RAM
1× M.2 NVMe SSD
1× SATA3.0
Network:
1× Intel® i225 (2.5GbE)
1× Intel® i219 (1GbE)
PXE boot supported
Serial ports: 6× RS232 (COM)
4× USB3.2
4× USB2.0
Audio: 1× Mic-in, 1× Line-out
Expansions: 1× M.2 slot for Wi-Fi (Intel® CNVi), 1× external antenna
Case: aluminum, passive cooling, silver color
Dimensions: 255×220×60 mm, weight 1.6 kg
Operating temperature: -20°C to +60°C (requires special RAM and SSD)
Power supply: DC 19V
OS Support: Windows 10/11 and Linux 64-bit
Can be configured with desired RAM, SSD and operating system, contact us
| Memory Type | DDR4 |
|---|---|
| Max. Memory Capacity | 64 |
| Power Input | DC 19 |
| Antal Video Udgange | 4 |
| Antal LAN Porte | 2 |
| Antal USB | 8 |
| Antal Serial | 6 |

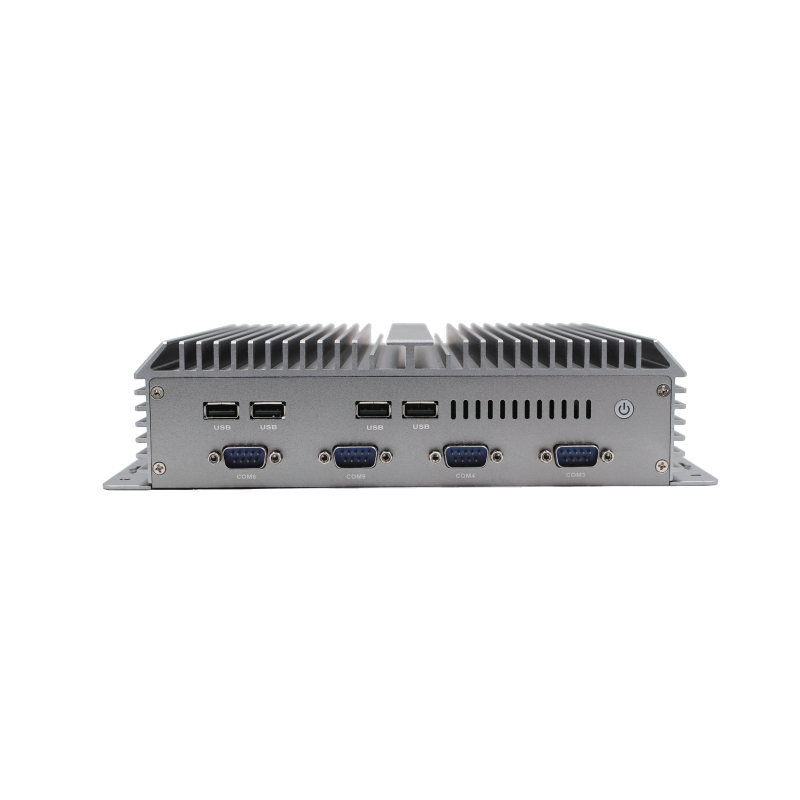

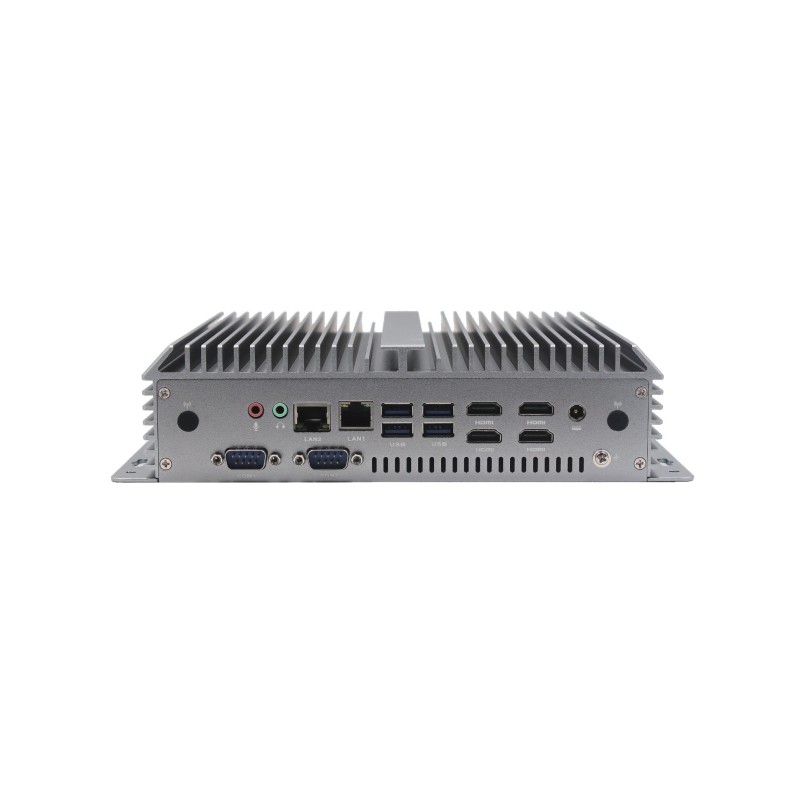

Compact, quiet and powerful industrial PC based on 12th generation Intel® Alder Lake architecture .
Designed for demanding applications where stability, performance and maintenance-free operation are essential. The fanless brushed aluminum design ensures efficient heat dissipation and long service life – ideal for 24/7 operation in industrial environments.
