4 Ports PoE Switch / PoE Injector 60 Watt per port. PoE 48 or 56VDC. Gigabit. 1 XRJ45 Uplink, 4 x RJ45 PoE port.

4 x RJ45 port with PoE ++ (Ultra PoE)
1 x RJ 45 Uplink port (not PoE).
60W for every PoE-Port
Power Budget is 120 watts
IEEE 802.3at / by PoE.
Dip on / off PoE
Power supply: 100 - 240VAC
Operating temperature: 0 - +40°C

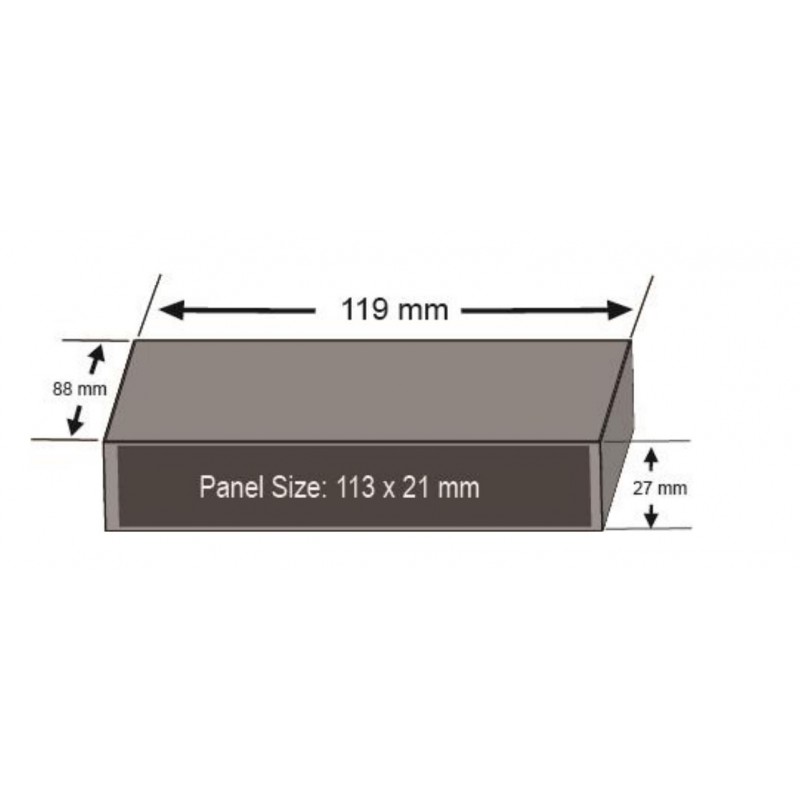

Size: 119 x 88 x 27 mm
Weight: 1.3 kg

2,907.93 NOK
Excl. VAT
Quantity
LÆG I KURV
Product number ETH-POE-DIP-4X1G
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. 0° ~ 40°C
Buffer 12Kbyte
Pin 1/2(+), 3/6(-), 4/5(+), 7/8(-)
PoE Per Port 48V or 56V DC, Max. 60 watts
Porte 5 x GE ports Auto-MDIX, 4 x ports PoE / PoE+ (Ultra PoE)
Standarder IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Dimensioner 119 x 88 x 27 mm

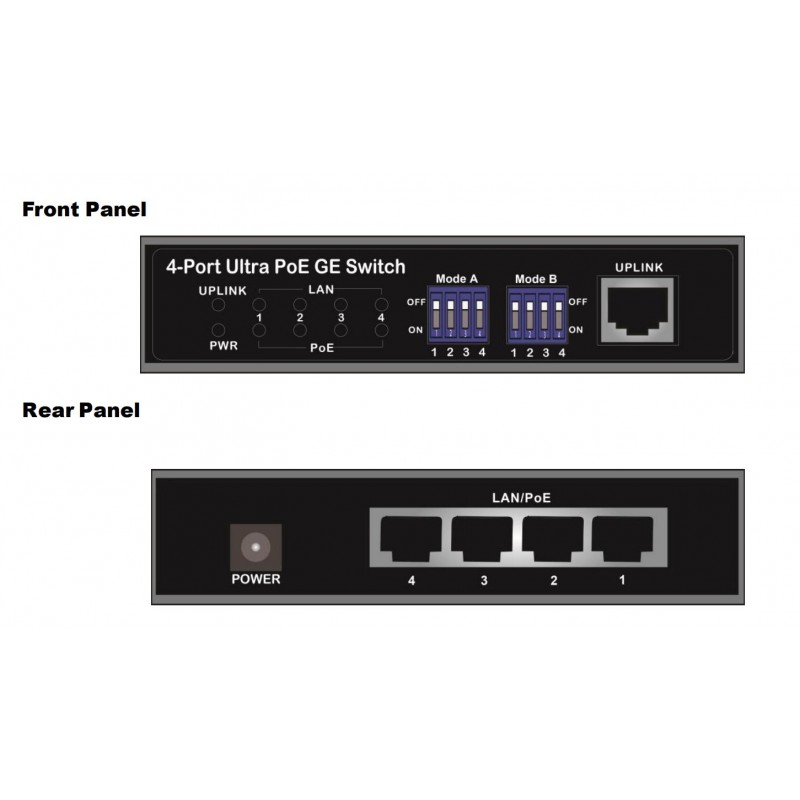

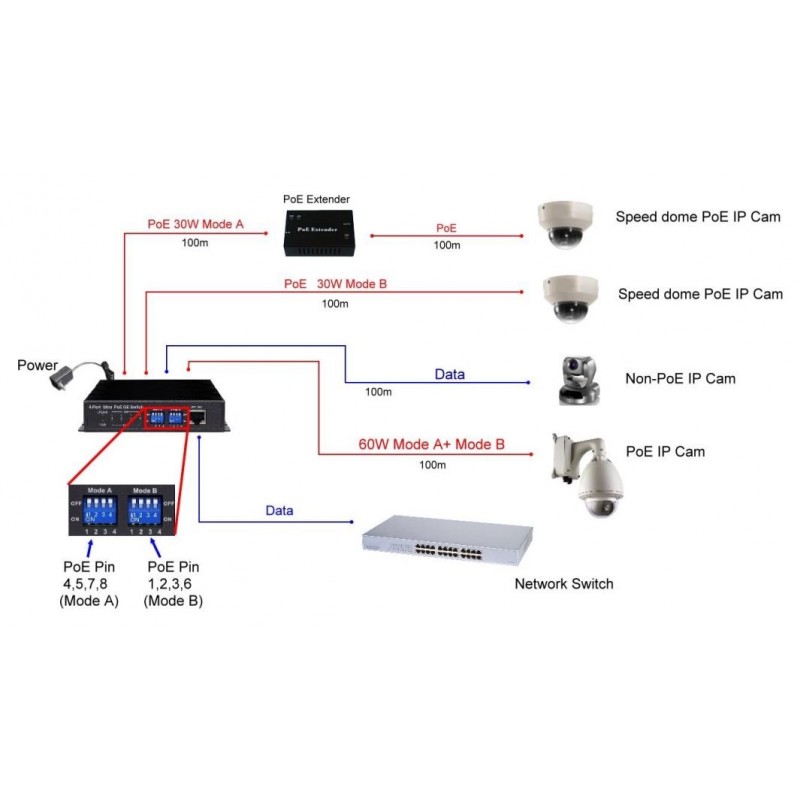

Eth-Poe-DIP-4X1G is 5 Ports Gigabit Switch with 4POPR Ultra PoE where each POE port can deliver 60W power over network cable to 100 meters. It is suitable for IP cameras with POE power consumption of more than 30W. Easy configuration via DIP switche, Eth-Poe-DIP-4X1G provides 2 POE options: Mode A (PoE via PIN 4.5,7,8) or Mode B (PoE via PIN 1,2,3,6) for IEEE 802.3 AT / by POE standard or ultra 60W POE if both DIP switches are in ON position for specific port. Ultra 60W PoE works with PoE Extender or Repeater to get more power to the overall PoE Power distribution for the Poe IP cameras who are attractive.
