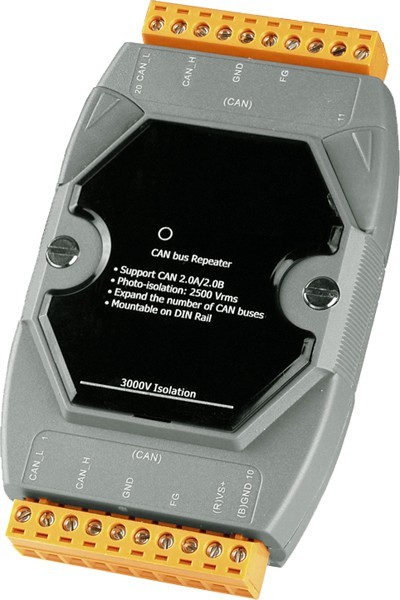

ICPDAS I-7531-G is an optoisolated CAN bus repeater. Amplifier and restores correct pulse shape
ICPDAS I-7531-G is an optoisolated CAN bus repeater. Amplifier and restores correct pulse shape
Previous
Next
ICPDAS I-7531-G is an optoisolated CAN bus repeater. Amplifier and restores correct pulse shape
ICPDAS I-7531-G is an optoisolated CAN bus repeater. Amplifier and restores correct pulse shape

CAN bus repeater. Amplifier and restores correct pulse shape. Up to 800kbps. Opto-isolated. DIN bracket.

CAN Bus Booster
CAN specification 2.0A and 2.0B
ISO 11898-2 standard
Max. Baudrate: 800 Kbps
Jumper for 120Ω Terminal resistance on the CAN bus
2 CAN channels
Automatic Baud Rate
Up to 100 nodes on each CAN port
Removable terminal block
DIN bracket
Supply: 10 - 30vdc

Call +45 56 66 20 20 for price
Quantity
LÆG I KURV
Product number M485-CAN-I+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Forsyning 10 – 30 VDC via skrueterminal. Strømforsyning købes som tilbehør
Isolation Optisk isolation: 2 kV
Dimensioner 72 x 118 x 33 mm (H x B x D)

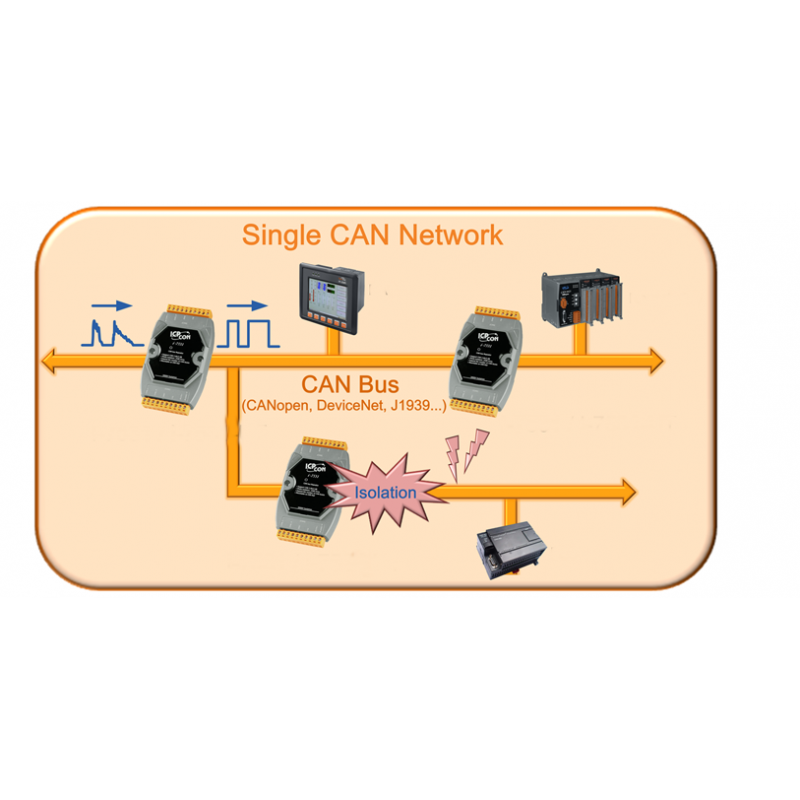

Opto-isolated can-repeater that can be used to establish a physical coupling of 2 CAN bus segments. This module is designed to insulate noise and disturbances between the two CAN ports. When the CAN signal is distorted due to the bad / long can-arch cable, this module can restore the shape of the CAN signals to the original. The module can automatically adjust the baud rate in itself to match the CAN network. Users just connect the module to CAN buses, check the terminal resistor and turn it on, after which it makes it possible to work normally.
